ETM – 4 1-2in – Template – T-524

Template No. T

524

Rev. '96

SIZES: 4 1/2 x 4, 4 1/2 x 4 1/2

ETM MAXIMUM ELECTRICAL RATING SWITCH VOLTS 48V DC/AC AMPERES 1.0A CONTACT THROUGH WIRE VOLTS 48V DC/AC

3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)

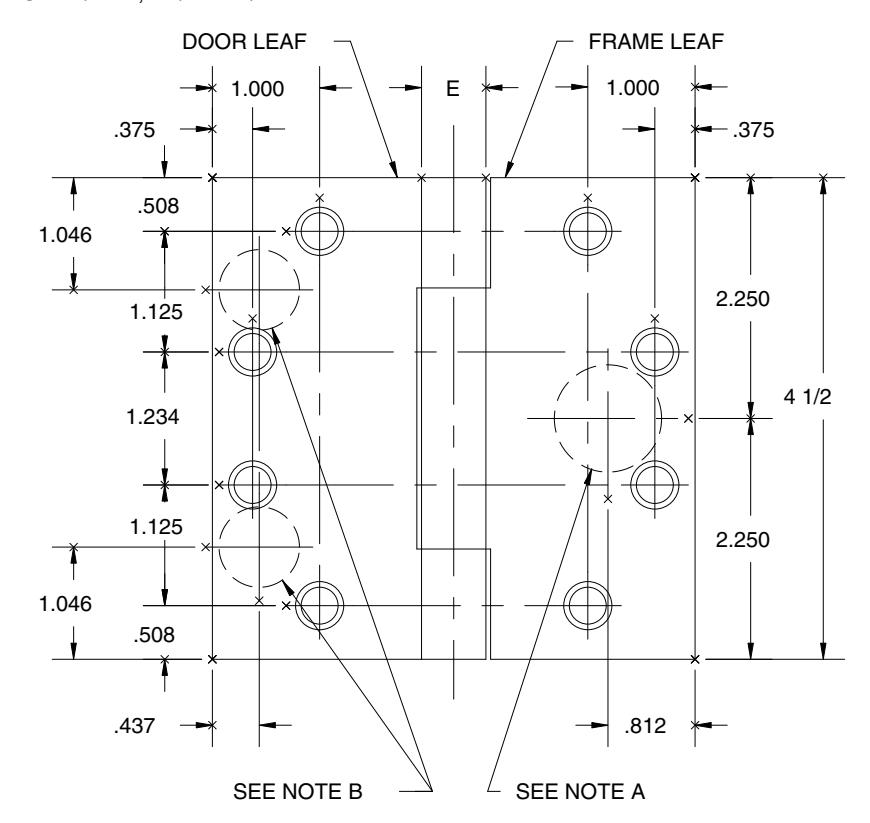

DRILLING INSTRUCTIONS

NOTE A:

AMPERES

DRILL AND DEBURR Ø 1" HOLE IN FRAME REINFORCEMENT FOR THROUGH WIRES.

NOTE B:

• 1. NON-HANDED INSTALLATION-DRILL AND DEBURR TWO (2) 3/4" HOLES IN DOOR REINFORCEMENT PLATE FOR THROUGH WIRES.
• 2. RIGHT HAND INSTALLATION-DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON BOTTOM LEFT.
• 3. LEFT HAND INSTALLATION-DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON UPPER RIGHT.

-DO NOT SCALE-

CATALOG NUMBER			(F) DISTANCE FROM EDGE OF LEAF TO		EDGE OF LEAF TO
	NON-		(E)	SWAGE LINE	I
STEEL	FERROUS	METAL	KNUCKLE
HINGES	HINGES	GAUGE	DIAMETER	4 1/2 x 4	4 1/2 x 4 1/2
AB700-ETM	AB800-ETM	.134	39/64	1 5/8	1 7/8
AB750-ETM	AB850-ETM	.180	45/64	1 9/16	1 13/16

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS. MISSOURI 63157-0300
