TRICON - FULL MORTISE TEMPLATE HINGES ELECTRIC THROUGH WIRE AND MONITOR TYPE ETM

SIZES: 114.30 x 101.60, 114.30 x 114.30

ETM MAXIMUM ELECTRICAL RATING SWITCH

VOLTS 48V DC/AC AMPERES 1.0A

CONTACT THROUGH WIRE VOLTS 48V DC/AC AMPERES

3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)

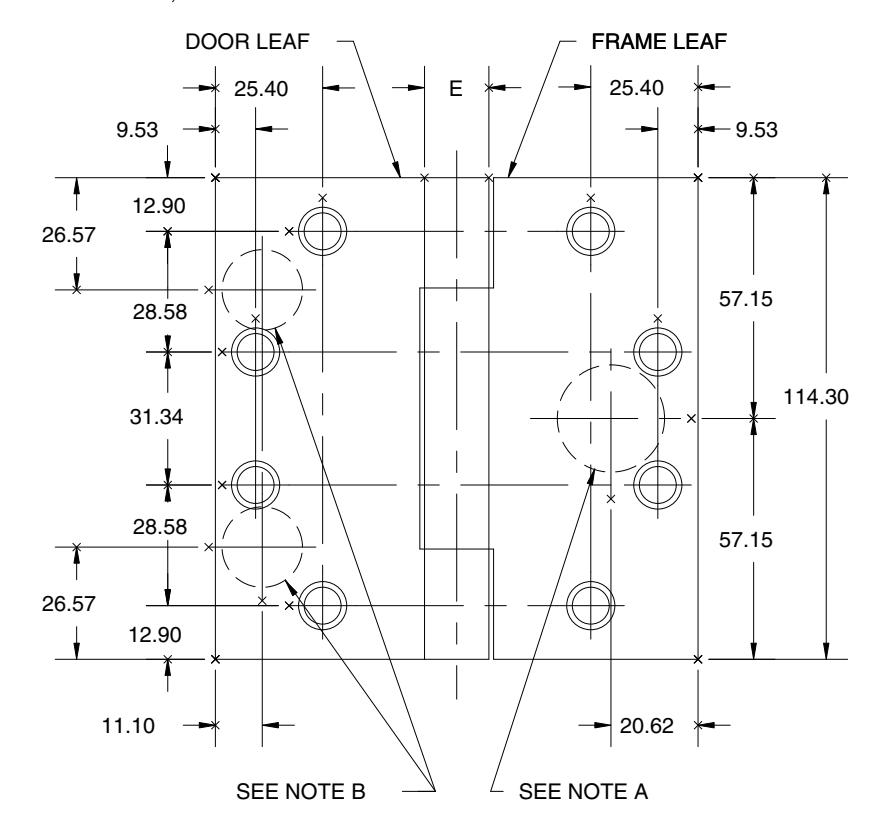

DRILL AND DEBURR Ø 25.40 mm HOLE IN FRAME REINFORCEMENT FOR THROUGH WIRES.

1. NON-HANDED INSTALLATION-DRILL AND DEBURR TWO (2) ø 19.05 mm HOLES IN DOOR REINFORCEMENT PLATE FOR THROUGH WIRES.
2. RIGHT HAND INSTALLATION-DRILL AND DEBURR Ø 19.05 mm HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON BOTTOM LEFT.
3. LEFT HAND INSTALLATION-DRILL AND DEBURR Ø 19.05 mm HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON UPPER RIGHT.

-DO NOT SCALE-

CATALOG NUMBER				(F) DISTANCE FROM EDGE OF LEAF TO
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE	(E) KNUCKLE DIAMETER	SWAGE LINE 114.30 x 101.60	114.30 x 114.30
AB700-ETM	AB800-ETM	3.40	15.48	41.28	47.63
AB750-ETM	AB850-ETM	4.57	17.86	39.69	46.04

ALL DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS. MISSOURI 63157-0300
