Installation Instructions for all ETH/ETM Models

Applications:

The ETH and ETM hinges are used to pass low voltage power and/or signalling from a door frame to the door in order to power locksets, exit devices and door monitoring devices such as door position switches, request-to-exit switches, etc. ETM (Energy Transfer Monitor) hinges additionally provide a door position sensor in the hinge itself. The quantity and required gauge of wire depends on the hardware being used and the general purpose of the application.

Door Preparation:

The wire chase should be drilled with a 3/8'' drill bit at the point noted on the hinge template. The ETH/ETM hinge should always be positioned as one of the center hinges on the door, since the modified hinge no longer meets manufacturers load bearing specifications. A starter hole of 3/4" Diameter x 1- 1/2" deep is recommended for positioning the hinge wire (see note #1).

Frame Preparation:

Mark and drill hole to receive the wires from the ETH hinge (see note #1).

Warnings:

• 1. Be careful not to pinch wires when securing the hinge.
• 2. Do not allow the hinge to dangle by the wire during installation.

Notes:

• 1. In fire rated conditions be sure to confirm the maximum starter hole diameter and depth with the appropriate testing agency.
• 2. Steel based hinges are for interior use only. Use stainless steel or brass based hinges for exterior installations

Monitor Adjustment and Specifications (if applicable):

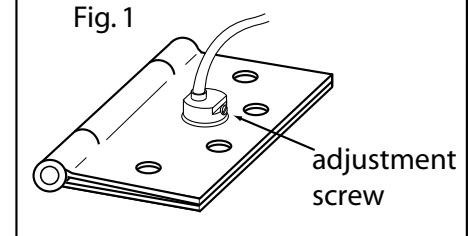

Clockwise wider gap, Counterclockwise narrow gap. (Fig. 1)

Hinge is adjusted with a 1/4" gap from factory which equates to the door opening 1-1/2" for a 3' door and 2" for a 4' door before triggering the monitor switch.

ETM Wiring Code:

Mechanical Switch

Switch Ratings:

Electrical:

In-rush Current:

Yellow/Black · White: Common (C) Blue/White: Blue:

Magnetic Switch

Normally Open (NO) Red/White: Black: Normally Closed (NC)

50-100 mA, 30VDC

NC & NO: 0.5 A max

Command Access Monitor Model

Electrical Specifications (Maximum Continuous rating):

			Minos Good		Sold Sold Sold Sold Sold Sold Sold Sold
Command Access Model		žino Žino	in	19	Sa Sala
	ETH2W	2	20	4.0	16.0
	ETH4W - ETH6W	4-6	26	1.0	N/A
	ETH8W - ETH12W	8-12	28	1.0	N/A
	ETH2WH	2	18	5.0	16.0
	ETH4WH - ETH6WH	2	18	5.0	16.0
		2-4	26	1.0	N/A
	ETH8WH - ETH12WH	2	20	4.0	16.0
		6-10	28	1.0	N/A

		_ ~ _	_ ~
-	ETM	|- |	-	- |	- |
	ETM2W	2	20	4.0	16.0
	ETM4W - ETM6W	4-6	26	1.0	N/A
	ETM8W - ETM12W	8-12	28	1.0	N/A
	ETM2WH	2	18	5.0	16.0
	ETM4WH - ETM6WH	2	18	5.0	16.0
		2-4	26	1.0	N/A
	ETM8WH	2	20	4.0	16.0
		6	28	1.0	N/A

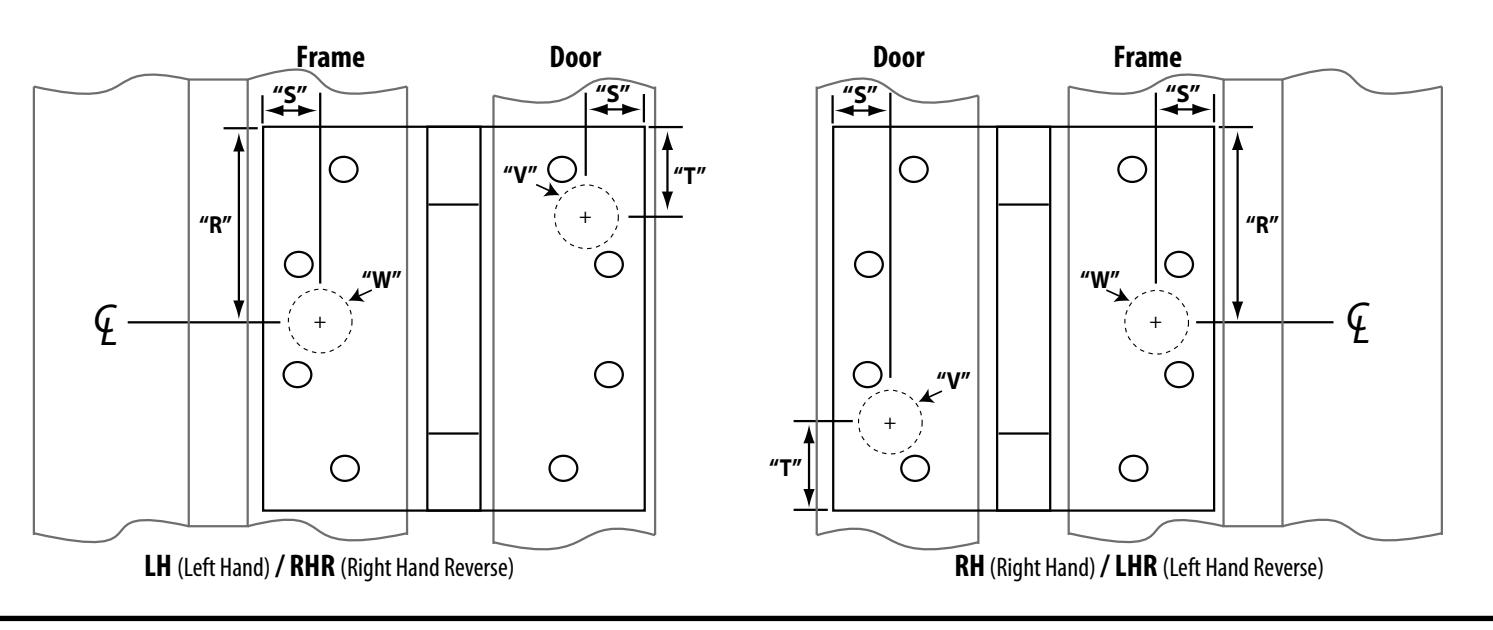

Hinge Template

• 3 Knuckle Standard Weight
• 3 Knuckle Heavy Weight
• 3 Knuckle SwingClear Standard & Heavy Weight Template: HT370-01

Hinge Size

3 Knuckle Standard Weight 3 Knuckle Heavy Weight All 3 Kunckle SwingClears

	R	S	T	V	W
4-1/2" x 4"	2-1/4"	5/8"	1-1/16"	3/4"	7/8"
4-1/2" x 4-1/2"	2-1/4"	5/8"	1-1/16"	3/4"	7/8"
4-1/2" x 5"	2-1/4"	5/8"	1-1/16"	3/4"	7/8"
4-1/2" x 6"	2-1/4"	5/8"	1-1/16"	3/4"	7/8"
5" x 4"	2-1/2"	5/8"	1-1/8"	3/4"	7/8"
5" x 4-1/2"	2-1/2"	5/8"	1-1/8"	3/4"	7/8"
5" x 5"	2-1/2"	5/8"	1-1/8"	3/4"	7/8"
5" x 6"	2-1/2"	5/8"	1-1/8"	3/4"	7/8"
