ETH-1ETM-1 Series Transfer Hinges
Open the original PDF document
View PDFEnergy Transfer Hinges
ETH-1-4W
DynaLock ETH-1 Series Energy Transfer Hinges and ETM-1 Series Energy Transfer Monitor Hinges provide the ideal method of passing low voltage power from the hinge jamb to an electrified lockset or ELR exit device. They feature center-located wire access holes, nonconductive wire access caps and are UL Listed for use on fire doors. Both Series' may be ordered in either 2 or 4 wire configurations, with the ETM-1 additionally including a builtin SPDT monitor switch, for door position status reporting. All models are supplied as a 5-knuckle, standard-weight, 4.5" x 4.5" full-mortise hinge.
| MODEL | PRODUCT | FINISH | WEIGHT |
|---|---|---|---|
| ETH-1 | Energy Trasfer Hinge | 626 (US26D) | 1.5 Lbs. |
| ETM-1 | Energy Transfer Monitor Hinge | 626 (US26D) | 1.5 Lbs. |

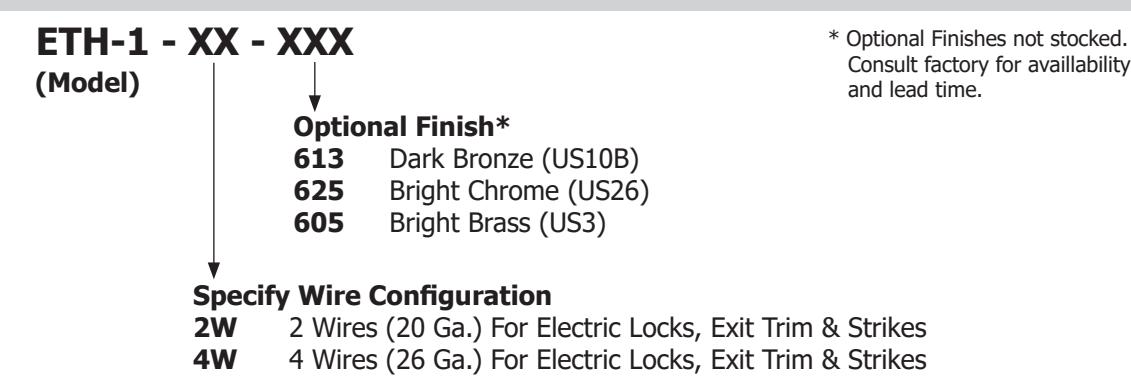

MODEL SELECTION
ELECTRICAL SPECIFICATIONS
|
Wire
Configuration |
Wire
Qty. |
Wire
Gauge |
Continuous
Amps @ 24VDC |
Surge/Pair (0.5 Sec)
Amps @ 24VDC |
|---|---|---|---|---|
| 2W | 2 | 20 | 4.0A | 16.0A |
| 4W | 4 | 26 | 1.0A | N/A |
ETM-1 monitor switch contact rating: 100mA @ 30VDC
