ET26 Series

The easier and more affordable solution

The Command Access ET26 exit trim is perfect for stairwell conditions or applications. The ET26 work with the Command Access PD25 RIM/SVR exit devices, Cal Royal 7700 RIM/SVR exit devices, & Von Duprin 98/99 RIM/SVR/ CVR exit devices. The ET25 is the electrified version.

LEVER TRIM:

FINISHES:

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

Models Available

COMPLETE TRIM FOR COMMAND ACCESS PD25

Schlage C compatible cylinder included. Retrofits Cal-Royal 7700 series. R/SVR version retrofits Von Duprin 98/99 RIM/CVR/SVR. Handing Field reversible, rigid lever.

FUNCTION	ENTRANCE	STOREROOM	PASSAGE	NIGHT LATCH	DUMMY	4	4	4	4	659	6/3	6 25	S	4x/C	REE

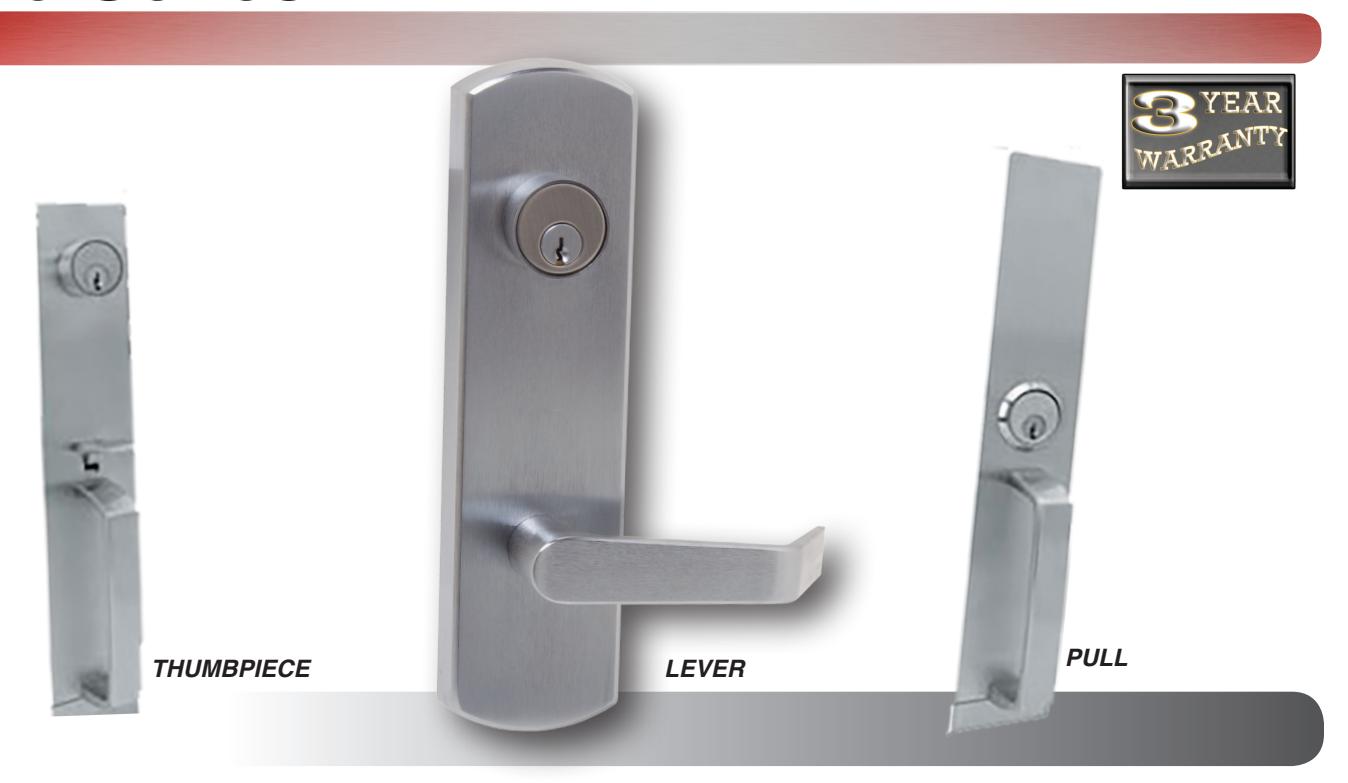

LEVER TRIM	ET26 ELT	ET26 SLT	ET26 PLT	-	ET26 DLT								V	✓	√ 2
THUMBPIECE TRIM	ET26 ETT	ET26 STT	ET26 PTT	-	ET26 DTT	F	or C	OMPLI	ете Ех	kit T r	ім Он	LY	✓	√	-
PULL TRIM	-	-	-	ET26 NPT 1	ET26 DPT								√	-	-
COMPLETE TRIM includes In-stock Trim						-	L6	L7*	L17'	V	+20	-	√	-	$60

^1- Only works on RIM devices 2. Only available on entrance function

SPECIFICATIONS:

• Rigid, non-clutch mechanism.
• Double heavy duty spring support to prevent sagging and enhance operation.
• Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
• Hardened steel heavy duty tailpiece. Available for fire and non-fire rated rim and vertical rod exit devices.
• Lever Trim: 2-3/4" width x 10 1/4" length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout.
• TP & Pull Trim: 2-5/8" width x 14 1/2" length.
• Standard 1 3/4". For 2 1/4" thick doors order additional part #tail3
• Lever & Thumb piece trim Standard mortise cylinder. High security cylinders accepted ie. Medco, Assa, and Kaba.
• Pull trim Rim Cylinder standard

FEATURES:

• Retrofits Cal Royal 7700 series & Von Duprin 98/99
• No hassle 3-Year Warranty

OPTIONS:

• REE - Request to Enter switch available. Lever trim only.

Model No.	Notes:
Customer:	Job No./Name:	Date:	Provided by:

^* Limited Availability
