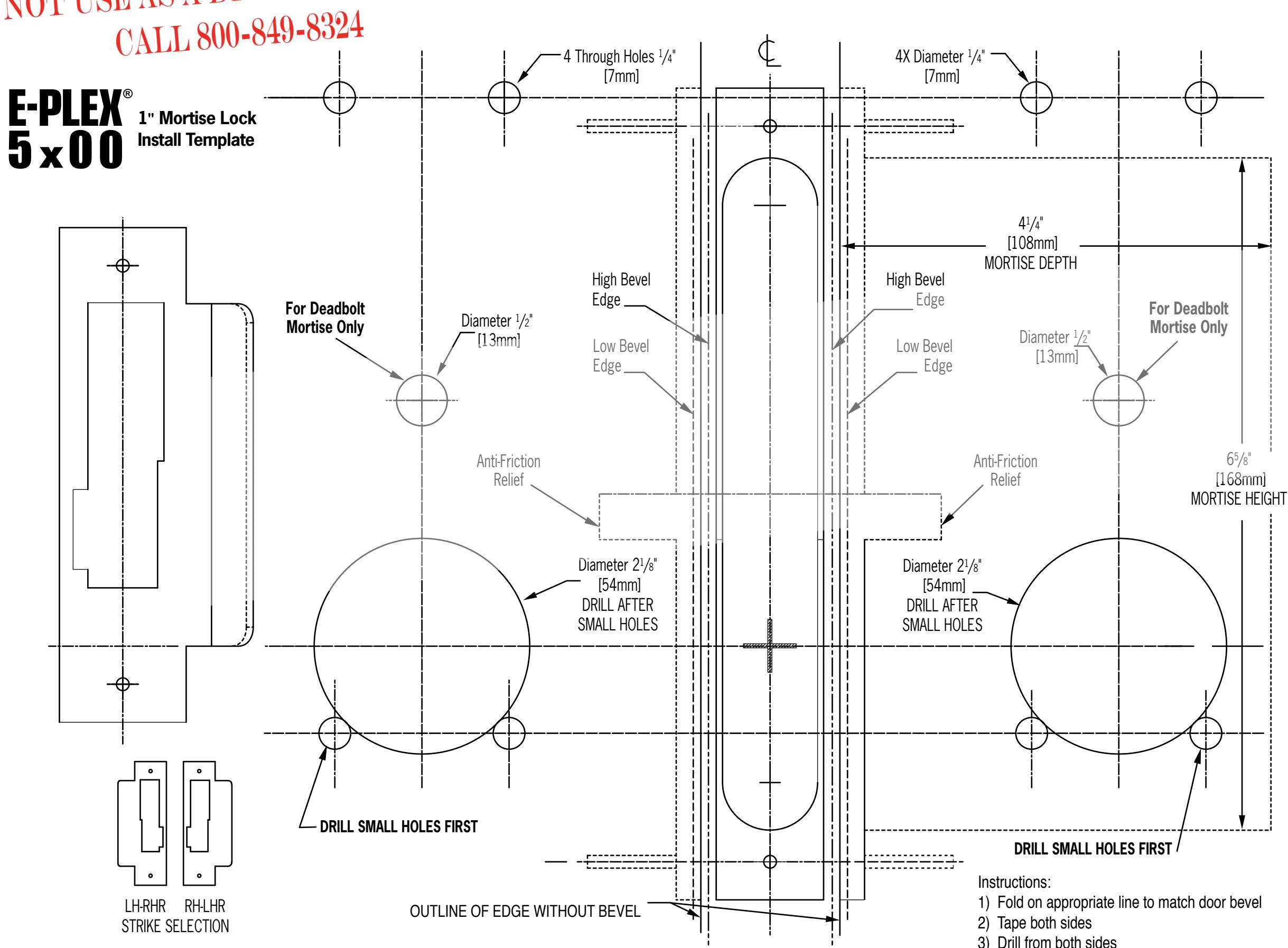

EPlex 5×00 Template for 1 Inch Mortise

Open the original PDF document

View PDF

REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE

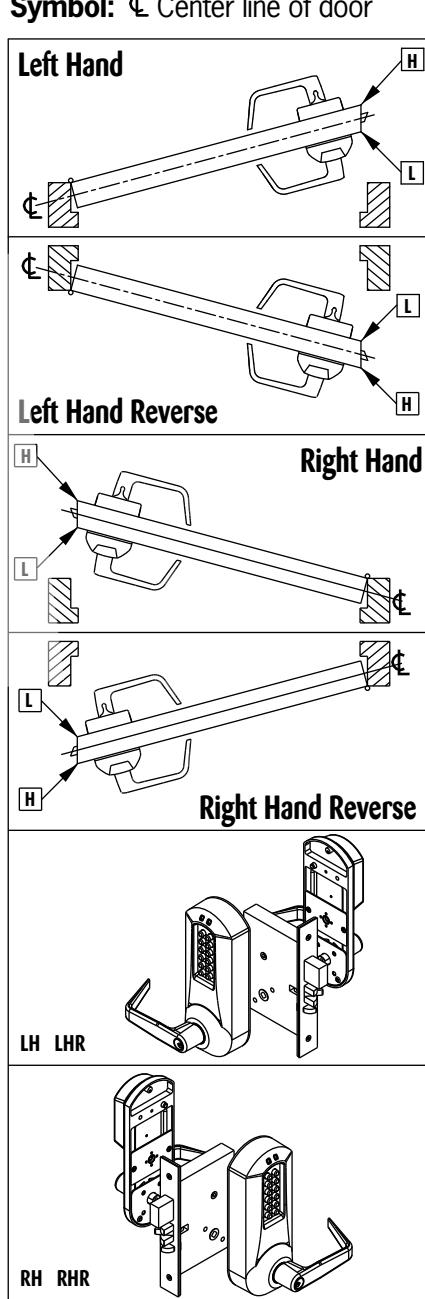

Note: High & Low Bevel Edge for doors with 3° bevel angle (see illustration below)

Symbol: Center line of door

2941 Indiana Avenue Winston-Salem, NC 27105 USA Tel: (800) 849-8324 (336) 725-1331 Fax: (800) 346-9640 (336) 725-3269
