EPlex 5090 Price List
Open the original PDF document
View PDF
- PIN Access
- Electronic Access Control
- 100 Access Codes
- 3,000 Audit Events
Features
Access Control : Electronic lock with PIN access; for installation on a standard
50/50/50 IT server cabinet
Number of Codes : 100 Codes; upgrades to 300 Codes with optional software
Programming : Locks are programmed via keypad or with optional Microsoft Excel-based software
Audit Events : 3,000 most recent Events
Authority Levels (5) : Authority levels allow you to control who has access to specific lock operations:
• Master • Manager
• Service User • Access User
• Maintenance Unit User
Operation Modes : • PIN Access
• Passage—can be toggled on/off or can be pre-programmed to re-lock
after a certain number of hours
• Lockout
System Software : Host application PC server with multiple workstations support using Thin Client
interface over network (or same machine) SQL database with critical data
components encrypted for highest security
Mechanical Features
Locking Device : Utilizes the existing door locking hardware (cam and/or locking bar)
Construction : Heavy-duty resin polymer housing, stainless backing plate, metal pushbuttons
Handing : Non-handed, pre-assembled for left-hand door installation—easily changed in field
Numeric Keypad : Vandal resistant, solid metal pushbuttons
Key Override : Key-in-lever style cylinder can be ordered keyed alike or keyed different
(is not field changeable)
Standard Finish : Black 401 housing and lever with Satin Chrome 626 Buttons
Installation
Ease of Installation : Simple, easy-to-install reader unit installs into standard 50/50/50 IT server cabinet
prep. Power interface unit enclosure is factory prepped for simple wiring with low voltage connections directly into off-the-shelf power supply units. Wiring harness with cabinet-to-door quick disconnect and mounting brackets are also included.
Items Supplied Include : Installation manual, quick reference guide, operations manual, and required
installation hardware
| Electronic Features |
|---|
Indicators : Audible and visual indicators Power Supply : Requires 12 or 24 VDC power input (specified when ordering) from standard, off-the-shelf power supply units (must have battery backup). If power is lost, user data and lock parameters are retained in on-board memory. Power interface unit enclosure is factory prepped for simple wiring with low voltage connections directly into off-the shelf power supply units. Alarm Interface : Product also includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems Environmental Operating Range : -31 °F (-35 °C) to 151 °F (66 °C) (not intended for outdoor use) Certification Certifications : Accessibility Standard: Americans with Disabilities Act (ADA)
Warranty
Warranty : 1-year warranty from date of installation; built-in warranty counter in memory
Dimensions Optional Feature

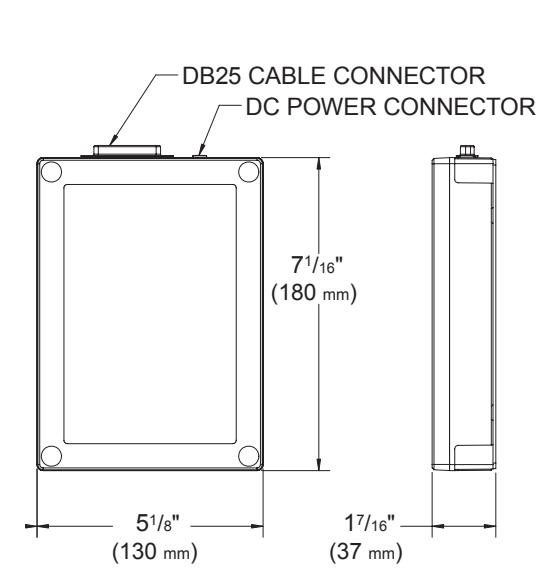

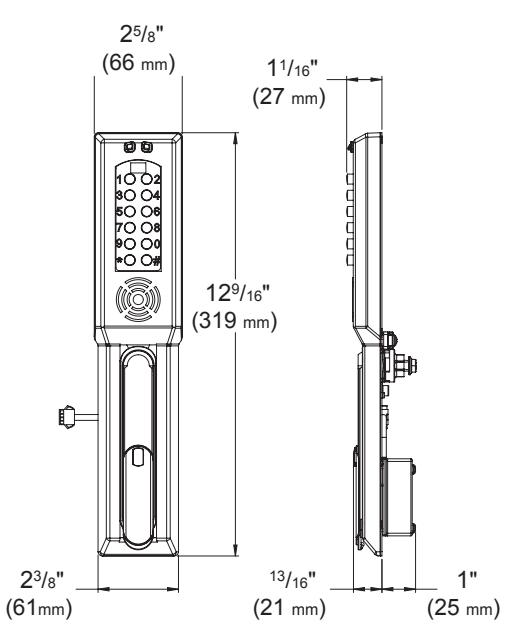

Integrated Locking Device Power Interface Unit Integrated Locking Device Power Interface Unit
| Base Model | Description | Base Price |
|---|---|---|
| E5090EMA0401041 | E5090, Server Cabinet Lock, 100 Access Codes, 3,000 Audit Events | $1272.00 |

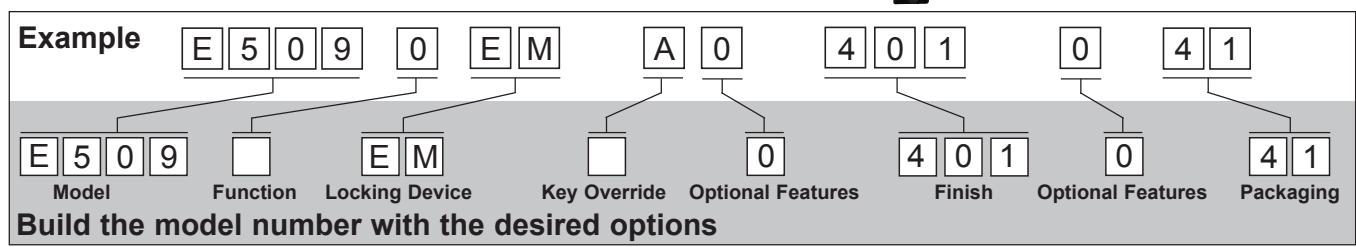

Choose One Option from Each Category
| oncode one option from Each oategory | ||||
|---|---|---|---|---|
| Function Options | Description | Price | ||
| 0 | 24 volt | No Charge | ||
| 1 | 12 volt | No Charge | ||
| Locking Device | Description | Price | ||
| EM | EMKA 1150 locking handle | No Charge | ||
| Key Override Options | Description | Price | ||
| A | Keyed alike | No Charge | ||
| D | Keyed different | No Charge | ||
| Optional Mechanical Features | Description | Price |
|---|---|---|
| 0 | Standard cylinder | No Charge |
| (call for special cylinder or mechanical needs/requirements) | ||
| Finish Option | Description | Price |
| 401 | Textured Black | No Charge |
| Optional Electronic Features | Description | Price |
| 0 | Standard | No Charge |
| (call for special electronic needs/requirements) |
Items Supplied with the Lock
- · Installation Manual
- Quick Reference Guide
- Operations Manual
- · Installation Hardware
Notes
| E-Plex® 5090 Series Accessories (Optional) | ||||||
|---|---|---|---|---|---|---|
| Model Number | Description | Price | ||||
| EP-STD-xx-001 xx=version number. Please see kaba.to/eplex-software to determine most current version number. | E-Plex Standard Software Implementation Kit (Excel-based templates) up to 300 Users (see E-Plex Software section of this catalog for additional information |
$550.00
on) |
||||
