EPlex 5086 Price List
Open the original PDF document
View PDF
| Base Model | Description | Base Price |
|---|---|---|
| E5086XKWL62641 | E5086, Entry/Egress (Back-to-Back), 100 Access Codes 3,000 Audit Events | $1519.00 |

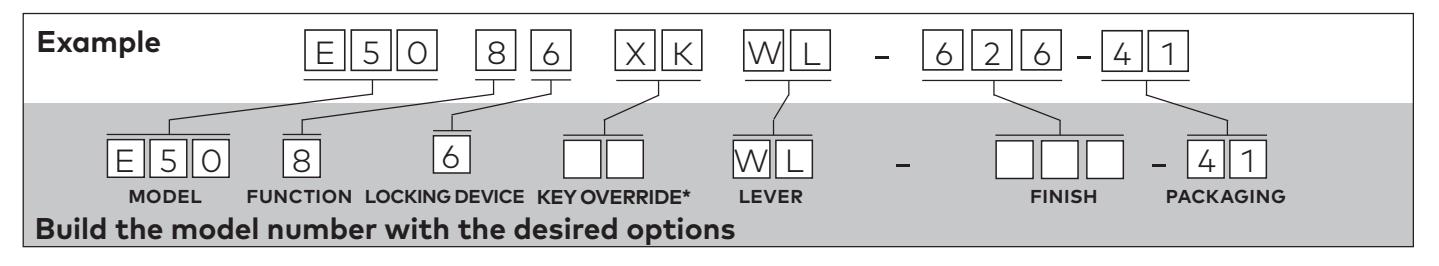

Choose One Option from Each Category
| Function | Description | Price |
|---|---|---|
| 8 | American Steel Mortise (ASM), Entry/Egress | No Charge |
| Locking Device | Description | Price |
| 6 | Mortise 1¼" (32 mm) face plate no deadbolt (non-handed) | No Charge |
| Key Override Options** | Description | Price |
| XK | K-I-L Kaba Cylinder (Kaba 90 Keyway) included | No Charge |
| XS | K-I-L Kaba Cylinder (Schlage "C" Keyway) included | No Charge |
| В | SFIC Best and Equivalents (6 or 7-pin length) | No Charge |
| С | LFIC Corbin Russwin (6 or 7-pin length) | No Charge |
| М | LFIC Medeco/ASSA/Yale/Abloy (5 or 6-pin length) | No Charge |
| R | LFIC Sargent | No Charge |
| S | LFIC Schlage | No Charge |
** Interchangeable/Removable core cylinders are not included with the lock
| Lever | Description | Price |
|---|---|---|
| WL | Winston Lever | No Charge |
| Finish Options | Description | Price |
| 605 | Bright Brass (03) | Add $50.00 |
| 606 | Satin Brass (04) | Add $50.00 |
| 625 | Bright Chrome (026) | Add $50.00 |
| 626 | Satin Chrome (26D) | No Charge |
| 676 (while supplies last) | Black with Satin Chrome Accents | No Charge |
| 744 | Dark Bronze with Brass Accents (simulated 10B/613) | Add $100.00 |
* Options must be the same for both sides of the lock

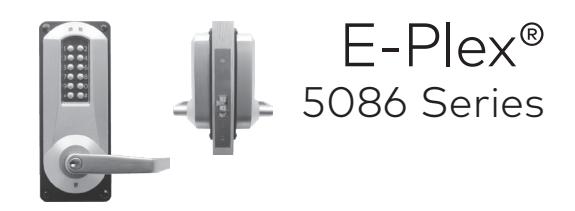

E-Plex® 5086 Series
Items Supplied with the Lock
- Installation Manual
- Quick Reference Guide
- Operations Manual
- Full-Scale Template
- Required Installation Hardware
- Tailpiece for Specified Key Override
Additional Items Supplied with Key-in-Lever Models Only
- Universal Kaba 1599 6-pin cylinder with tailpiece (includes two nickel silver keys)—per side
- Four additional tailpieces (can be used with many of the leading conventional cylinders)—per side
Items Supplied with the Lock
- Installation Manual
- Quick Reference Guide
- Full-Scale Template
- Required Installation Hardware
Notes
E-Plex® 5086 Series Accessories (Optional)
| Model Number | Description | Price |
|---|---|---|
|
EP-STD-xx-001
xx=version number. Please see go.dormakaba.com/eplex-software to determine most current version number. |
E-Plex Standard Software Implementation Kit
(Excel-based templates) up to 300 Users (see E-Plex Software section of this catalog for additional information) |
$595.00 |
