EPlex 5000 Price List
Open the original PDF document
View PDF
| Base Model | Description | Base Price |
|---|---|---|
| E5031XKWL62641 | E5000, Cylindrical, Key-in-Lever, 100 Access Codes, 3,000 Audit Events | $843.00 |

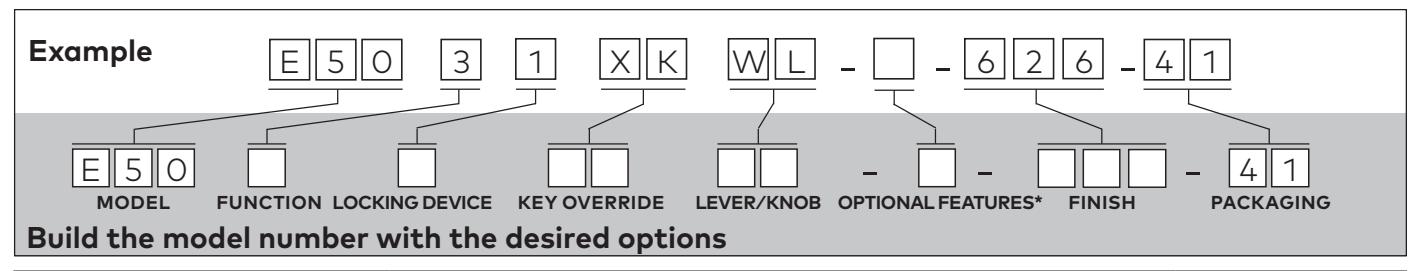

Choose One Option from Each Category
| Function Options | Description | Price |
|---|---|---|
| 1 | Exit Trim (E.T.) | Add $100.00 |
| 3 | Cylindrical Lock (cyl) | No Charge |
| 5 | Cylindrical with Privacy (cyl) | Add $100.00 |
| 6 | American Steel Mortise (ASM) For mortise applications where additional door support is needed, order a mortise stabilizer for a hollow metal door from the accessories section. | Add $120.00 |
| Locking Device Options | Description | Price |
|---|---|---|
| 0 | Exit Trim (available with E.T. only) | No Charge |
| 1 | Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset | No Charge |
| 2 | Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (60 mm) backset | No Charge |
| 5 | Cylindrical ¾" (19 mm) throw latch, beveled face plate 2¾" (70 mm) backset | No Charge |
| 3 | Mortise LH—1" (25 mm) face plate no deadbolt | No Charge |
| 4 | Mortise RH—1" (25 mm) face plate no deadbolt | No Charge |
| 8 | Mortise LH—1" (25 mm) face plate with deadbolt | Add $30.00 |
| 9 | Mortise RH—1" (25 mm) face plate with deadbolt | Add $30.00 |
| 6 | STD Mortise 11/4" (32 mm) face plate no deadbolt (non-handed) | No Charge |
| 7 | STD Mortise 1¼" (32 mm) face plate with deadbolt (non-handed) | Add $30.00 |
| Key Override Options** | Description | Price |
|---|---|---|
| XK | K-I-L Kaba Cylinder (Kaba 90 Keyway) included | No Charge |
| XS | K-I-L Kaba Cylinder (Schlage "C" Keyway) included | No Charge |
| В | SFIC Best and Equivalents (6 or 7-pin length) | No Charge |
| C | LFIC Corbin Russwin (6 or 7-pin length) | No Charge |
| M | LFIC Medeco/ASSA/Yale/Abloy (5 or 6-pin length) | No Charge |
| R | LFIC Sargent | No Charge |
| S | LFIC Schlage | No Charge |
Interchangeable/Removable core cylinders are not included with the lock
* This field may be left blank if no optional features are required
| Lever / Knob Options | Description | Price |
|---|---|---|
| WL | Winston Lever | No Charge |
| WK | Winston Knob (available with Cylindrical only) | No Charge |
| Optional Features | Description | Price |
|---|---|---|
| 0 |
Remote Unlock
Lock supplied with pigtail ready to wire remote momentary contact switch (not included) |
Add $80.00 |
| Finish Options | Description | Price |
| 605 | Bright Brass (03) | Add $25.00 |
| 606 | Satin Brass (04) | Add $25.00 |
| 625 | Bright Chrome (026) | Add $25.00 |
| 626 | Satin Chrome (26D) | No Charge |
| 676 (while supplies last) | Black with Satin Chrome Accents | No Charge |
| 744 | Dark Bronze with Brass Accents (simulated 10B/613) | Add $100.00 |
Items Supplied with the Lock
- Installation Manual
- Quick Reference Guide
- Operations Manual
- Full-Scale Template
- Required Installation Hardware
- Tailpiece for Specified Key Override
Additional Items Supplied with Key-in-Lever Models Only
- Universal dormakaba 1599 6-pin cylinder with tailpiece (includes two nickel silver keys)
- Four additional tailpieces (can be used with many of the leading conventional cylinders)
Notes
E-Plex® 5000 Series Accessories (Optional)
| Model Number | Description | Price |
|---|---|---|
|
EP-STD-xx-001
xx=version number. Please see go.dormakaba.com/eplex-software to determine most current version number. |
E-Plex Standard Software Implementation Kit
(Excel-based templates) up to 300 Users (see E-Plex Software section of this catalog for additional information) |
$595.00 |
Exit Device Compatibility: dormakaba 9300/F9300 Series Rim Exit Device - call 800-523-8483 for pricing and availability
Other Compatible Devices (for the most accurate listing of compatible Exit Devices, visit go.dormakaba.com/Simplex5000
| Arrow S1250 | Dorma 9300/F9300 | Sargent 8810E/8800 |
|---|---|---|
| Arrow S3883F/S3800 | Dorex 8500R/8500F | Sargent 8888 |
| Black & Decker (K-2) QED111/112 | Dorex 9500PR/9500FR | Von Duprin 22/22F |
| Cal Royal 9800 | Monarch 18R†, F18R† | Von Duprin 98/98F |
| Cal Royal 2200 | Precision 21/FL21 | Von Duprin 99/99F |
| Corbin Russwin ED5200/5200A | Sargent 2828 | Von Duprin XP98/99 |
| Detex 1001 BP1 | Sargent 3828 | Yale YME2100/2100 |
| Detex 10/F10 Series | Yale 7100 |
†( requires special K-Hub Adapter, not supplied by dormakaba)
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without dormakaba's knowledge
• Cannot be used with mortise design or vertical rod Exit Devices
