EPlex 2000 Door Preparation Drawing Von Duprin-9875, 9975 EO-F (IP-513126 v4)

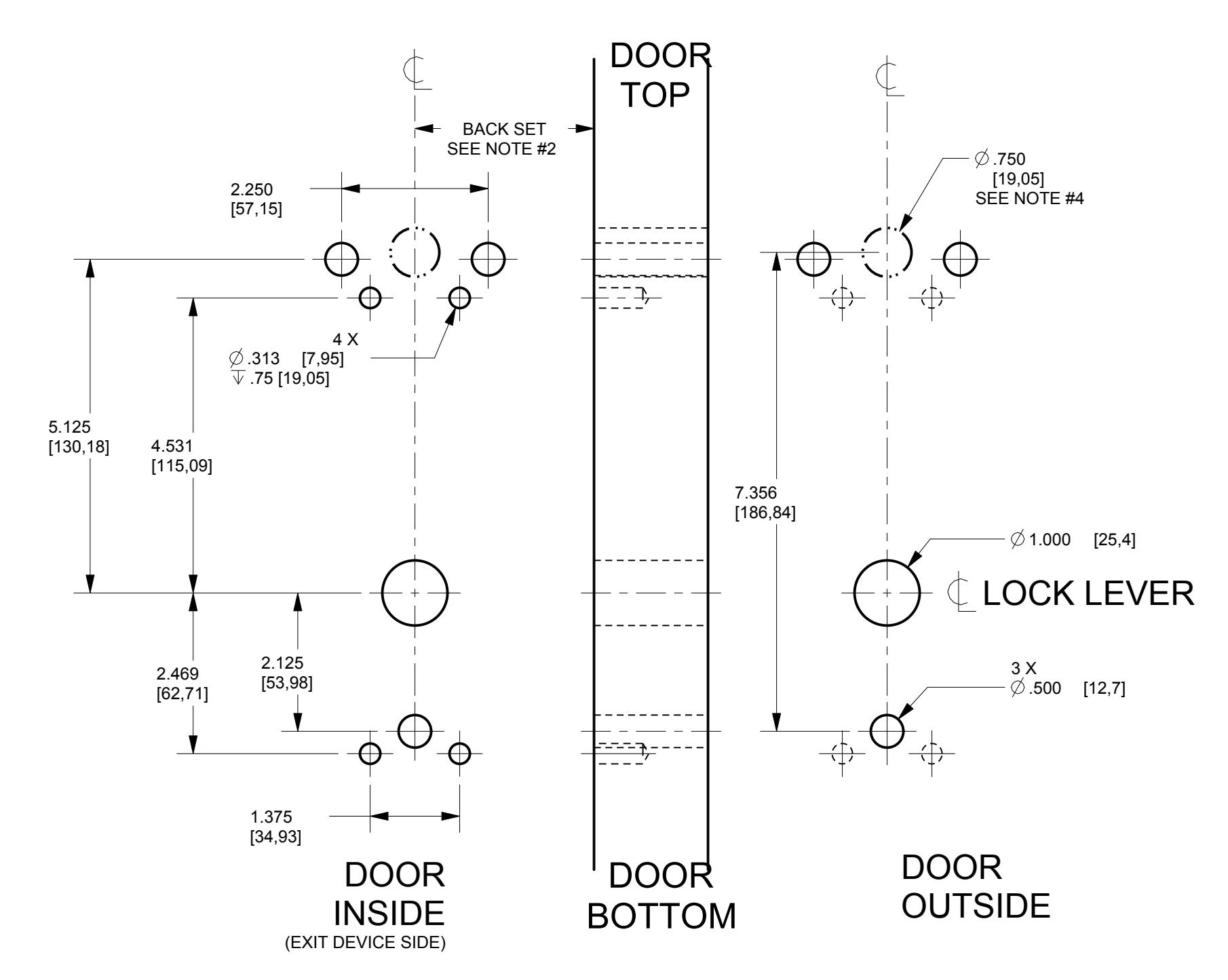

REVISIONS FAIT PAR MADE BY DESCRIPTION DATE ECN 1- FOR EXIT DEVICE AND MORTISE LOCK CUT-OUT REFER TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. 12AU 2- BACKSET SHOWN FOR REFERENCE ONLY, ADJUST BACKSET TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. P.P. 1 13259 ORIGINAL RELEASED FOR PILOT A.T. 2009 BACKSET TO BE ADJUSTED TO LOW AND HIGH BEVEL DOOR EDGE AS PER DIAGRAM A TABLE. 20JA 15719 NOTES ADJUSTED, NEW DESCRIPTION C.D. A.E. 3- DIMENSIONS ARE SYMETRICAL ABOUT $\( \text{ UNLESS OTHERWISE NOTED.} \) 2016 4- THIS HOLE ONLY FOR LOCK WITH MESSENGER OR BLUETOOTH. FOR COMPLETE HOLE PATTERN REFER TO DRAWING DT-515149 OR IP-515149. 5- ALL DIMS ARE IN INCHES/[mm] DOOR SPECIFIC TOLERANCES TOP Ø.750 DISTANCES ±.030 [±0.75] [19,05] BACK SET HOLES ∅ ±.010 [±0.25] SEE NOTE #4 SEE NOTE #2 2.250 $\backslash emptyset$ .313 [7,95] [57,15] √ .75 [19,05] LEFT HAND RIGHT HAND (LH) (RH) INSIDE 1.375 [34,93] OUTSIDE 5.125 LEFT HAND RIGHT HAND [130,18] 4.531 REVERSE REVERSE [115,09] (LHR) (RHR) DIAGRAM B 7.356 [186,84] DOOR HANDING $\backslash emptyset$ 1.000 [25,4] LOCK LEVER SION A 2.125 2.469 [53,98] Ø.500 [12,7] [62,71] LHR LOCK

DIAGRAM A - BACK SET AJUSTEMENT FOR 3 BEVEL DOOR BACK SET -LOW BEVEL EDGE OOR THICKNESS AJUSTEMENT DIMENSION X DIMENSION Y .032 (0.81mm) 1.25 (31,8mm) 2 750 STANDARD 1.50 (38,1mm) .039 (1,00mm) BACK-SET 1.75 (44,5mm) .046 (1.17mm) 2.00 (50,8mm) .052 (1,32mm) 2.25 (57,2mm) .059 (1,50mm) REFERENC 2.50 (63,5mm) .065 (1,65mm) HIGH BEVEL EDGE-2.75 (69,9mm) .072 (1,83mm)

SYMBOLS: $\backslash sqrt\{\backslash phantom\{a\}\}$ DEEP ___ COUNTERBORE CENTER LINE $\backslash emptyset$ DIAMETER ✓NOT TO SCALE

DOOR

OUTSIDE

DOOR

BOTTOM

SCALE 1:2

DIMENSIONS CRITIQUES CRITICAL DIMENSIONS XXX ES DIMENSIONS SONT POUCES [millimètres PROJECTION 3iem ANGLE THIRD ANGLE PROJECTION T S'APPI IOLIENT APRÈS FINITION INLESS OTHERWISE SPECIFIED. NE PAS MESURER SUR LE DESSIN DO NOT SCALE DRAWING DIMENSIONS ARE:INCHES [millimeters AND APPLY AFTER FINISH. TOLERANCES:

DOOR

INSIDE

(EXIT DEVICE SIDE)

VOIR LES NOTES

SEE NOTES HIS DOCUMENT IS PROPERTY OF KABA. THE DATA ONTAINED IS PROPRIETARY AND SHALL NOT BE

UNE VERSION FRANCAISE DE CE DOCUMEN

THIS DRAWING HAS SPECIFIC TOLERANCES,

CE DESSIN A DES TOLERANCES SPECIFIQUES,

DESSINE PAR DRAWN BY:

CONCU PAR: DESIGNED BY A.TOLEDANO 12AU09 PROLIVE PA PPROVED BY MATERIAU / MATERIAI NOT APPLICABLE

P.PRIEUR

12AU09

7301.Decarie Boul Montreal,QC Canada H4P 2G7

630, 730, 750, 79E, E-PLEX 2000 AND POWER-PLEX 2000 LOCK SERIES DOOR PREPARATION DRAWING VON DUPRIN MORTISE 9875/9975 EO-F ORMAT NO PIECE / PART NO

FINITION / FINISH NOT APPLICABLE N/A IP-513126 В TRAITEMENT THERMIQUE / HEAT TREATMENT DE OF SEE VIEWS NOT APPLICABLE

SEE PAGE 1

SCALE 1:2

JERSION A

RHR LOCK

CE DOCUMENT EST LA PROPRIETE STRICTE DE KABA. LES DONNEES QU'IL CONTIENT NE PEUVENT ETRE COPIEES OU DIVULGUEES A UNE TIERCE PARTE SANS LE CONSENTEMENT CERTI DE KABA CE DOCUMENT DEVRA ETRE RETOURNE SUR DEMANDE A KABA.

THIS DOCUMENT IS PROPERTY OF KABA. THE DATA CONTAINED IS PROPRIETARY AND SHALL NOT BE COPIED OR DISCLOSED TO A THIRD PARTY WITHOUT WRITTEN CONSENT OF KABA. THIS DOCUMENT WILL BE RETURNED TO KABA UPON DEMAND.

UNE VERSION FRANCAISE DE CE DOCUMEN EST DISPONIBLE SUR DEMANDE.

3	KARA®				7301,Decarie Boul Montreal,QC Canada H4P 2G7 www.kaba-ilco.com
	FORMAT	NO PIECE / PART NO:	NO DESS	NO DESSIN / DRAWING NO:
E	R	N/A	IP-513126
NT	ט	FOR COMPLETE TITLE REFER TO PAGE 1	PG SHT	2	DE OF	2
