EP499-Pricelist

EP17624 Explosion Proof EMLock® Discount Code

Distributor GK

SPECIFICATIONS DIMENSIONS

Holding Force 600 lbs Input Voltage 24 VDC Current 250mA @ 24VDC EP17624 lock 10.5"L x 2"H x 1.75"D EP17624TJ lock 10.5"L x 2.25"H x 1.75"D Armature 7.125"L x 1.75"H x 0.75"D Door Status Sensor SPDT contact, 100mA max.

@ 30VDC max

MODEL DESCRIPTION LIST

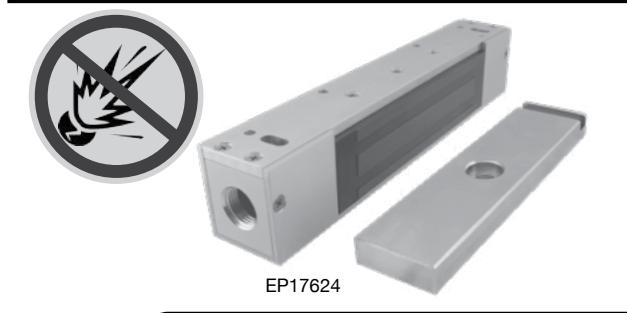

EP17624 Single Explosion Proof Magnetic Lock, side conduit location, 628 Aluminum, for use on push-side of door, conduit on side block 2,661.00

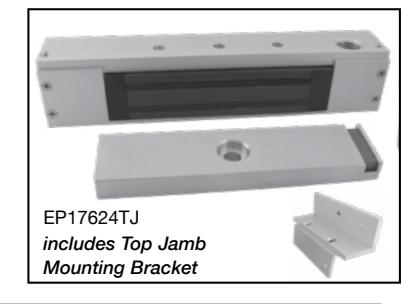

EP17624TJ Single Explosion Proof Magnetic Lock, top conduit location, 628 Aluminum, includes Top Jamb mounting bracket, for use on pull-side of door, conduit on top 2,772.00

This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl-Ethylketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural, Normal Hexane, Methyl Alcohol. Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connections, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C). This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for

Explosion Proof Exit Switch LIST Distributor Discount Code

SPECIFICATIONS Class I, Zone 1, AEx de IIC T6...T4 Gb / Ex de IIC T6...T4 Gb X

Contact 1 N.O. and 1 N.C., momentary Zone 21, AEx tb IIC T85°C...T135°C Db IP66 /

IIEC Rating DC60V 5A DC-13

Operating

24 VDC with a minimum current output of 0.5 amperes and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.

Temperature -50° C to 60° C Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups E, F, G

Class III

DIMENSIONS 3.95 W X 4.21 H X 4.16" D UL50, 50E, 508, UL60079-0, -1, -7, -31

Ex tb IIC T85°C...T135°C Db IP66 X

Type 3, 4, 4X, 12, 13

EP499 Explosion Proof Exit Switch, Green Button 2,544.00 EP499-R Explosion Proof Exit Switch, Red Button 2,544.00

Explosion Proof Pull Station LIST Distributor Discount

Code

SPECIFICATIONS

Contact DPDT Class I, Group B, C, D Class II, Group E, F, G

Contact rating 10 amps @ 125/250 VAC Class III

Wire AWG 12 to 22 AWG Type 4X (outdoor)

Wireing Terminal Black Connection

EP493 Explosion Proof Pull Station 884.00
