EP493 Series Explosion Proof Pull Stations

Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments.

UL listed for use in hazardous locations CLASS I, Group B, C, D; CLASS II, Group E, F, G; Class III; Type 4X outdoor

  • High-Strength Metal DIe-Cast Alloy
  • Terminal Black Connection
  • DPDT switch rated @ 10 amps
  • Classified for Hazardous Locations Model: RMS-EXWP-6T (File E154860)

  • Chemical Plants
  • Refineries
  • Paint Shops
  • Cleaning Facilities
  • Loading Facilities for flammable gases

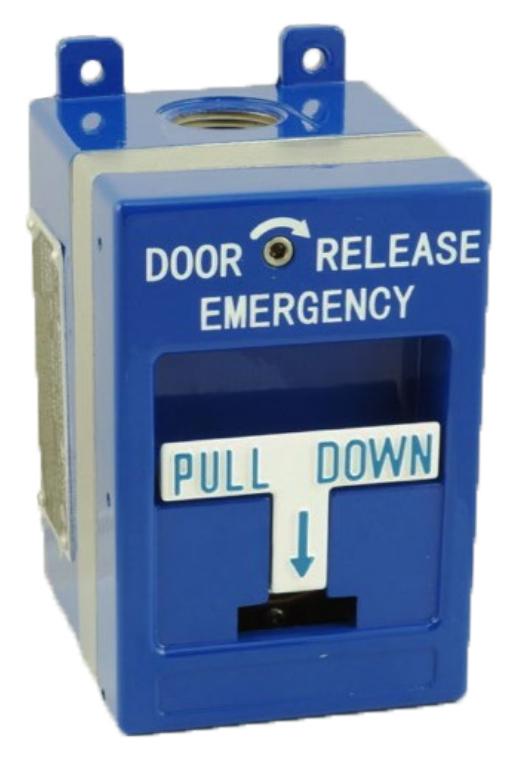

EP493 Explosion Proof Pull Station

Current 10 amps @ 125/250 VAC
Contacts DPDT
Wire AWG 12 to 22 AWG

ACCESSORIES

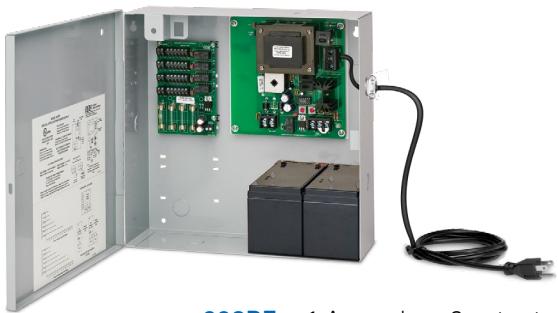

602RF 1 Amp, class 2 output Power Supply with optional controller and batteries

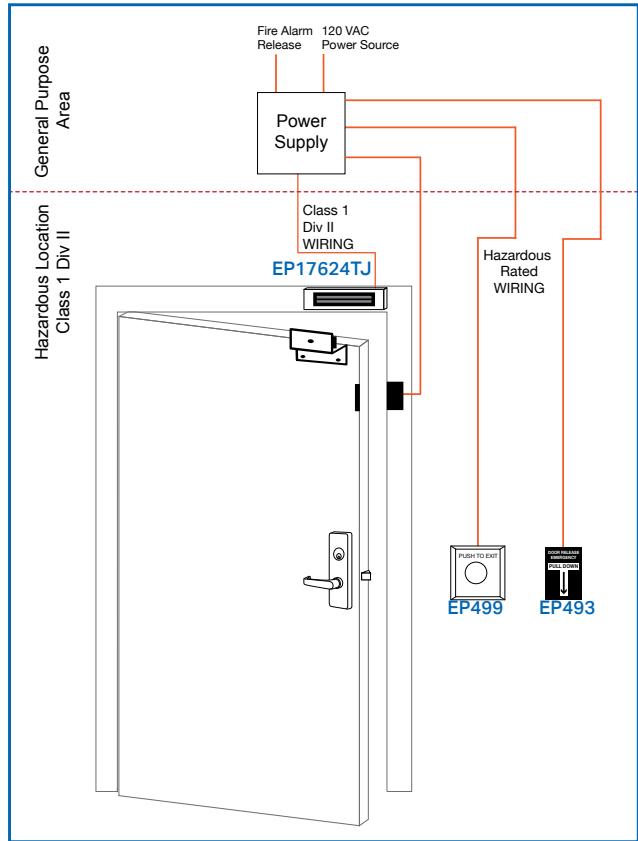

System Components Considerations

* Intrinsic Safety Barrier by others

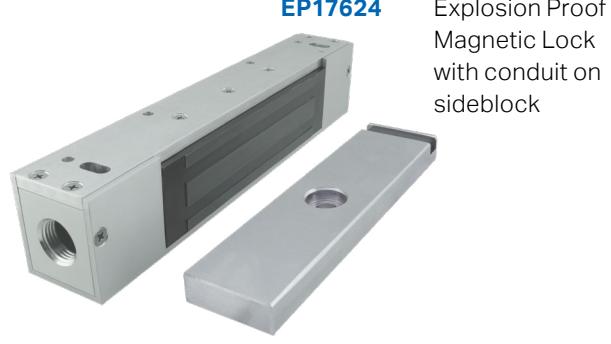

Magnetic Lock with conduit on sideblock

Magnetic Lock with conduit on top

EP17624TJ Explosion Proof

EP499 Explosion Proof Exit Switch
