EMN Template for IHTHB953 (metric) t553m-template

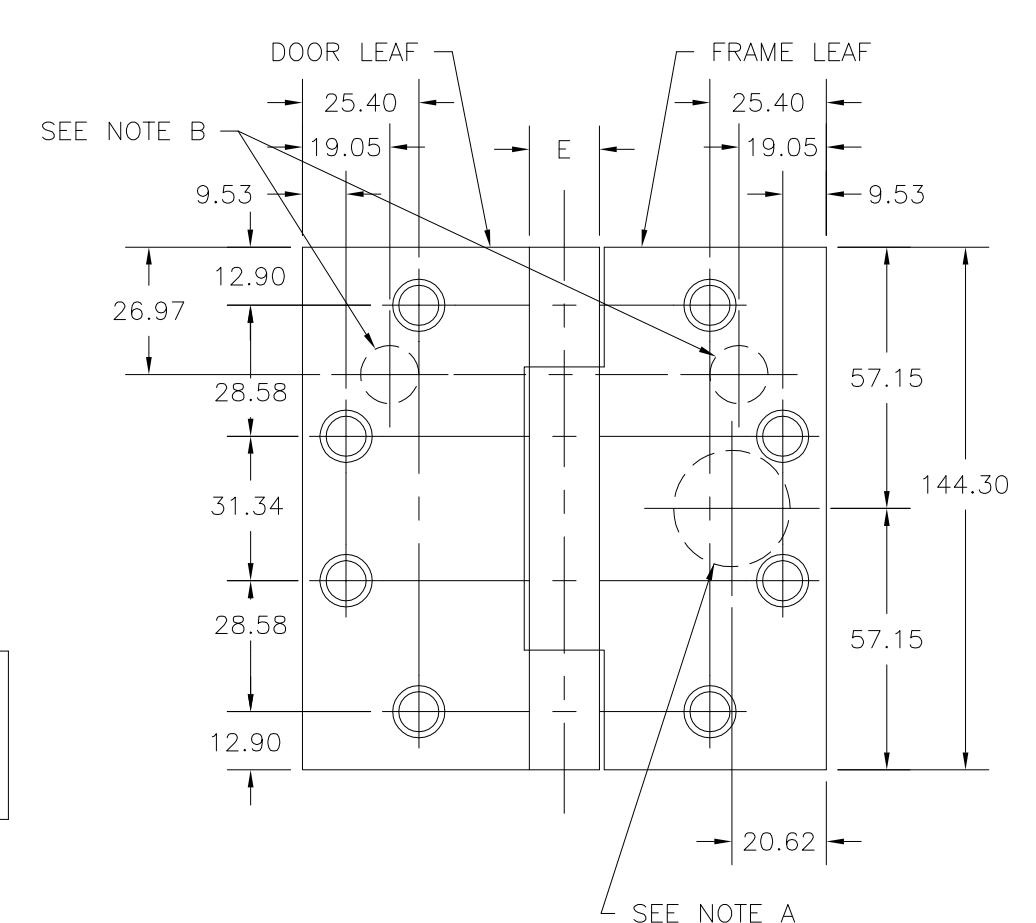

FULL MORIISE REVERSE Rev. '96 SAFETY STUD TEMPLATE HINGES ELECTRIC MONITOR TYPE EMN

SIZES: 114.30 x 114.30

EMN MAXIMUM ELECTRICAL RATING SWITCH VOLTS 48V DC/AC AMPERES 1.0A

DRILLING INSTRUCTIONS

NOTE A:

DRILL AND DEBURR Ø 25.40 mm HOLE IN FRAME REINFORCEMENT FOR WIRES.

NOTE B:

DRILL Ø 12.70 mm HOLES IN DOOR AND FRAME REINFORCEMENT FOR STUDS.

CATALOG NUMBER				(F) DISTANCE FROM EDGE

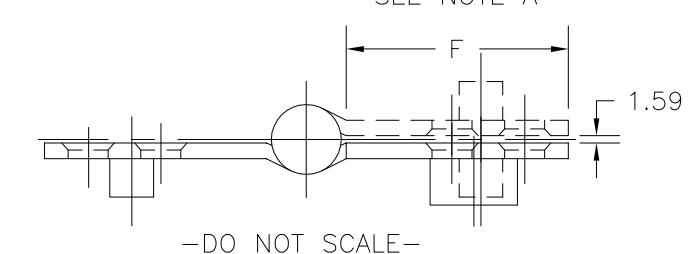

STEEL	STAINLESS STEEL	| | METAL	(E) KNUCKLE	OF LEAF TO SWAGE LINE
HINGES	HINGES	GAUGE	DIAMETER	114.30 × 114.30
HB950RSS-EMN	HB953RSS-EMN	4.75	22.23	46.04

ALL DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- $1/4-20\; \backslash times\; 1/2$ " F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in size and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
