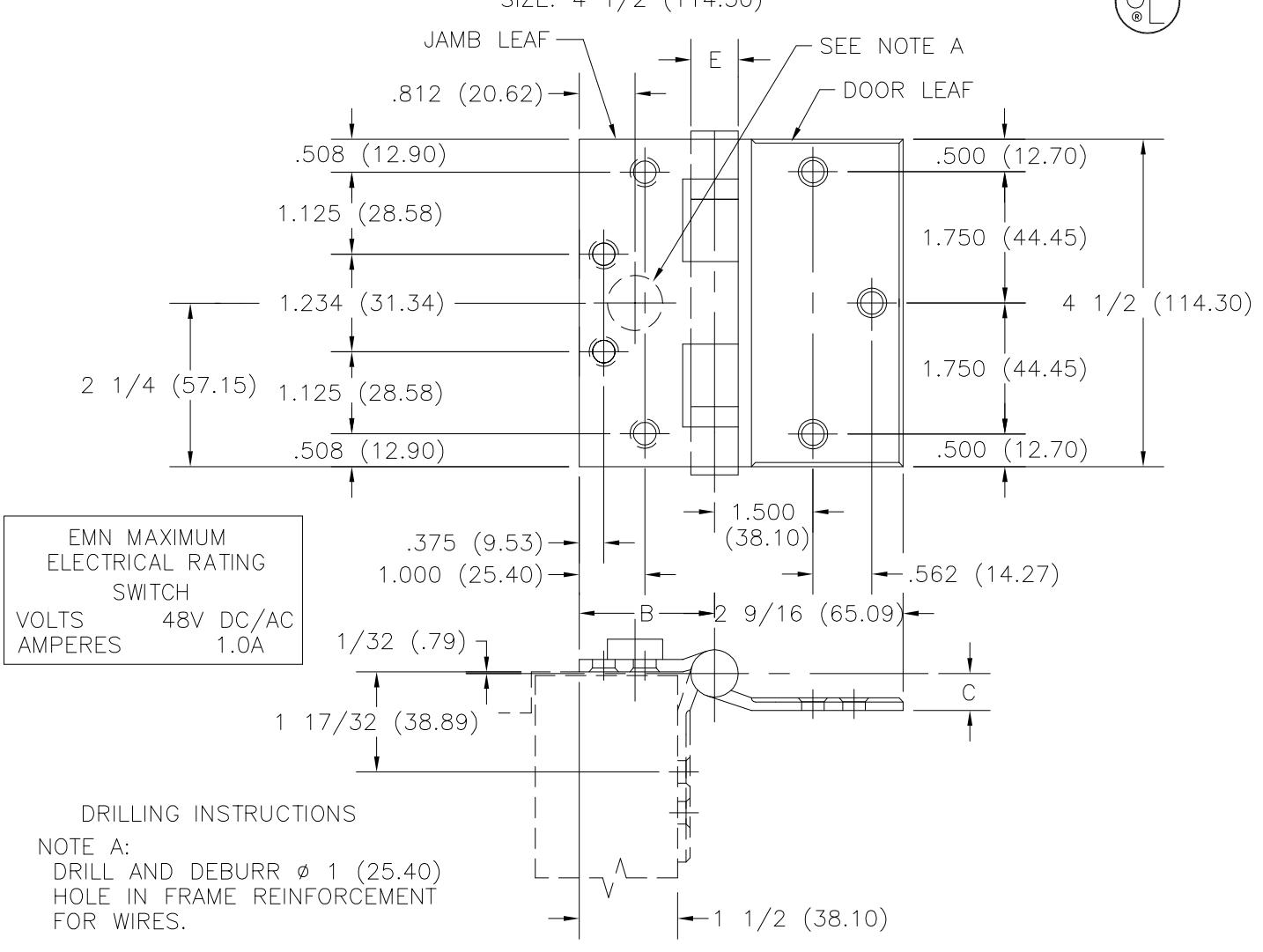

HALF SURFACE TEMPLATE HINGES ELECTRIC MONITOR TYPE EMN

Template No. T530 Rev. '96

SIZE: 4 1/2 (114.30)

-DO NOT SCALE-

CATALOG NUMBER
STEEL
HINGES 		NON-
FERROUS
HINGES 		METAL
GAUGE 		(B)
JAMB LEAF
WIDTH 		(C)
DOOR LEAF
OFFSET 		(E)
KNUCKLE
DIAMETER
AB703-EMN AB803-EMN .134 (3.40) 2 (50.80) 1/2 (12.70) 39/64 (15.48)
BB1173-EMN BB2112-EMN .134 (3.68) 2 (50.80) 1/2 (12.70) 39/64 (15.48)
AB753-EMN AB853-EMN .180 (4.57) 2 1/16 (52.39) 9/16 (14.29) 45/64 (17.86)
BB1163-EMN BB2113-EMN .180 (4.57) 2 1/16 (52.39) 9/16 (14.29) 45/64 (17.86)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Door Leaf- 1/4-20 \times 2 " O.H. WITH GROMMET NUTS Machine Screw Size:

Jamb Leaf -12-24 \times 1/2 " F.H.

This hinge is intended to be used in the center position. Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
