EMN – 127mm – Template – T525M

525M

Rev. '96

FULL MORTISE TEMPLATE HINGES ELECTRIC MONITOR TYPE EMN

SIZES: 127.00 x 101.60, 127.00 x 114.30, 127.00 x 127.00

EMN MAXIMUM ELECTRICAL RATING SWITCH VOLTS 48V DC/AC AMPERES 1.0A

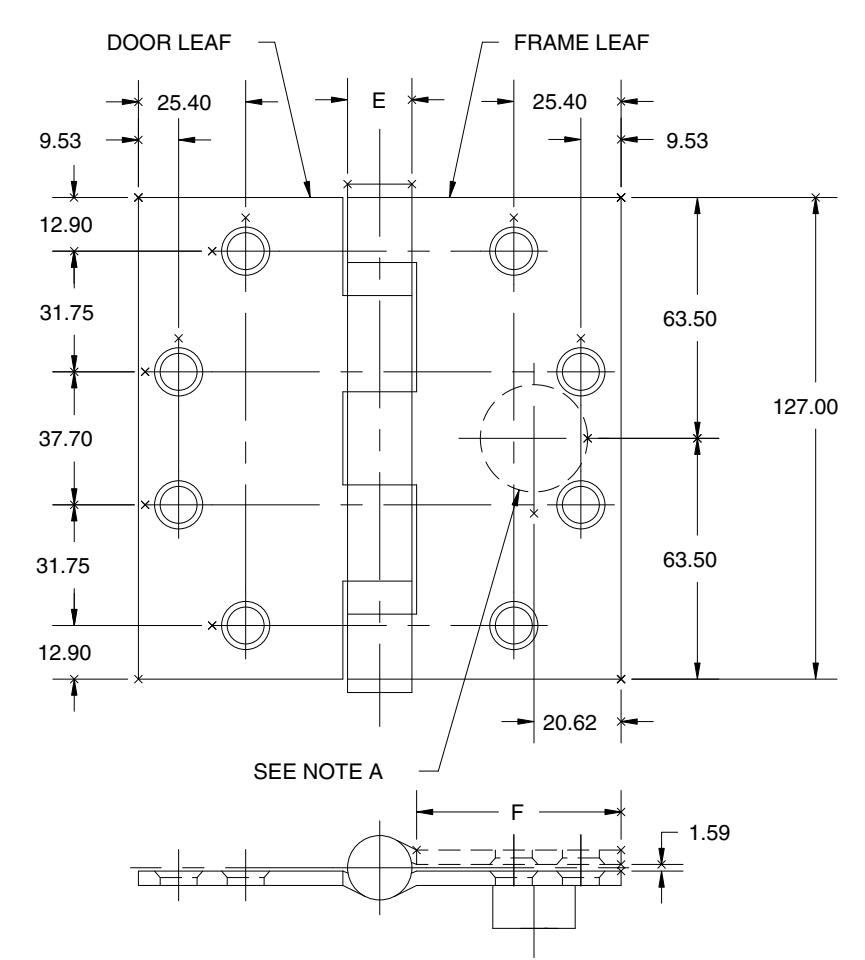

DRILLING INSTRUCTIONS

NOTE A: DRILL AND DEBURR Ø 25.40 mm HOLE IN FRAME REINFORCEMENT FOR WIRES.

-DO NOT SCALE-

CATALOG NUMBER				(F) DISTANCE FROM EDGE OF LEAF TO SWAGE LINE
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE	(E) KNUCKLE DIAMETER	127.00 x 101.60	127.00 x 114.30	127.00 x 127.00
BB1279-EMN	BB1191-EMN	3.68	16.27	41.28	47.63	53.98
AB700-EMN	AB800-EMN	3.68	15.88	41.28	47.63	53.98
BB1168-EMN	BB1199-EMN	4.83	18.65	39.69	46.04	52.39
AB750-EMN	AB850-EMN	4.83	18.65	39.69	46.04	52.39

ALL DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
