EML Series Electrified Mortise Locksets

DynaLock EML Series electrified mortise locks are UL Listed, ANSI/BHMA Grade 1 and designed to retrofit the Schlage L9000 Series. EML Series locksets feature field-selectable fail-safe (EL) / fail secure (EU) locking mode and field-reversible handing. The EML Series operates on 12-24 VAC/VDC input, is UL Listed for use on labeled fire doors rated up to 3 hours and includes standard bent lever trim.

Current Draw: 700mA @ 12 VDC; 350 mA @ 24 VDC

Finish: 626 (US26D) Weight: 7.0 Lbs.

MODEL FUNCTION OPERATIONAL DESCRIPTION
EML-1 Storeroom Function
Fail-Safe (EL)
Fail-Secure (EU) 		Outside lever locked (EL) or unlocked (EU) electronically.
Latchbolt retracted by key outside or lever inside. Applied
power allows outside lever to retract latchbolt. Inside lever is
always free for immediate egress.
EML-2 Institutional Function
Fail-Safe (EL)
Fail-Secure (EU) 		Outside and inside levers simultaneously locked (EL) or
unlocked (EU) electronically. Latchbolt retracted by key on
either side. Applied power allows both levers to retract latch
bolt.
EML-3 Classroom Function
Fail-Safe (EL)
Fail-Secure (EU) 		Outside lever locked (EL) or unlocked (EU) electronically.
Latchbolt retracted by lever on either side, unless outside
has been locked by key. Applied power allows outside lever
to retract latchbolt. Inside lever is always free for immediate
egress.
EML-4 Privacy w/Deadbolt
Fail-Secure (EU) 		Outside lever unlocked (EU) electronically. Latchbolt and
deadbolt retracted by key outside or lever inside. Applied
power allows outside lever to retract latchbolt unless
deadbolt is thrown. Inside lever is always free for immediate
egress. Available in Fail-Secure (EU) function only.
EML-5 Entry w/Deadbolt
Fail-Safe (EL)
Fail-Secure (EU) 		Outside lever locked (EL) or unlocked (EU) electronically.
Latchbolt and deadbolt retracted by key outside or lever
inside. Applied power allows outside lever to retract latch
bolt and deadbolt. Inside lever is always free for immediate
egress.

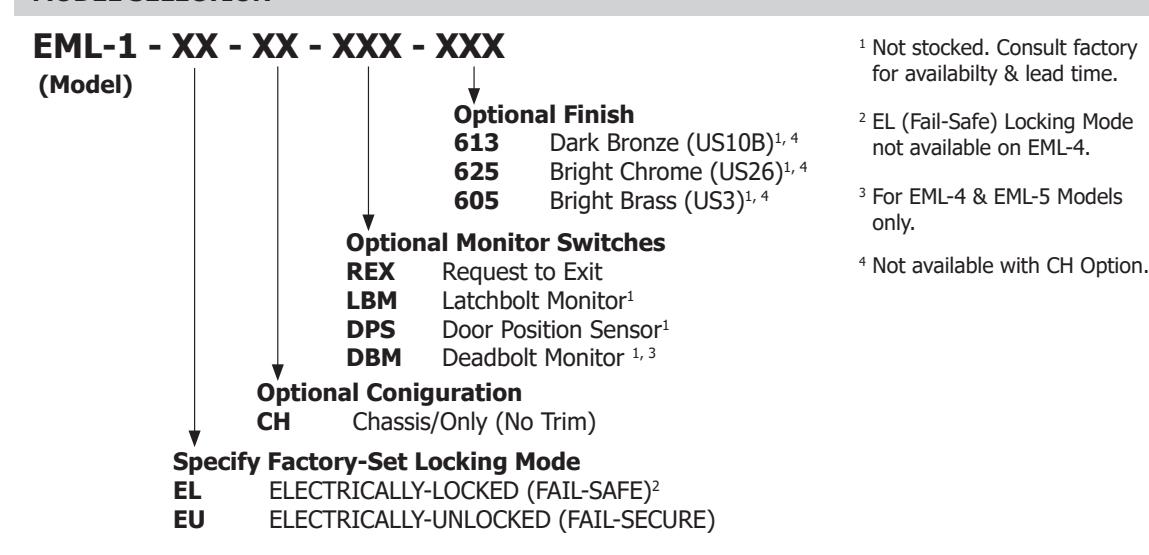

MODEL SELECTION
