EL019 Cut Sheet – Electrified 3by4 Offset lead-Lined Intermediate Pivot

Open the original PDF document

View PDF

Pivots & Pivot Sets

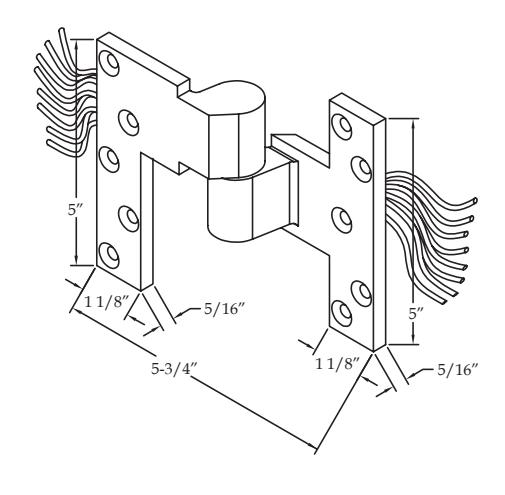

Standard Features

  • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
  • Mortises into side jamb and hinge edge of door
  • Handed Specify LH or RH
  • For use with 1-½" offset pivot sets
  • Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material

Options

  • • EZ EZ Connect Molex® Connectors for installation ease
  • • SEC Security fasteners

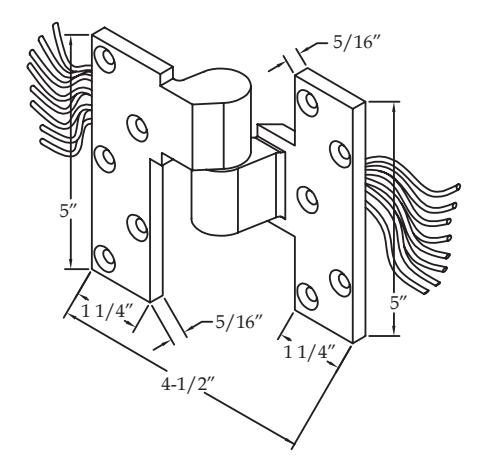

Standard Features

  • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
  • Mortises into side jamb and hinge edge of door
  • Handed Specify LH or RH
  • • For use with ¾" offset lead-lined pivot sets
  • 1-¾" lead-lined doors
  • Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material

Options

  • • EZ EZ Connect Molex® Connectors for installation ease
  • • SEC Security fasteners
