LHRB

RHRB

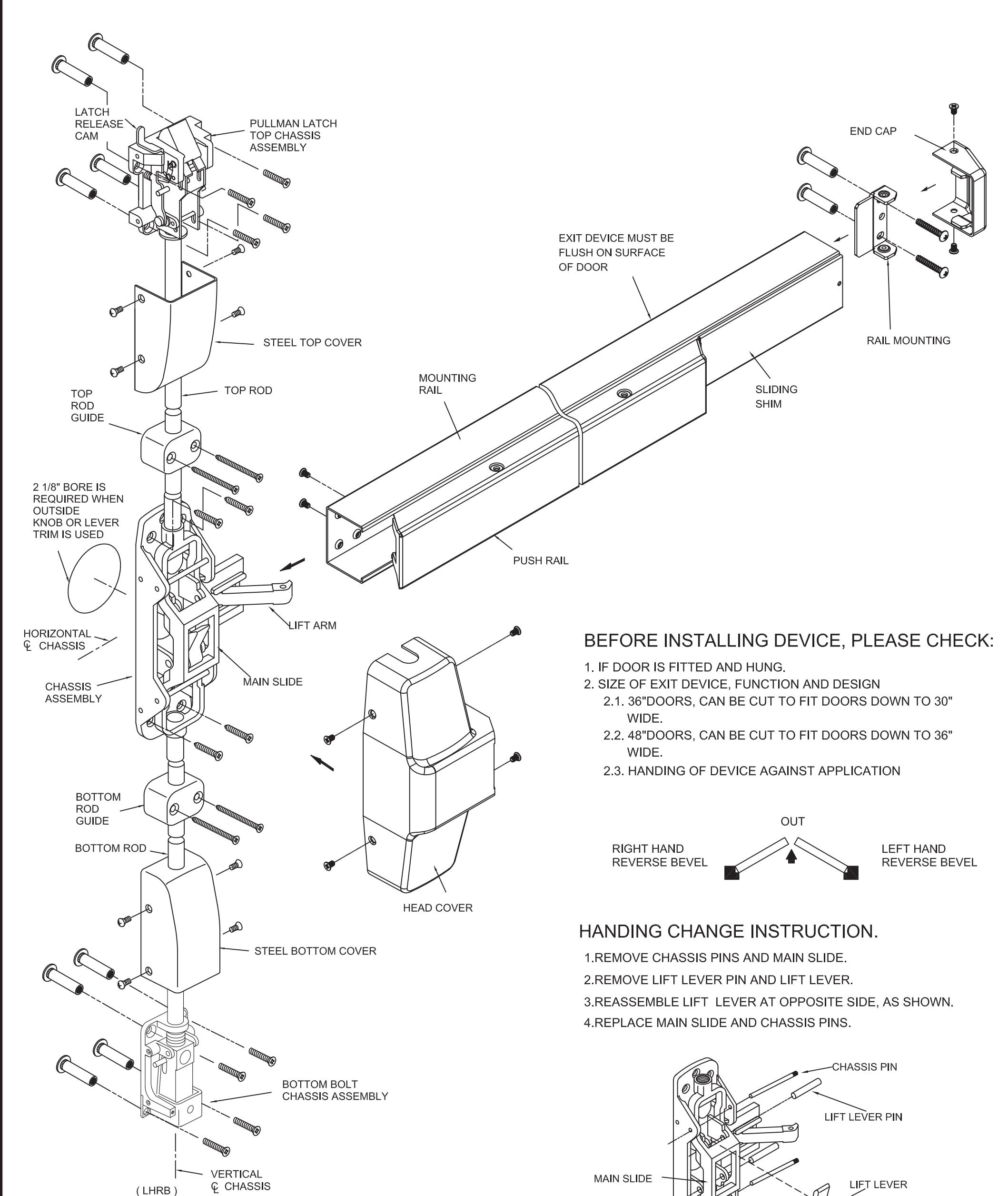

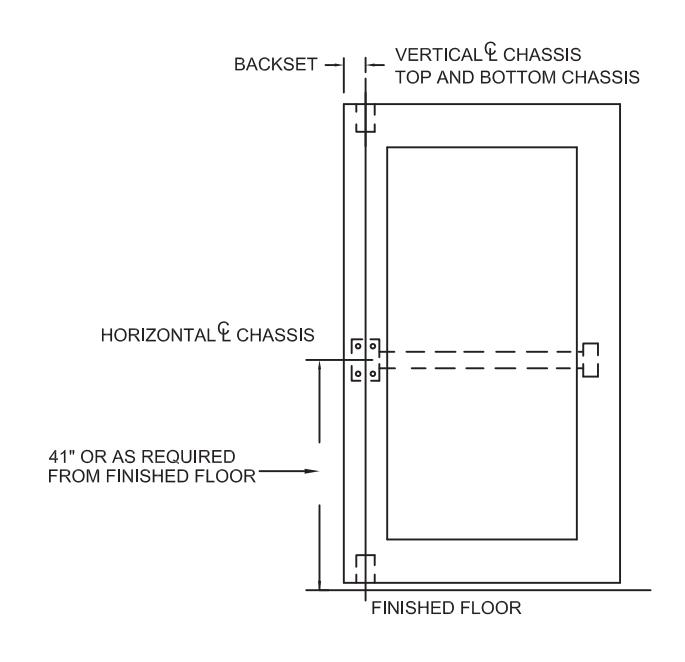

1. MARK VERTICAL AND HORIZONTAL REFERENCE LINES ON DOOR.

DETERMINE BACKSET TO LOCATE VERTICAL REFERENCE LINE. 1. IF LOCK STILE IS 4-1/2" WIDE OR WIDER,

2. IF LOCK STILE IS LESS THAN 4-1/2" WIDE, BACKSET IS HALF OF THE EXPOSED WIDTH OF LOCK STILE.

4. ATTACH TOP AND BOTTOM CHASSIS NOTE : SHIM TOP STRIKE WHEN NECESSARY TO OBTAIN 1/8" GAP REQUIRED (2) NO. 12 FLAT HEAD SCREWS 1. MOUNT TOP STRIKE PER LOCATION IN 2ND STEP. 2. SCREW TOP ROD INTO MAIN SLIDE. воттом STEEL ROD GUIDE 3. SLIDE GUIDE AND COVER ONTO TOP ROD CHASSIS BY INSERTING ADJ PIN. THRU RETRACTOR AND MIDDLE HOLE TOP ROD IN ROD. (SEE FIG AT LEFT) BOTTOM ROD ADJ TOP CHASSIS MOUNTING HOLES LINE UP WITH LOCATION MARKED IN 2ND. STEP. 4. MOUNT BOTTOM CHASSIS SAME WAY AS TOP CHASSIS (SEE FIG AT RIGHT) 5. AS TO THE BOTTOM STRIKE VARIATION PLEASE REFER TO THE FIG. BELOW FOR THE CORRECT BOTTOM ROD POSITION. 6. FASTEN GUIDE. IF SHORTER ROD REQUIRED, CUT TO LENGTH AND DRILL 1/8" HOLE THRU. BOTTOM BOLT CHASSIS ASSEMBLY REMOVABLE BOLT PIN MAIN SLIDE VERTICAL © CHASSIS STEEL SCREWS AND MORTISE NUTS

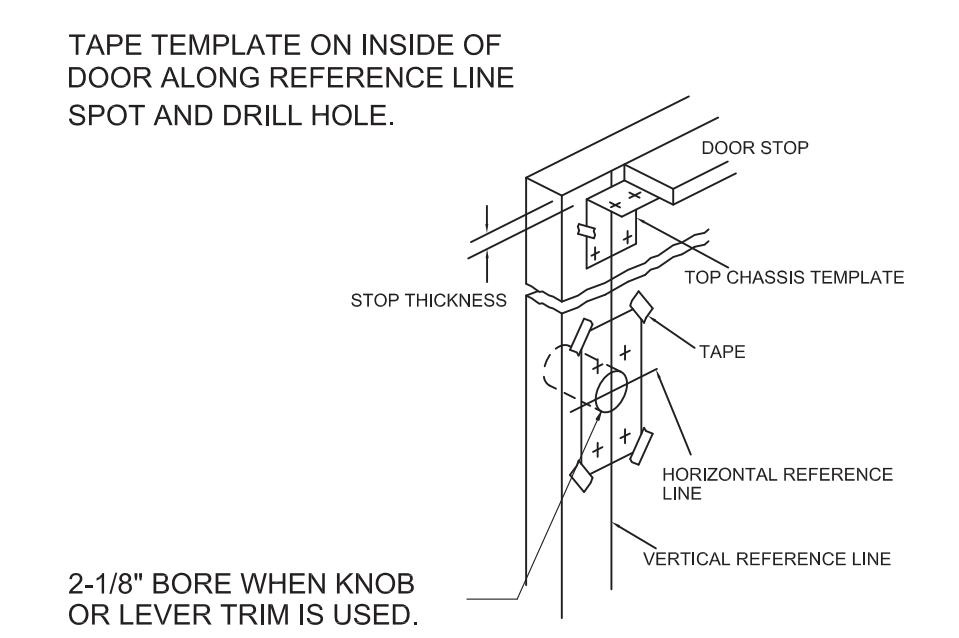

2. PREPARE DOOR

BACKSET IS 2-3/4".

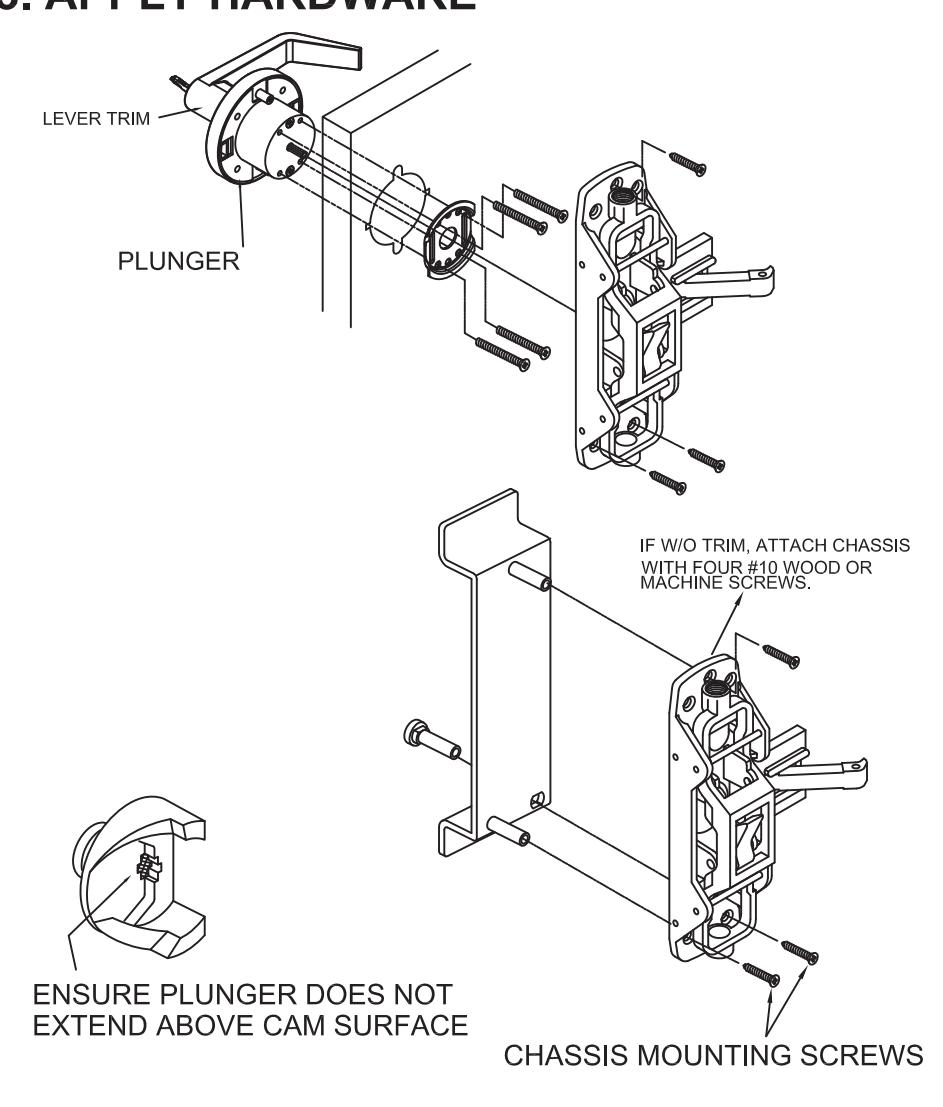

3. APPLY HARDWARE

5. APPLY RAIL ASSEMBLY

FLAT STRIKE

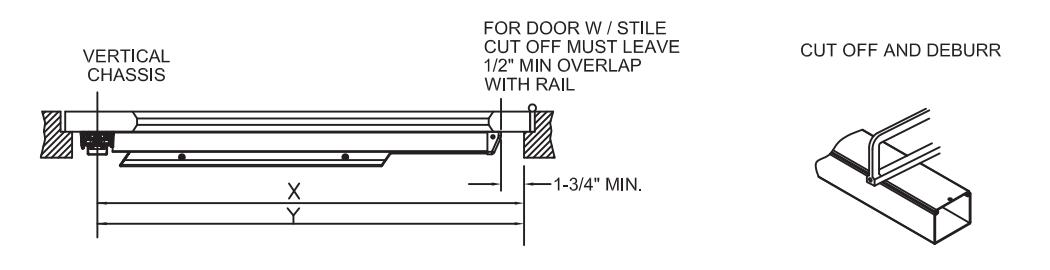

• 1. CHECK THE SIZE OF DEVICE, IF CUTTING TO LENGTH IS REQUIRED.
• 2. DETERMINE CUT OFF LENGTH "X" BY SUBTRACTING 1-3/4" FROM "Y", MARK CUT OFF POINT ON MOUNTING RAIL.

STRIKE THRESHOLD

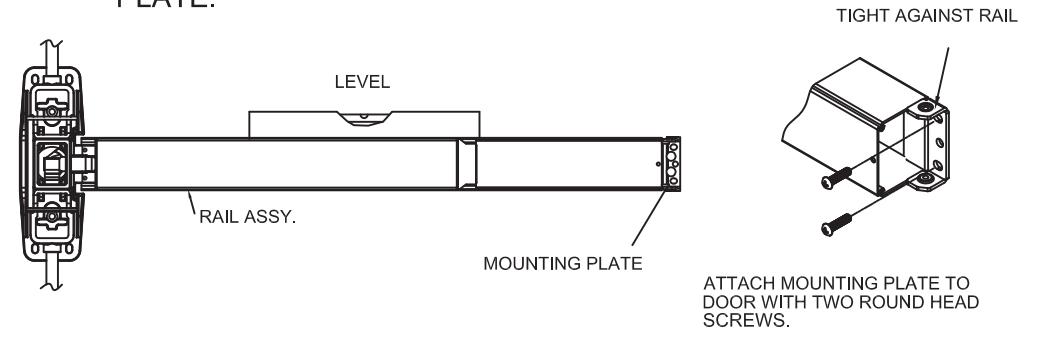

3. DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASSIS. LEVEL RAIL AND FASTEN CHASSIS AND MOUNTING PLATE.

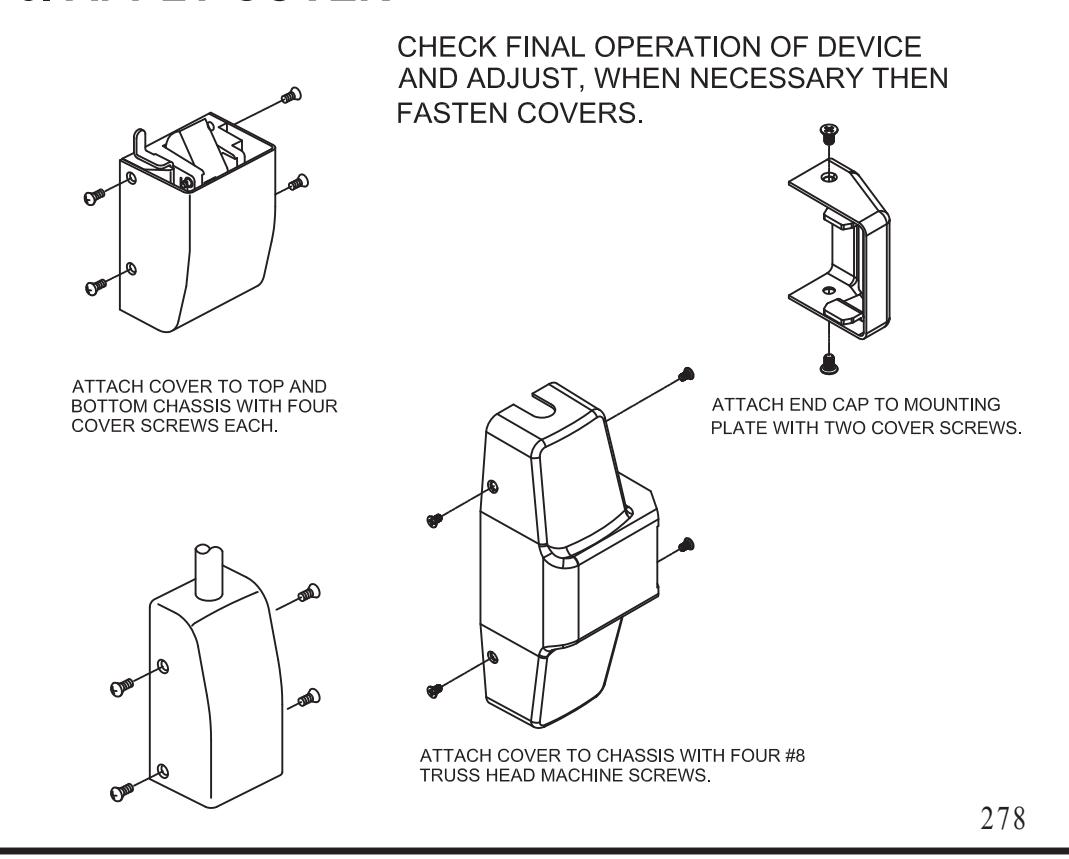

6. APPLY COVER
