Templates

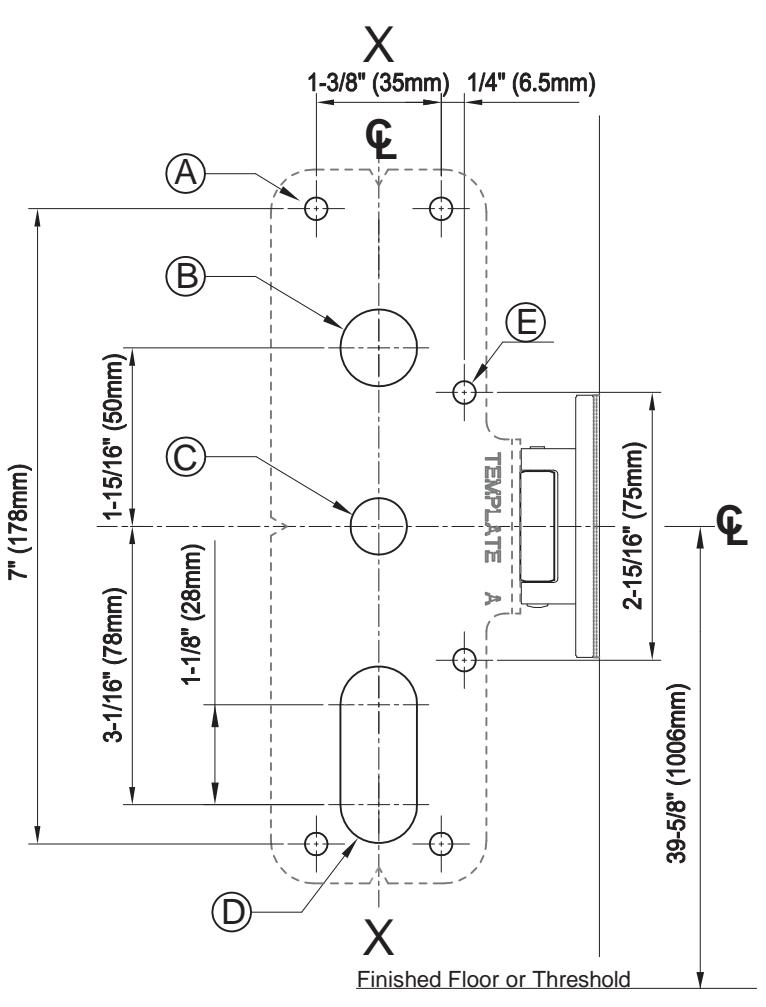

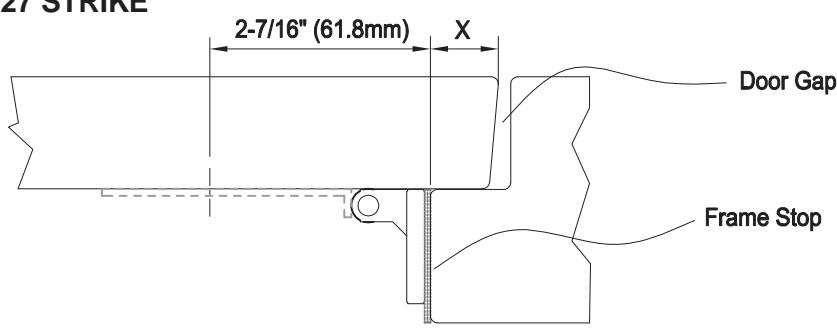

FOR ED1500F with 108 AND 227 STRIKE

NOTATION	ILL.	APPLICATIONS	DIMENSION
			METAL	WOOD
A		EXIT ONLY	#25 DRILL #10-24 TAP	3 (1/8") DRILL PILOT 1" DEEP
		SEX BOLT OR TRIM	6 (1/4") DRILL (DEVICE SIDE) 10.3 (13/32") DRILL (TRIM SIDE)
B		DOUBLE CYLINDER	22 (7/8") DRILL (CUT DEVICE SIDE)
C		OUTSIDE CYLINDER	16 (5/8") DRILL (CUT DEVICE SIDE)	16 (5/8") DRILL (CUT THRU)
D		TRIM WITH WORKING LEVER	22 (7/8") DRILL (CUT DEVICE SIDE ONLY)
E		SUPPORT BRACKET	#25 DRILL #10-24 TAP	3 (1/8") DRILL PILOT 1" DEEP

Templates

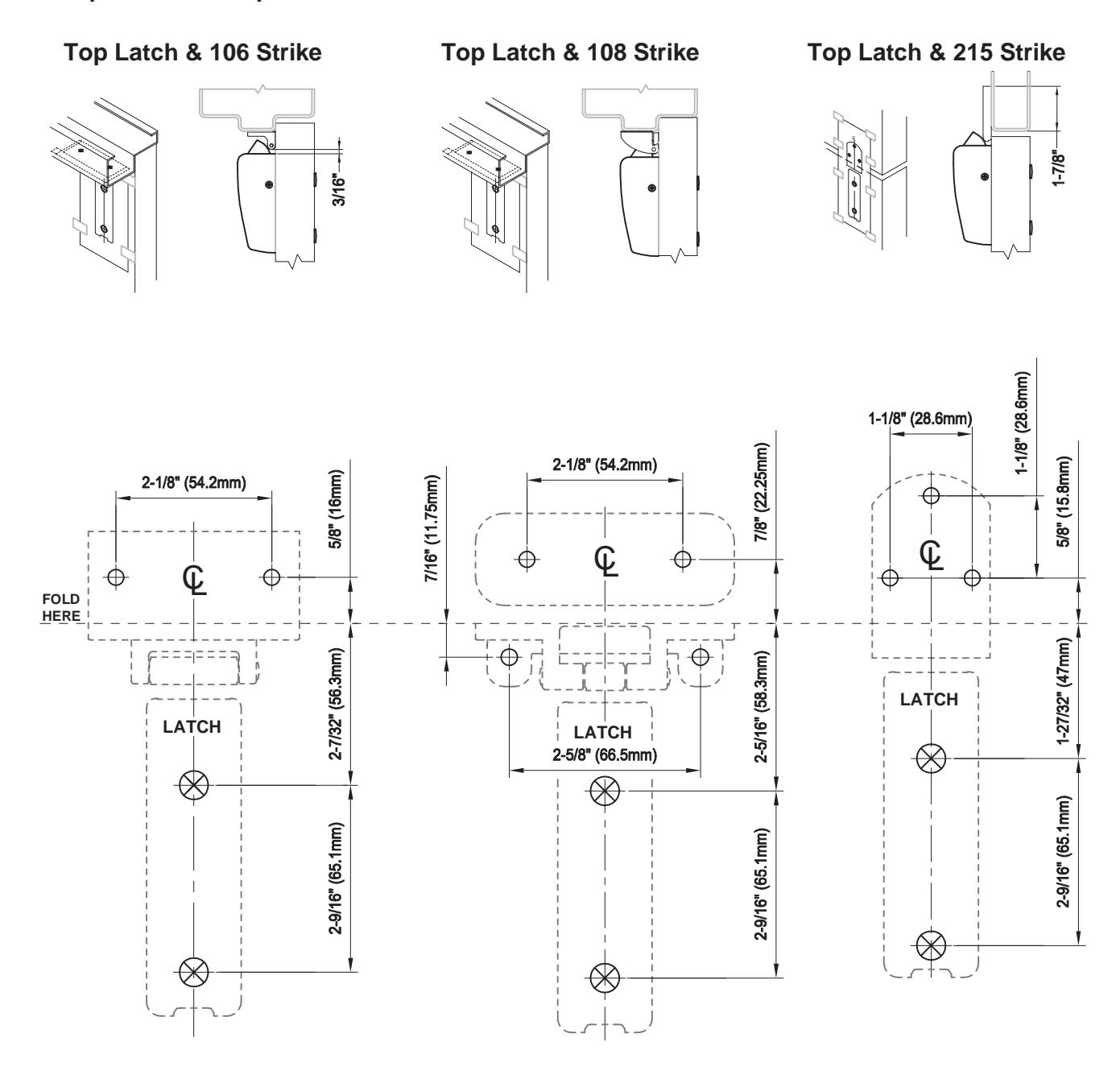

Preparation of Top Latch for SVR/3PT

Illustration	Amulications	Dimension
	Applications	Metal	Wood
0	Strike Screw	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
$\backslash otimes$	Sex Bolt	5/16" (8mm) Drill (Device Side) 13/32" (10.3mm) Drill (Outside)

Templates

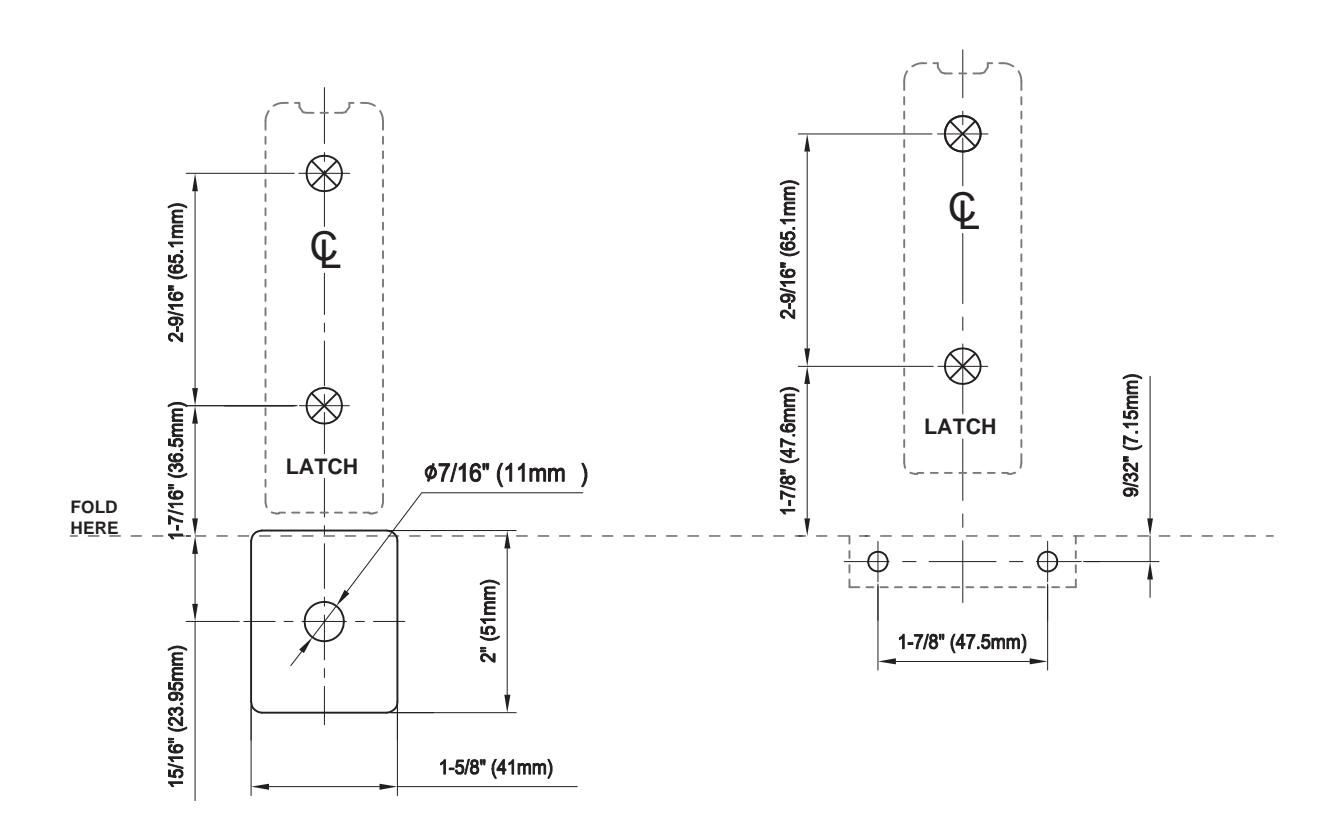

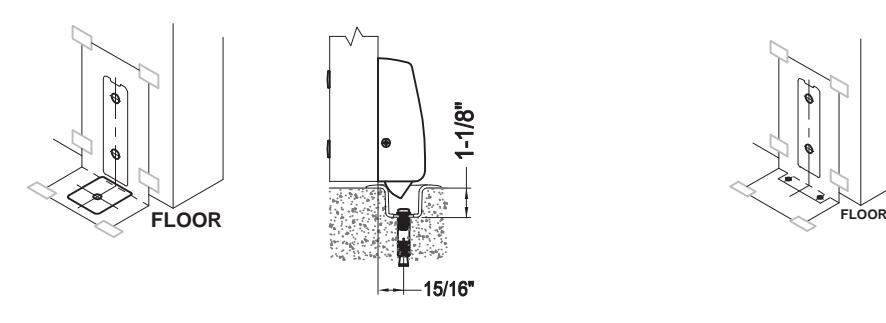

Preparation of Bottom Latch for SVR/CVR/3PT

Bottom Latch & 227 Strike

Illustration		Dimension
	Applications	Metal	Wood
	Strike Screw	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
	Sex Bolt	5/16" (8mm) Drill (Device Side) 13/32" (10.3mm) Drill (Outside)
