Templates

FOR ED1200F WITH 108 TOP AND 227 BOTTOM STRIKE

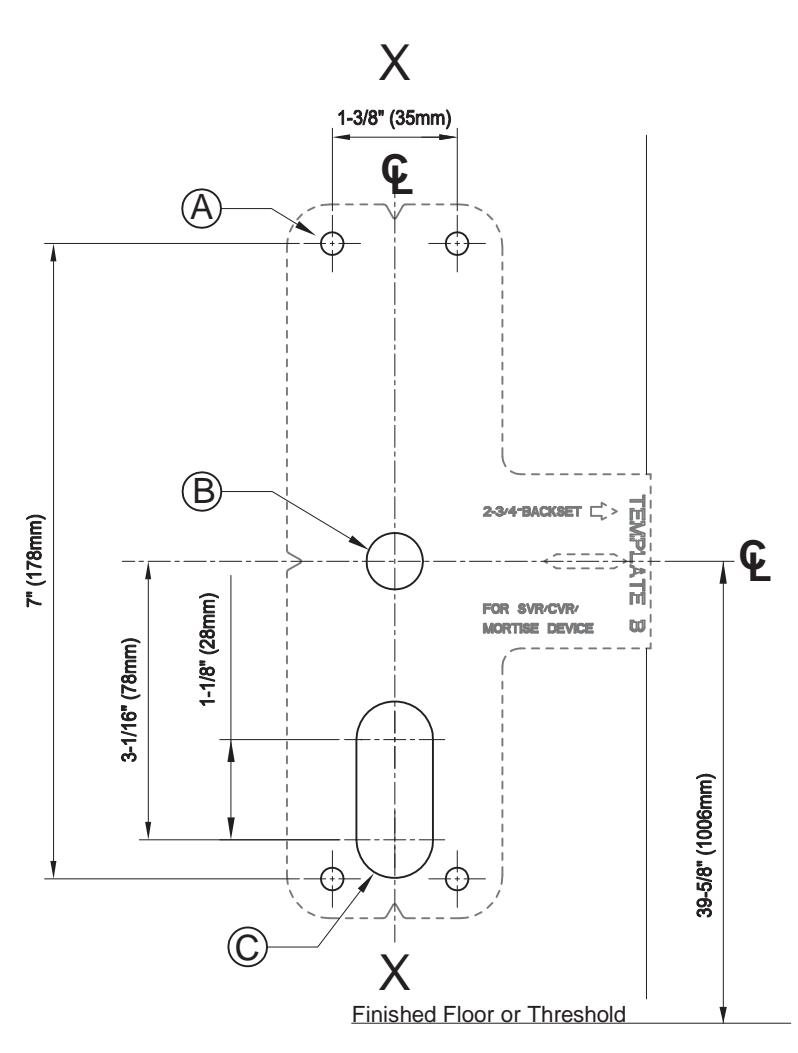

Notation	Illustration	Applications	Dimension
			Metal	Wood
А	0	Exit Only	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
		Sex Bolt or Trim	1/4" (6mm) Drill (Device Side) 13/32" (10.3mm) Drill (Trim Side)
В	0	Outside Cylinder	5/8" (16mm) Drill (Cut Device Side)	5/8" (16mm) Drill (Cut Thru)
С	0	Trim with Working Lever	7/8" (22mm) Drill (Cut Device Side Only)

Templates

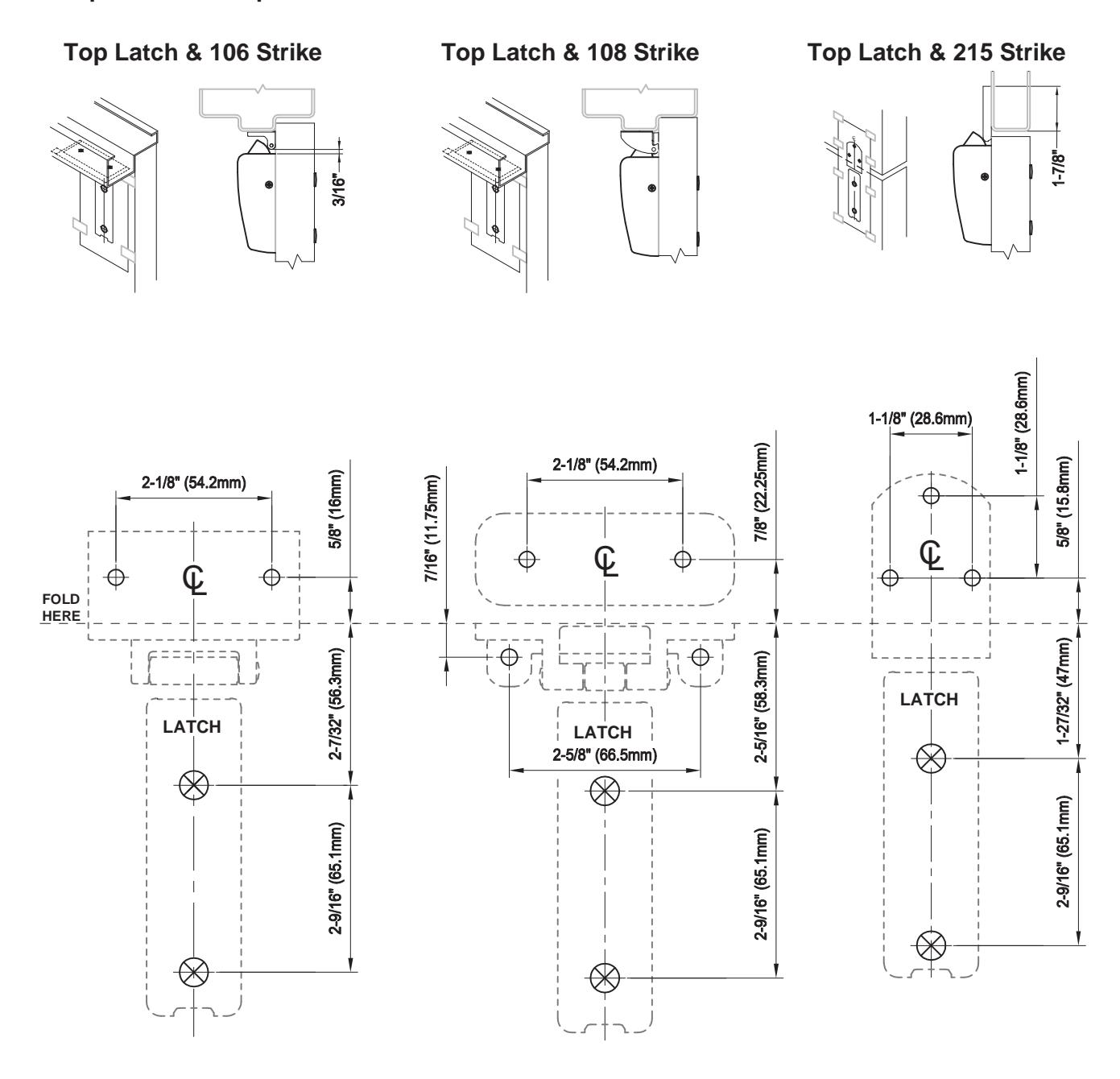

Preparation of Top Latch for SVR/3PT

Illustration	Amulications	Dimension
	Applications	Metal	Wood
0	Strike Screw	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
$\backslash otimes$	Sex Bolt	5/16" (8mm) Drill (Device Side) 13/32" (10.3mm) Drill (Outside)

Templates

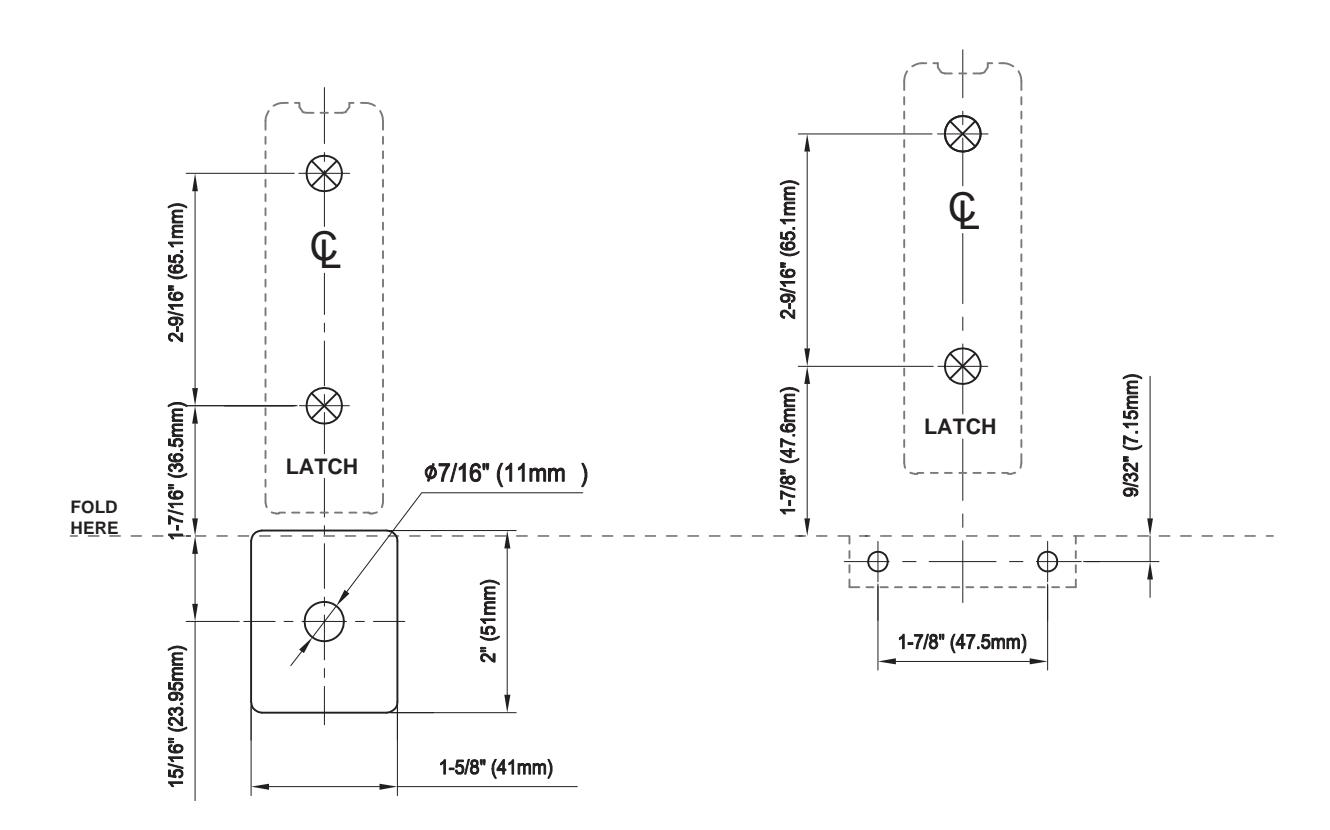

Preparation of Bottom Latch for SVR/CVR/3PT

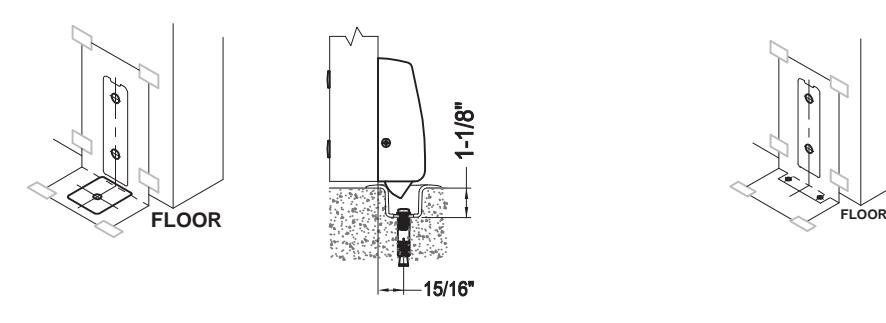

Bottom Latch & 227 Strike

Illustration		Dimension
	Applications	Metal	Wood
	Strike Screw	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
	Sex Bolt	5/16" (8mm) Drill (Device Side) 13/32" (10.3mm) Drill (Outside)
