Templates

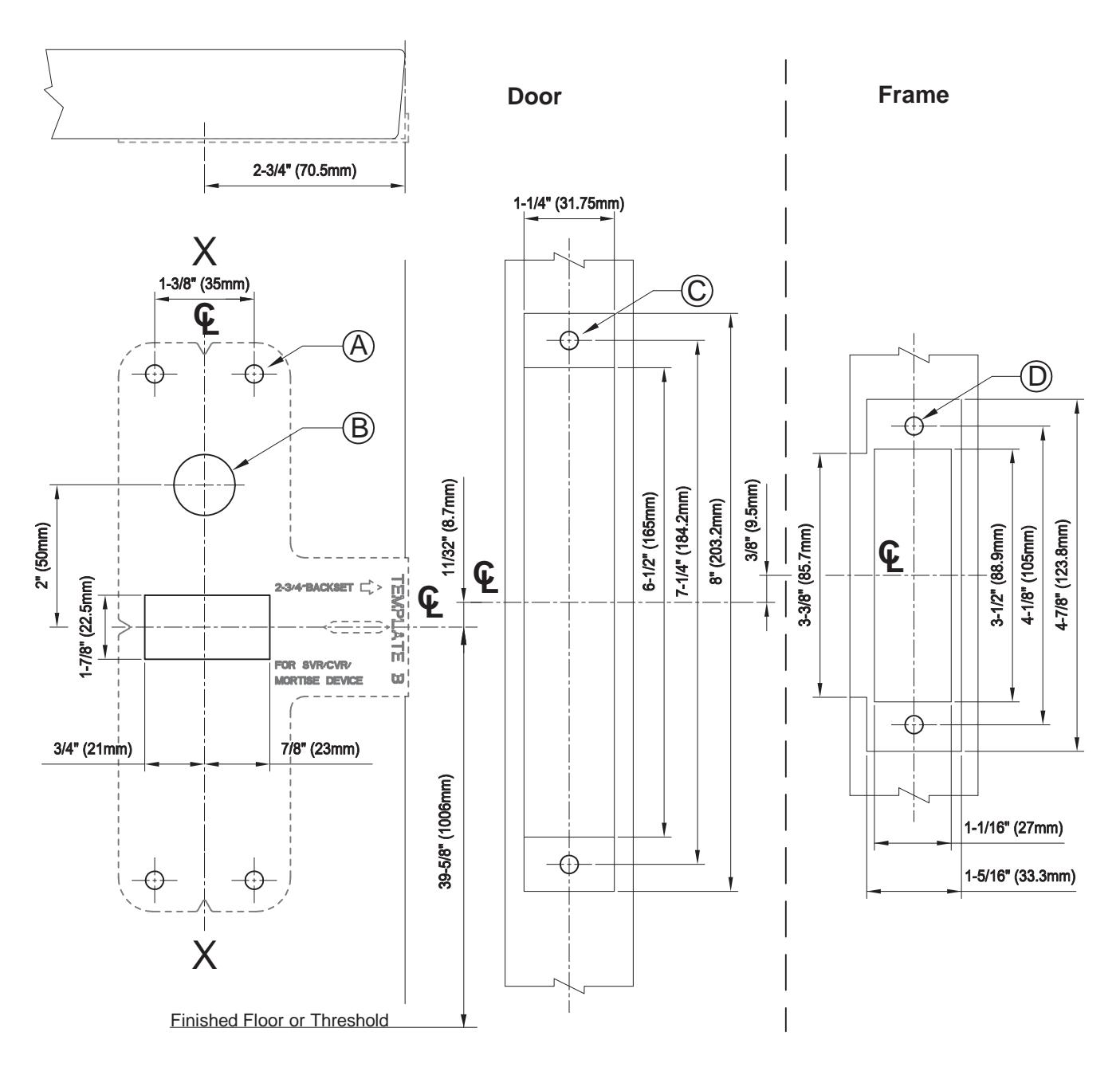

FOR ED1400/ED1400F WITH 306 STRIKE

			Dimension
Notation	Illustration	Applications	Metal	Wood
A		Exit Only	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
		Sex Bolt or Trim	1/4" (6mm) Drill (Device Side) 13/32" (10.3mm) Drill (Trim Side)
B		Double Cylinder	7/8" (22mm) Drill (Cut Device Side Only)
C		Mortise Lock Case	#16 Drill #12-24 Tap	5/32" (4mm) Drill Pilot 1" Deep
D		Strike	#16 Drill #12-24 Tap	5/32" (4mm) Drill Pilot 1" Deep

Templates

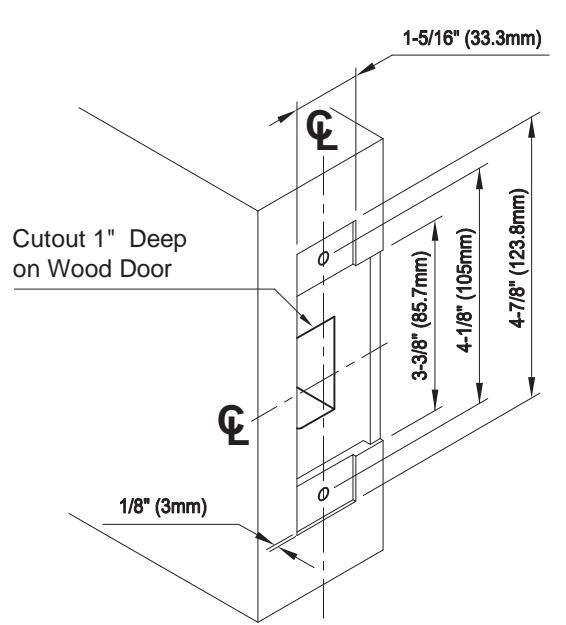

Preparation of Strike for Mortise

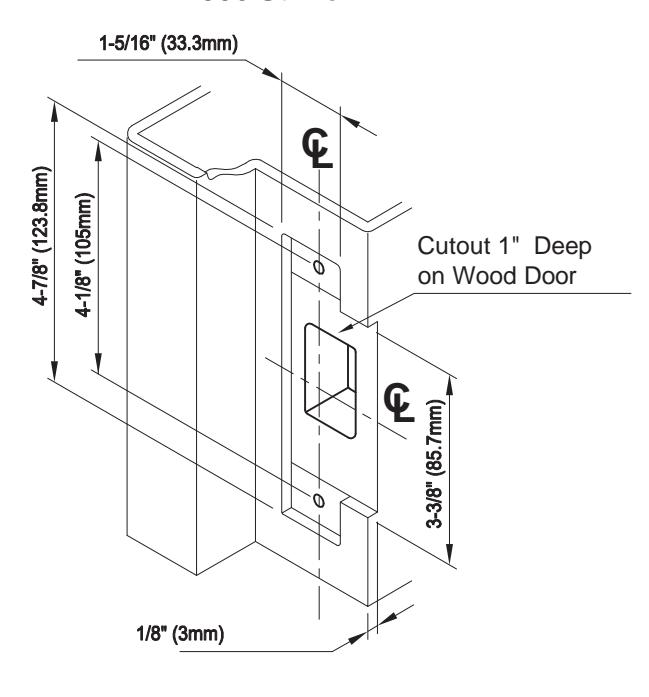

306 Strike

SINGLE DOOR

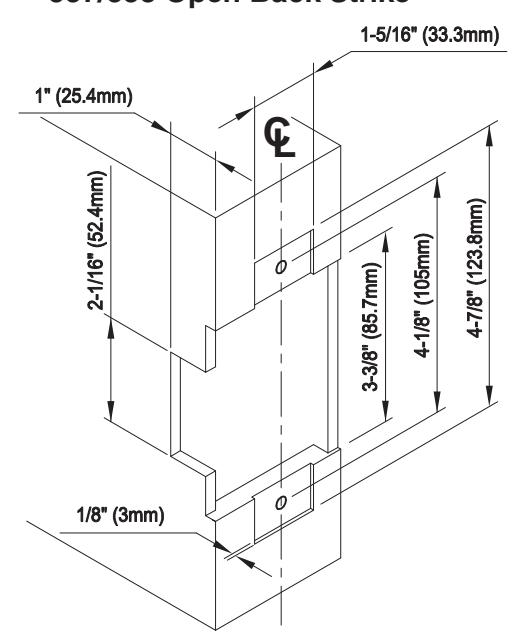

337/338 Open Back Strike

DOUBLE DOOR

	Applications	Dimension
Illustration		Metal	Wood
0	Strike Screw	#25 Drill #10-24 Tap	1/8" (3mm) Drill Pilot 1" Deep
