View PDFElectrified Cylindrical Lockset
ECL-1
DynaLock ECL-1 Series is a UL Listed, ANSI/BHMA Grade 1 electrified cylindrical lock, featuring a clutching lever design and a Schlage C-type keyway standard. Available in either fail-safe (electrically-locked) or fail-secure (electrically-unlocked) operating configurations, the ECL-1 fits door thicknesses of from 1-9/16" to 2-1/8". The ECL-1 operates on 12-24 VAC/VDC input, is UL Listed for use on labeled fire doors rated up to 3 hours and includes standard bent lever trim.
Current Draw: 250mA @ 12 VDC; 150 mA @ 24 VDC
| MODEL | PRODUCT | FINISH | WEIGHT |
|---|---|---|---|
| ECL-1 | Electrified Cylindrical Lockset, Storeroom Function | 626 (US26D) | 5.0 Lbs. |

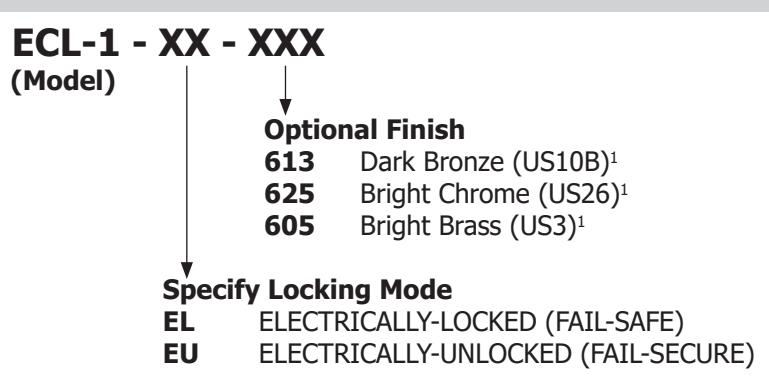

MODEL SELECTION
1 Not stocked. Consult factory for availabilty & lead time.
