EntryCheck® E77

Standalone Electronic Exit Device

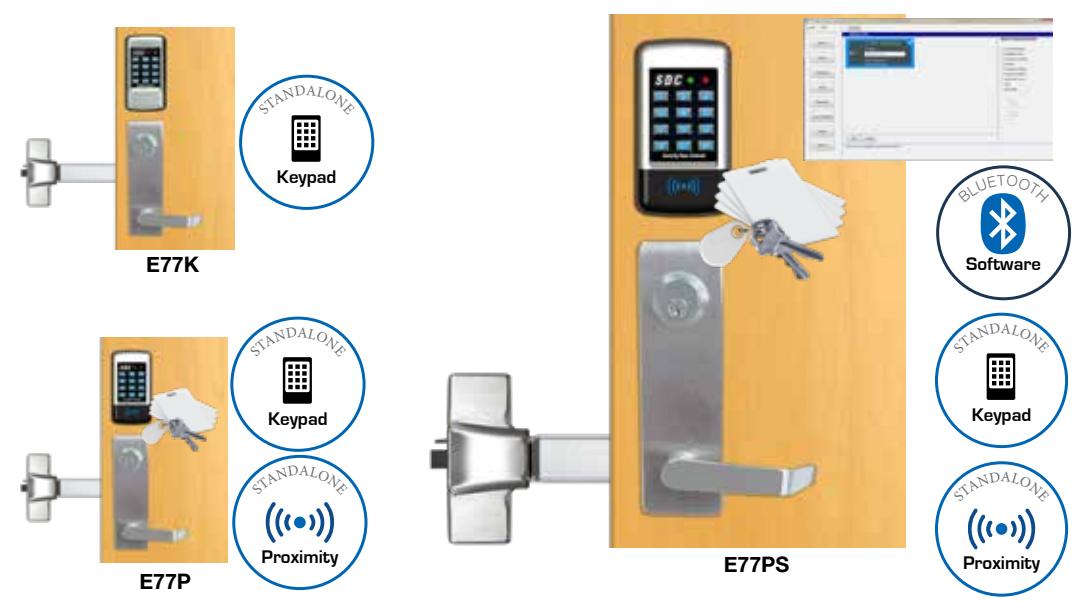

The EntryCheck® E77 Series include an SDC rim exit device and trim. The E77 locksets are an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E77 locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized exit devices.

Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 Digit PIN Codes
Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit Existing Lock Door Prep
SDC S6100 Rim Exit Device
Heavy Duty ANSI Grade 1

E77PS additional Features:

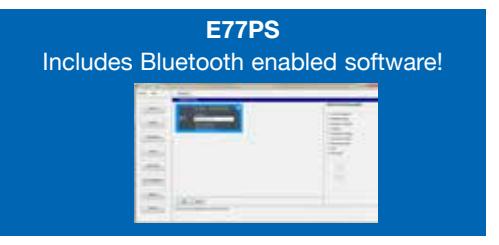

Point-and-Click Microsoft PC-Based Software
Keypad PC Software Programmable
Supports Up to 1,000 Unique Doors
Manage Individual Door Parameters, Access Schedules, User Groups, Holidays, Temporary Users
Lock settings and related parameters are easily cloned to other locks, permitting quick multi-lock installations
Data Import: All lock parameters and user data can easily be imported from existing databases, locks, or spreadsheets
Database Backup Utility: Password protected SQL dbase may be saved on any PC
Wireless Information Transfer: Lock programming and audit trail may be uploaded or downloaded using a Bluetooth enabled PC or laptop

Audit Trail Information: Locks will maintain a record of the last 10,000 events to provide increased accountability. Audits may be downloaded to Excel spreadsheets where information is easily analyzed, sorted or printed
User Entries Logged with Time and Date
Remote Input Activation is Logged
Door Forced/Door Ajar/Duress Alarms Are Logged
User Reports: Users may be exported to Excel spreadsheets where information is easily sorted or printed

EXIT DEVICE FEATURES

• The SDC S6000 Spectra™ series panic and fire rated exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes. The SDC Spectra series exit devices have a modern look and quiet push pad operation.

EXIT DEVICE SPECIFICATIONS

Device Head Cover	Zinc Alloy or Stainless Steel
Chassis	Steel, Plated
Housing	Extruded Aluminum
Push Bar Base	Extruded Aluminum
Touch Plate	Stainless Steel
Mounting	Machine screws standard. Sex bolts optional. Order "SNB" for wood or non-reinforced metal doors
End Cap	Zinc Alloy
Hand	Non-Handed
Dogging	Allen-Type Key Furnished
Finish	630 Stainless Steel

KEYPAD SPECIFICATIONS


Power	4 Size AA Batteries (Alkaline) 100,000 cycles or External 12VDC Power @ 30mA
Inputs	1 Request to Exit 1 Door Position Switch
Output	1 Aux Relay Contacts SPDT 1A @ 30VDC
Temperature	-4ºF to +140ºF (-20ºC to +60ºC)
Humidity	5% to 95% non-condensing
Latch Bolt	9/16" Throw
Backset	2-3/4"
Strike	4-7/8" ANSI A115.2
Door Thickness	1-3/4" to 2-1/8"
PC Requirements

PC Requirements

Supported	Windows 7/8, 10
Operating Systems	(32-Bit and 64-Bit Systems)
Processor	2GHz or Faster Recommended
RAM	2GB or More Recommended
Hard Disk Space	1GB or More Recommended
Required	Windows Administrative Rights
