EntryCheck® E76

Standalone Electronic Mortise Locksets

Mortise Lock with Deadbolt available in K, P or PS Keypad Option

The EntryCheck® E76 Series includes an SDC Mortise lock and is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E76 locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets.

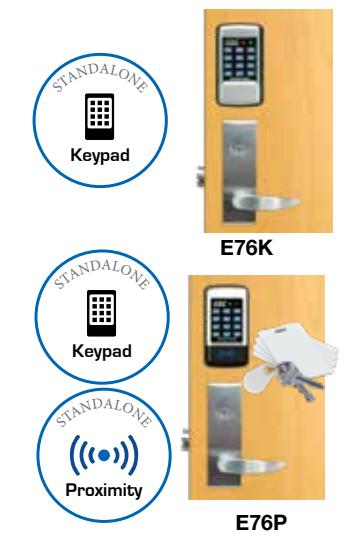

FEATURES E76K/E76+K and E76P/E76+P:

Keypad Programmable
3,000 Users, 32 Temporary Users
4 to 6 Digit PIN Codes
Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit Existing Lock Door Prep
Motorized SDC Mortise Lockset
Heavy Duty ANSI Grade 1
Vandal Resistant Lever Clutch Mechanism

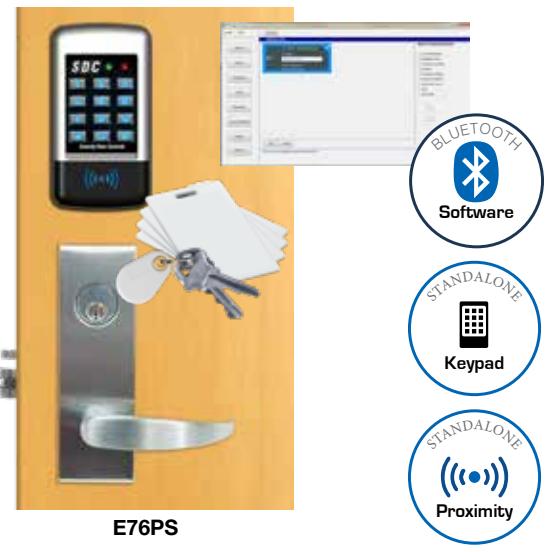

E76PS/E76+PS additional Features:

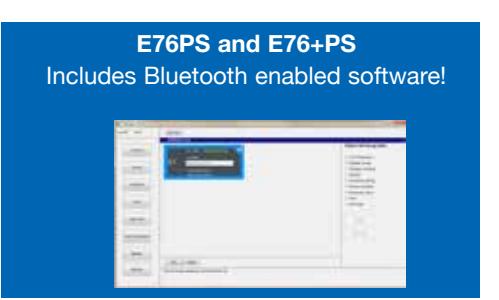

Point-and-Click Microsoft PC-Based Software
Keypad PC Software Programmable
Supports Up to 1,000 Unique Doors
Manage Individual Door Parameters, Access Schedules, User Groups, Holidays, Temporary Users
Lock settings and related parameters are easily cloned to other locks, permitting quick multi-lock installations
Data Import: All lock parameters and user data can easily be imported from existing databases, locks, or spreadsheets
Database Backup Utility: Password protected SQL dbase may be saved on any PC
Wireless Information Transfer: Lock programming and audit trail may be uploaded or downloaded using a Bluetooth enabled PC or laptop

Audit Trail Information: Locks will maintain a record of the last 10,000 events to provide increased accountability. Audits may be downloaded to Excel spreadsheets where information is easily analyzed, sorted or printed
User Entries Logged with Time and Date
Remote Input Activation is Logged
Door Forced/Door Ajar/Duress Alarms Are Logged
User Reports: Users may be exported to Excel spreadsheets where information is easily sorted or printed

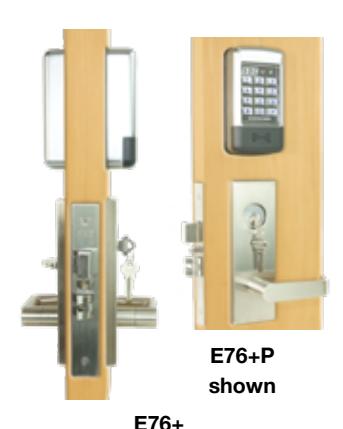

MORTISE LOCK FEATURES

SDC Fully Featured Mortise Lockset with Complete Application Flexibility for New Construction or Retrofit of Major Brand Mechanical Locks
New or Retrofit Application, Replaces Most Mechanical Locks
Order with SDC Trim or Less Trim. Compatible with Schlage Trim Provided by Others.
Key Latch Retraction
ANSI Grade 1

KEYPAD SPECIFICATIONS


Power	4 Size AA Batteries (Alkaline) 100,000 cycles or External 12VDC Power @ 30mA
Inputs	1 Request to Exit 1 Door Position Switch
Output	1 Aux Relay Contacts SPDT 1A @ 30VDC
Temperature	-4ºF to +140ºF (-20ºC to +60ºC)
Humidity	5% to 95% non-condensing
Keypad Finish	Q 626 Dull Chrome - Standard B 693 Black
Latch Bolt	9/16" Throw
Backset	2-3/4"
Strike	4-7/8" ANSI A115.2
Door Thickness	1-3/4" to 2-1/8"

PC Requirements


Supported Operating Systems	Windows 7/8, 10 (32-Bit and 64-Bit Systems)
Processor	2GHz or Faster Recommended
RAM	2GB or More Recommended
Hard Disk Space	1GB or More Recommended
Required	Windows Administrative Rights
