CHOICE OF PROX CARD, FINGER PRINT OR KEYPAD ENTRY

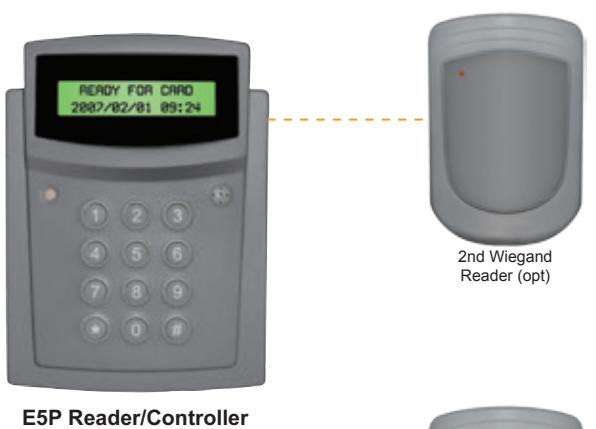

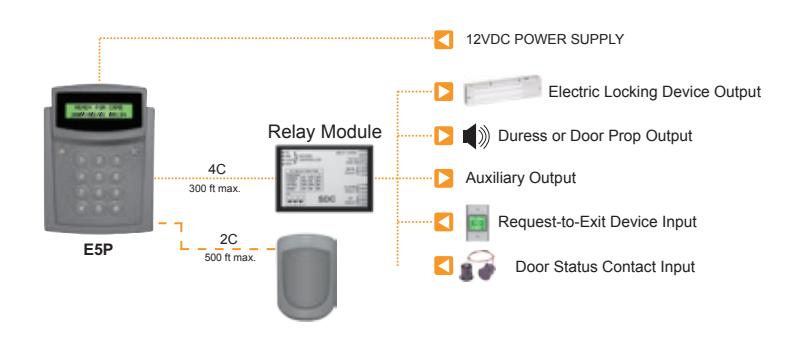

STANDALONE CONFIGURATION
E5 ACCESS
CONTROL SYSTEM
Choice of Prox Card, Fingerprint or Keypad Entry
• Standalone or PC Managed
• Network up to 99 Readers
Features Features
- HID Compatible Proximity reader
- Up to 4" read range
- 3000 cardholders
- Network configuration up to 99 devices
- Anti-passback
- Access mode
- 6 time zones
- 12 month programmable holiday schedule
- Password Required time zone
- Guard Patrol Function
- Door prop open alarm
- Forced entry alarm
- Access mode selectable
- 1. Proximity card only
- 2. Proximity card + PIN 3. Key-in card number only

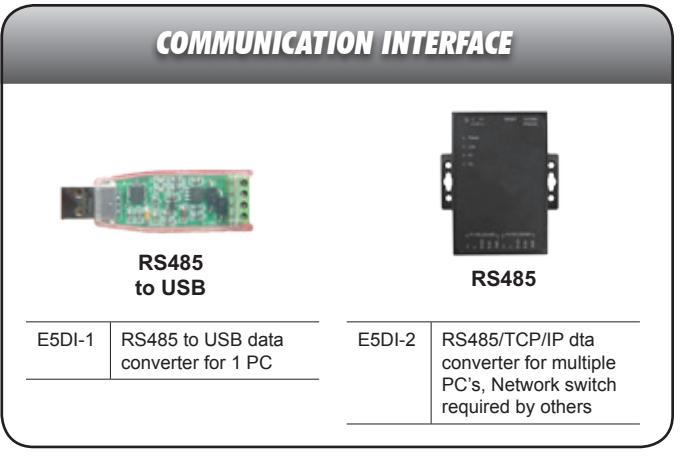

- Communication interface: RS232 or RS485
- Can be used as stand alone device without personal computer connected
- Use of password is time zone programmable if card data with password access selected
- Two types alarm status available
- 1. Force entry
- 2. Door prop open alarm
- Power saver function. The LED backlight turns itself off after 3 minutes
- Lock relay activation time, alarm function, anti-duress and door prop open alarm are individually programmable from 1 to 255 seconds
- Communication baud rate can be programmed via keypad
- Memory Buffer 3500 transactions
- 1. Invalid Card.
- 2. Restricted time.
- 3. Time zone unmatched.
- 4. Code unmatched.

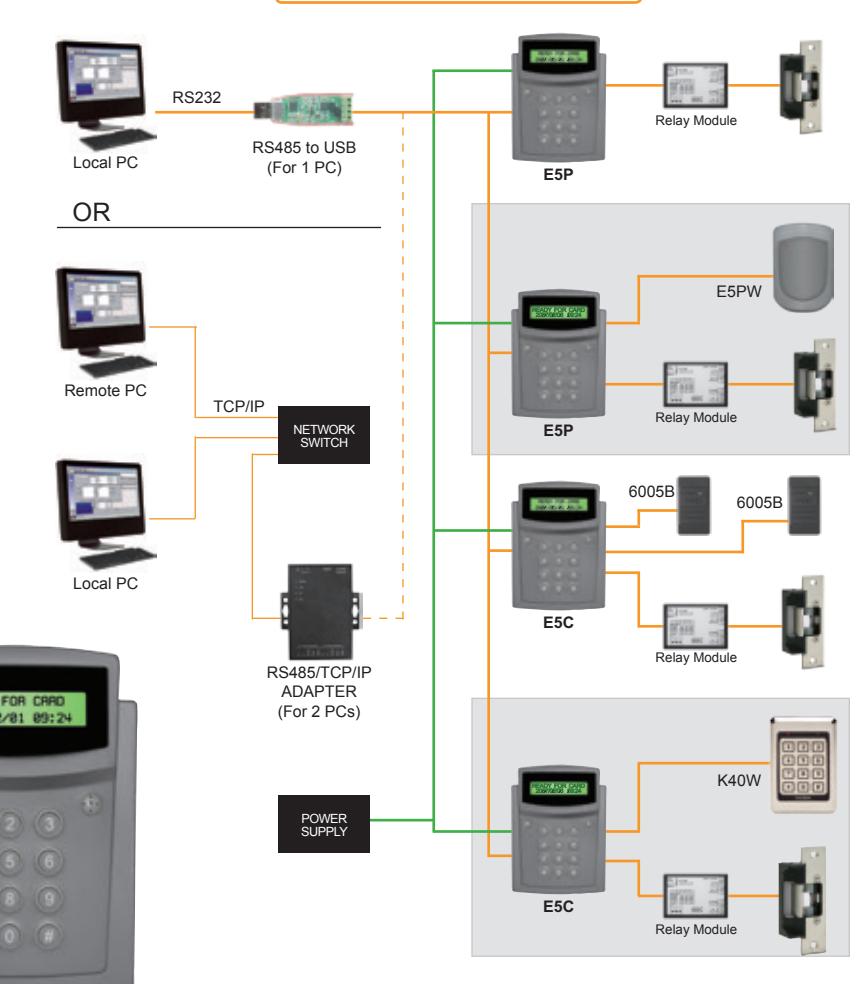

NETWORK CONFIGURATION
International Door Closers, Inc.
West: 800-544-4422 • East: 800-225-6737
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
| E5 Specifications | |
|---|---|
| Model | E5P |
| Card Capacity | 3000 cards holders |
| Memory Buffer | 3500 transactions |
| E5P Reader Module Type | HID compatible proximity reader 125KHz |
| E5P Reader Range |
Card – up to 4" 125 KHz
Key Fob – Up to 2" inches 125 KHz Based on HID ProxCard® II & ProxKey® II in noise free environment |
| Display | 16 characters x2 lines LCD backlight |
| Battery Capacity |
Timer IC and data maintained up to
2 months after power failure |
| Keypad | 12 Key (0-9, X, #) |
| Indicator | 2-color LED (green/red) |
| Communication Interface | RS485, TCP/IP |
| Case Material | ABS (UL 94V-0) |
| Dimension | 4.375" W x 6" H x 1.75" D (110 x150 x 45 mm) |
| Weight | 14 ounces (380 g) |
| Working Voltage | DC 10-15 volts |
| Power Consumption | 300mA Max @ 12VDC |
| Operating Temperature | 32˚F - 122˚F (0˚C~50˚C) |
| Humidity | 5%-95% (Non condensing) |
| Approved | IEC 529 IP34 |
