Excel™ E300 Micro Cabinet Lock

SDC DESIGNED AND MANUFACTURED

Eliminate keys and expand the reach of access control systems to drawers, cabinets and lockers - any critical use - where the application of a compact, specialized electromagnetic lock provides a higher level of security. SDC's E300 is a connected access control solution that is virtually maintenance free and has a lock status output for remote

MODEL

Magnetic Lock 300lbs. holding force

FEATURES

• Failsafe Operation
• Easy installation in small cabinets or restricted spaces. No special tools are required.
• No moving parts, virtually maintenance free.
• Spike and surge protection for solid-state devices on same line.

APPLICATIONS

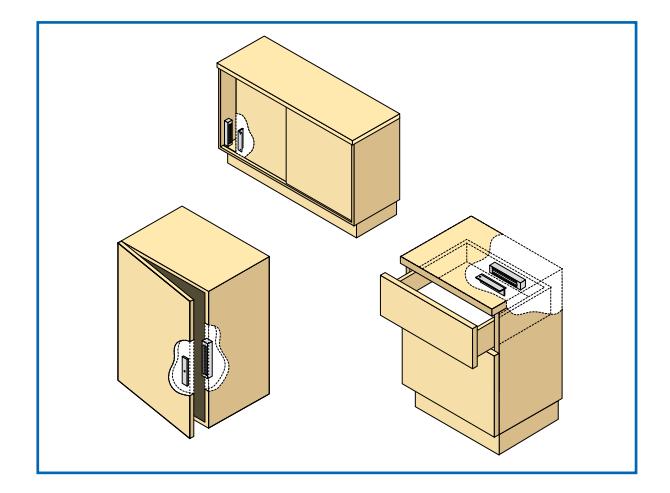

Display cases Cabinets Drawers Gun safes Machine equipment Package pass through doors housings

• Lock Status
• Interlocking Quick Mount Assembly
• Mounting Bracket with Sheet Metal Screws
• Wire Access Chamber with Terminal Block
• Dual Voltage 12/24VDC
• 628 Clear Anodized Aluminum housing

SPECIFICATIONS MECHANICAL

Holding Force 300 Lbs/136 Kg 7" L x 1.625" H x 0.875" D; Lock Armature 5.125" L x 1.25" H x 0.3125" D; ELECTRICAL Circuitry & Wiring PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input Dual 12/24VDC +/-10%, field selectable Voltage jumper pin connections Current 360 mA @ 12VDC; 180 mA @ 24VDC Lock Status Contact SPDT, 250 mA @ 30VDC
