Pivots & Pivot Sets

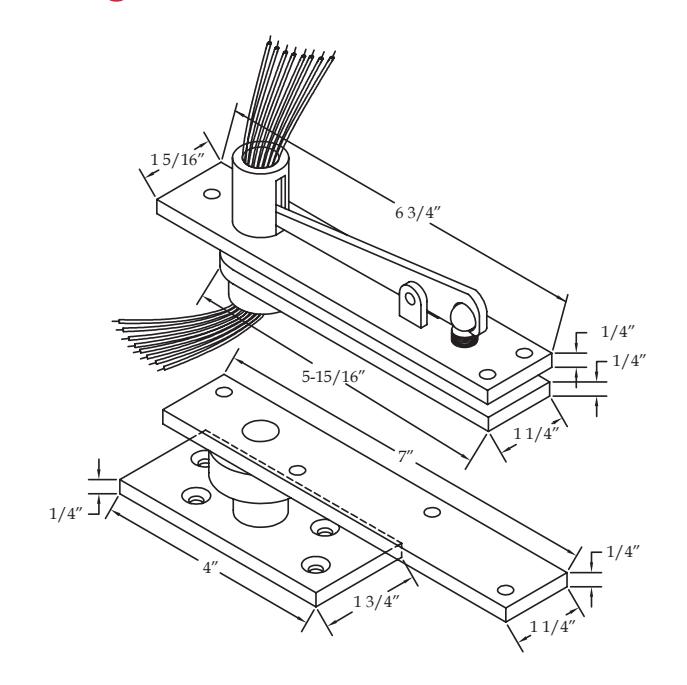

Electrified Center Hung Pivot Sets

Standard Features

• • Frame leaf mortises into header
  • Door leaf mortises into top of door
  • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
• 0370 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Non-handed
• Pivot set is centered into the door thickness
• Maximum door load 500 pounds
• Maximum door size 44"x 102"

Options

• Can be used with ABH® Rescue Hardware see Section "J"
• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • SEC Security fasteners
• • EZ EZ Connect Molex® Connectors for installation ease
