Pivots & Pivot Sets

Standard Features

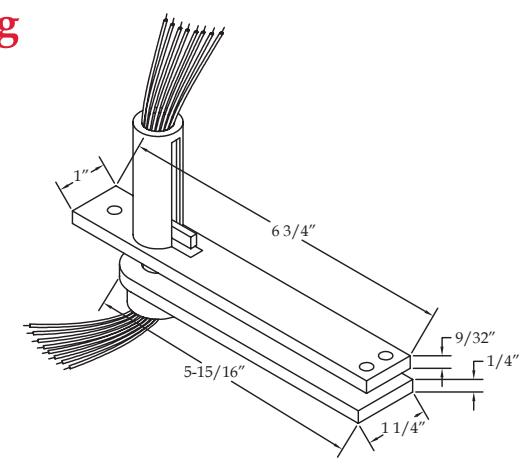

• Provides electrical power transfer from the frame to the door - (8) 30 AWG Wires
• Medium Duty
• Mortises into header and top of the door
• Dress plate provided for jamb portion
• Non-handed

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners

Standard Features

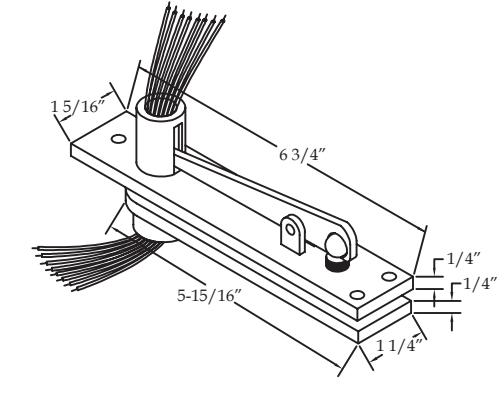

• Provides electrical power transfer from the frame to the door
  • (8) 30 AWG Wires
• Heavy duty
• Mortises into header and top of the door
• Dress plate provided for jamb portion
• Non-handed

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners

Standard Features

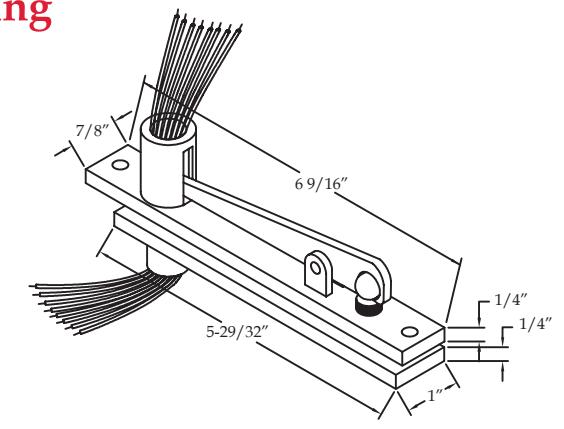

• Provides electrical power transfer from the frame to the door - (8) 30 AWG Wires
• Extra heavy duty
• Mortises into header and top of the door
• Dress plate provided for jamb portion
• Non-handed

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners
