Pivots & Pivot Sets

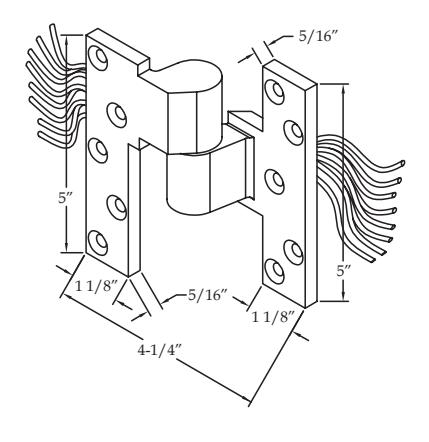

Standard Features

• Provides electrical power transfer from the frame to the door
  • (8) 30 AWG Wires
• Mortises into side jamb and hinge edge of door
• Handed Specify LH or RH
• For use with ¾" offset pivot sets
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners

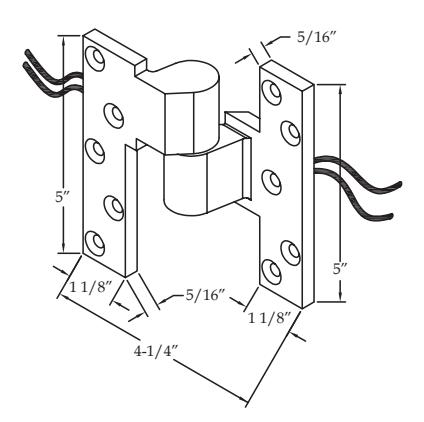

Standard Features

• Provides electrical power transfer from the frame to the door
  • Large inrush current
  • (2) 18 AWG Wires
  • Each wire is rated at 2 amps continuously
• Mortises into side jamb and hinge edge of door
• Handed Specify LH or RH
• For use with ¾" offset pivot sets
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners
