7 4 5 0 S e r i e s

S t a n d A l o n e D i g i t a l K e y p a d

• • IP65 Water Resistant & UV Resistant
• • Up To 500 User Codes
• • Narrow Mullion Design
• • Built In Tamper Detection
• • Backlit Keypad
• Lifetime Warranty

Description

The DynaLock 7450 narrow, mullion-style keypad is designed to be the most cost effective access control solution for indoor and outdoor residential, commercial and institutional applications. It will store 1 to 500 user PIN codes, with up to three access levels for each.

The 7450 features a user-friendly setup menu, which makes configuration and use very simple for endusers. A wide array of functions and auxiliary modes provide extra flexibility and security, allowing it to operate as a single or two-door access controller.

The 7450 incorporates a UV-resistant, epoxy sealed polycarbonate housing, designed to withstand the elements. Red backlit keys enhance visibility in lowlight conditions and a flexible power input allows the unit to operate on 12-24VDC or 16-24VAC. Two Form-C relay outputs, rated at 2 Amps, as well as REX and Auxiliary inputs are provided.

Standard Features

• 500 User Codes: Up to 500 codes can be programmed using one of two easy enrolling methods.
• Flexible Power Input: 12-24 VDC or 16-24VAC.
• 3 User and Access Levels: Program one to three different levels of access for each individual user or for the entire system.
• Multiple Inputs and Outputs: Unit includes a REX and Auxiliary input as well as two form C output contacts rated at 2 Amps.
• Audio and Visual Recognition: Equipped with an internal sounder and two tri-colored status/programming LED's.
• Multiple Auxiliary Modes: Ten programmable auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor.
• Weather Resistant: IP65 water and UV resistant.
• Vandal Resistant: Polycarbonate casing with a built in optical tamper sensor.
• Installer Friendly: Includes an installation kit and self-adhesive mounting template.
• Lifetime Warranty

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

7450 Series Digital Keypad

Specifications

Physical Characteristics

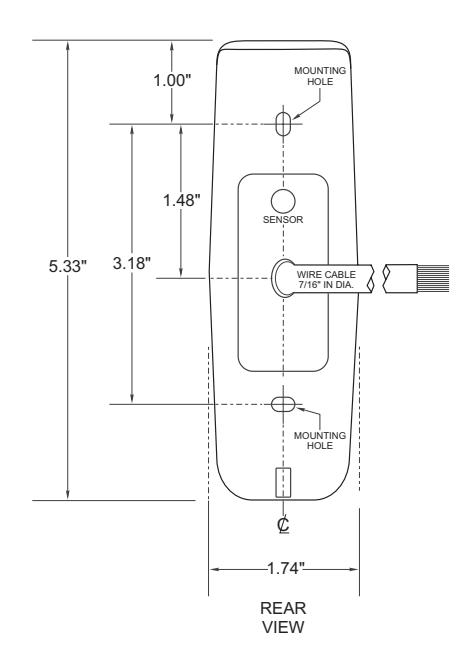

Size: 5.33" H x 1.74" L x 1.12" W

Weight: 0.39 lbs Material: Polycarbonate

Cable: 18AWG/10-Conductor, 3 Ft long

Electrical Characteristics

Voltage Range: 12-24VDC, From power supply

16-24VAC, From a transformer

Input Current: Standby: 75mA at 12VDC

Maximum: 125mA at 12VDC

Relay Outputs: Main: 2A Form C, N.O. and N.C.

Auxiliary: 2A Form C, N.O. and N.C.

Tamper: Optical back tamper sensor Inputs: REX: N.O. dry contact

Auxiliary (In/Monitor): N.O. dry contact

10 programmable modes

Environmental Characteristics

Operation: Water resistant, suitable for outdoor use

Meets IP65

Temperature: -30°C to 65°C ( -22°F to 150°F ) Humidity: 0 to 95% (non-condensing) RFI Protection: >20V/m up to 1000Mhz

Operational Characteristics:

Capacity: 500 users, single/dual code for each Keypad: 2x6 key pad for local programming

and 4 to 8 digit PIN code entry

User Levels: Normal/Secure/Master

Red Backlit Keypad
