SPECIFICATIONS

WIRING INFORMATION

DYNALOCK MODEL #7077 EMERGENCY BREAK GLASS RELEASE

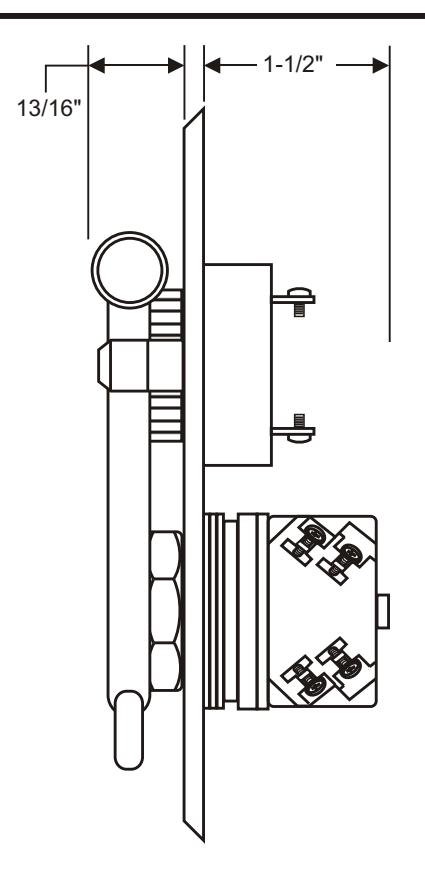

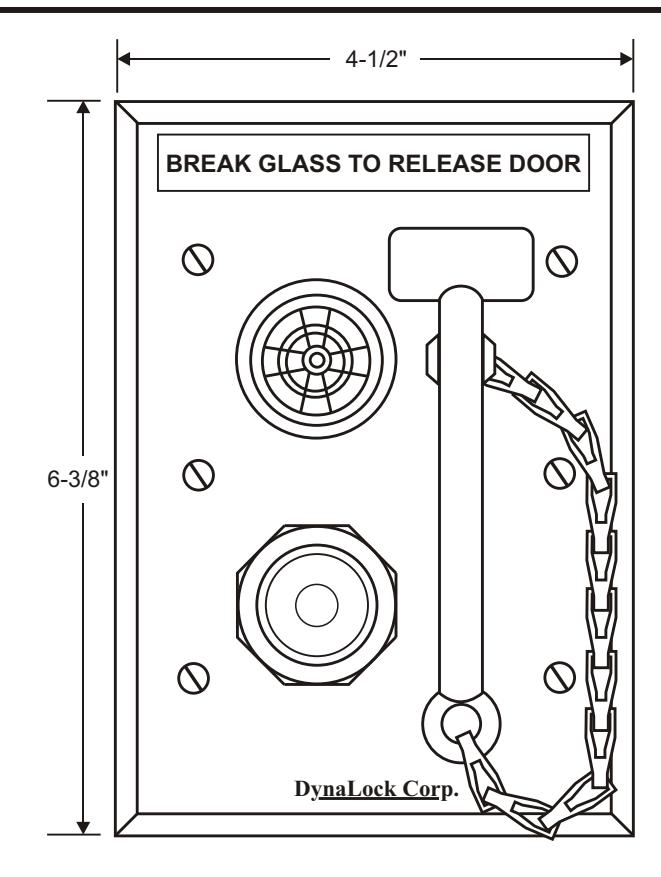

BREAK GLASS SWITCH ASSEMBLY WITH HAMMER MOUNTED ON A THREE-GANG STAINLESS STEEL FACEPLATE. FURNISHED WITH 5 SPARE GLASS LENSES.

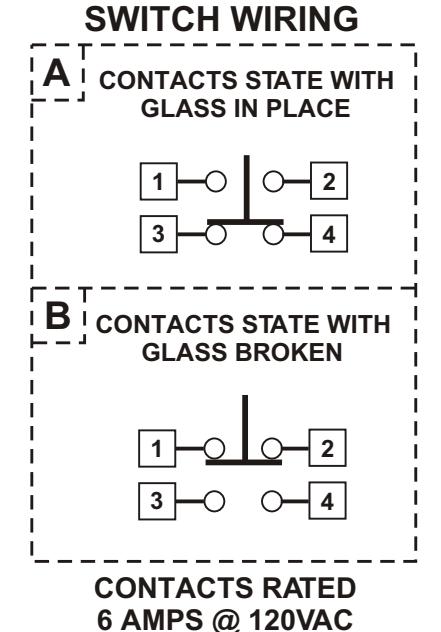

NORMALLY-OPEN (NO) AND NORMALLY CLOSED (NO) CONTACTS RATED 6 AMPS @ 120VAC, WITH COMBINATION-HEAD SCREW TERMINAL CONNECTORS.

INCLUDES AUDIBLE ANNUNCIATOR WITH SCREW LUG TERMINAL CONNECTORS. OPERATING VOLTAGE: 1-28VDC; OUTPUT LEVEL: 93 dB @ 12 INCHES.

DynaLock Corp.

705 Emmett Street Forestville, CT 06010

TITLE

MODEL #7077 EMERGENCY BREAK GLASS LOCK RELEASE STATION

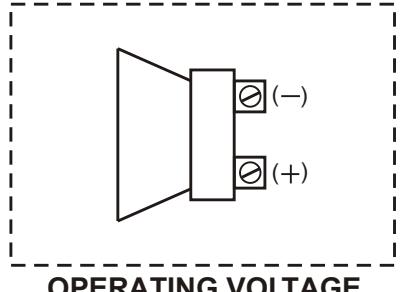

AUDIBLE WIRING

OPERATING VOLTAGE 1 - 28VDC @ 15 mA

DRN. BY JAS

DATE 06/22/98

DWG. NO. 600198
