SPECIFICATIONS

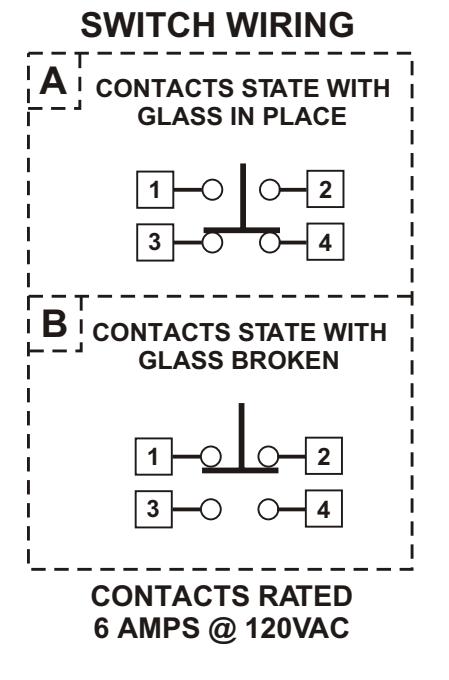

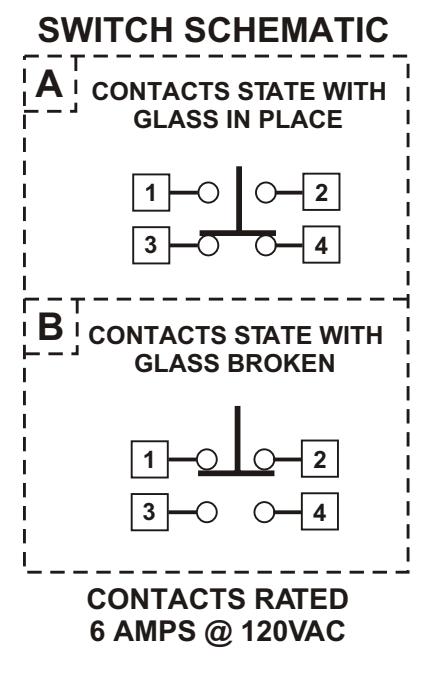

WIRING INFORMATION

DYNALOCK MODEL #7075 EMERGENCY BREAK GLASS RELEASE

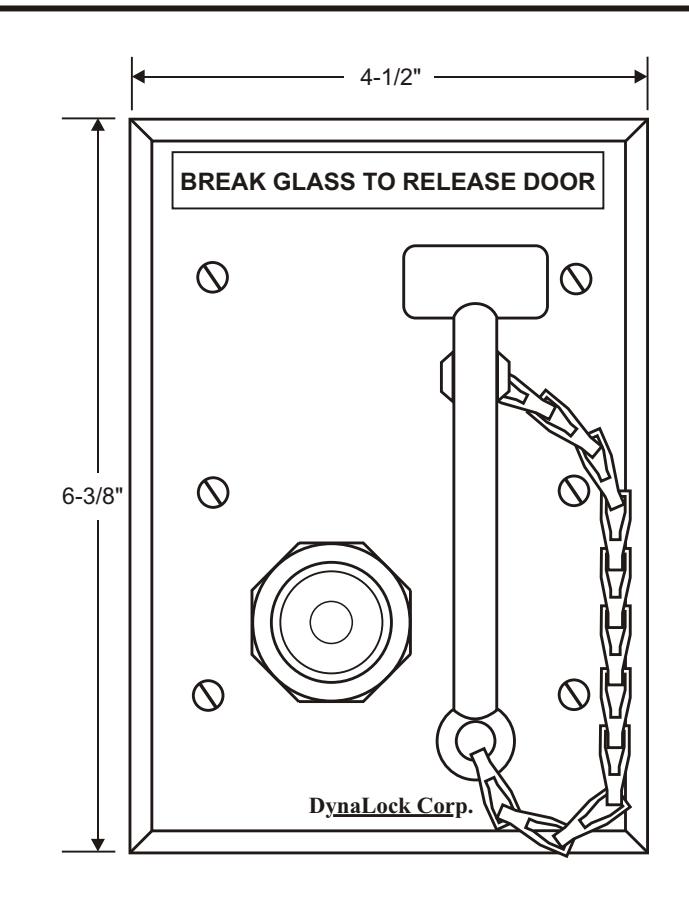

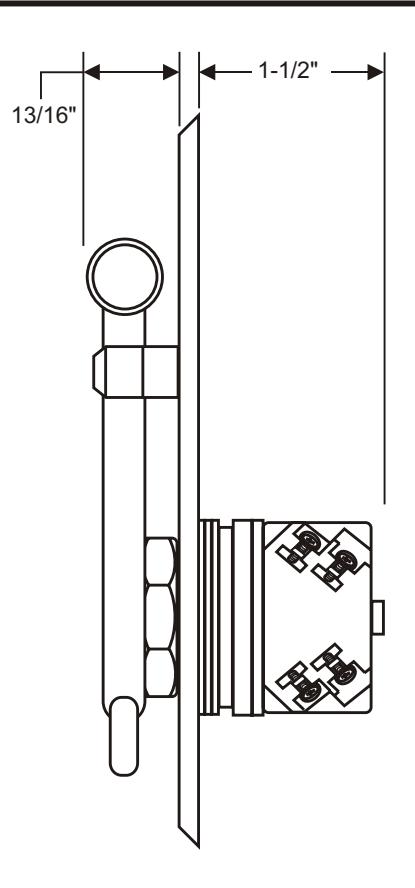

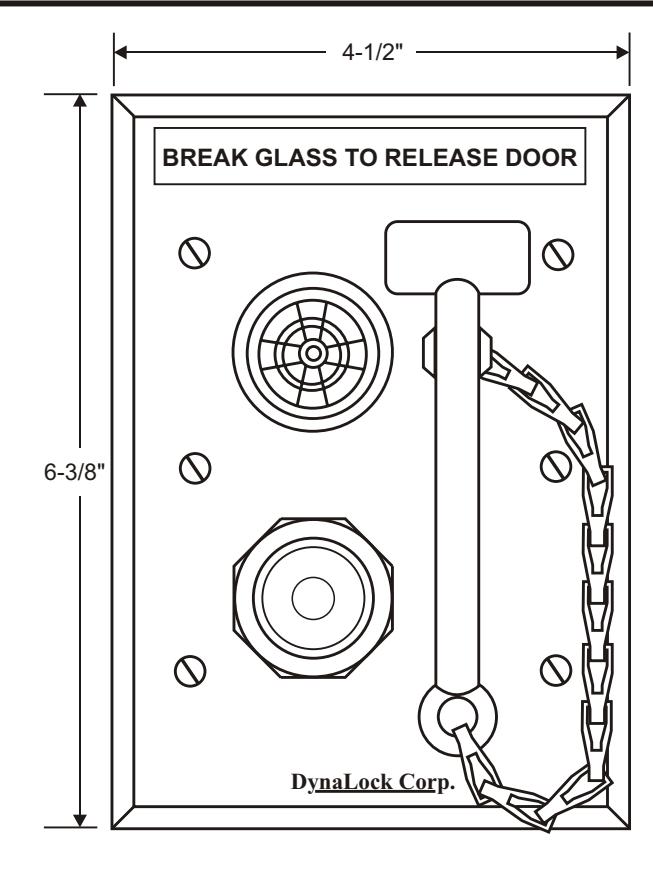

BREAK GLASS SWITCH ASSEMBLY WITH HAMMER MOUNTED ON A THREE-GANG STAINLESS STEEL FACEPLATE. FURNISHED WITH 5 SPARE GLASS LENSES.

NORMALLY-OPEN (NO) AND NORMALLY CLOSED (NO) CONTACTS RATED 6 AMPS @ 120VAC, WITH COMBINATION-HEAD SCREW TERMINAL CONNECTORS.

TITLE

MODEL #7075 EMERGENCY BREAK GLASS LOCK RELEASE STATION

DRN. B	Y JAS
DATE	06/22/98
SCALE

600196

SPECIFICATIONS

WIRING INFORMATION

DYNALOCK MODEL #7076 EMERGENCY BREAK GLASS RELEASE

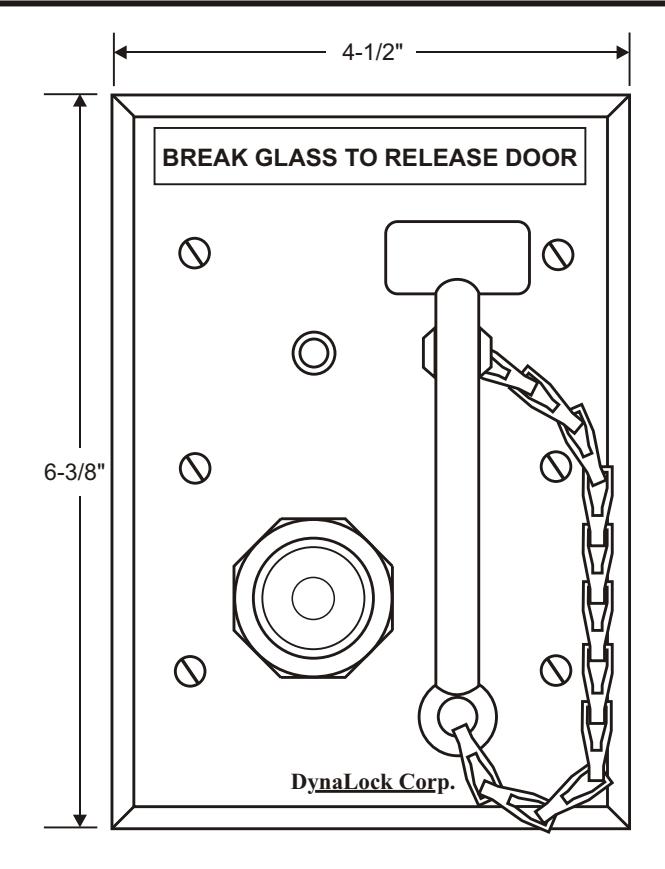

BREAK GLASS SWITCH ASSEMBLY WITH HAMMER MOUNTED ON A THREE-GANG STAINLESS STEEL FACEPLATE. FURNISHED WITH 5 SPARE GLASS LENSES.

NORMALLY-OPEN (NO) AND NORMALLY CLOSED (NO) CONTACTS RATED 6 AMPS @ 120VAC, WITH COMBINATION-HEAD SCREW TERMINAL CONNECTORS.

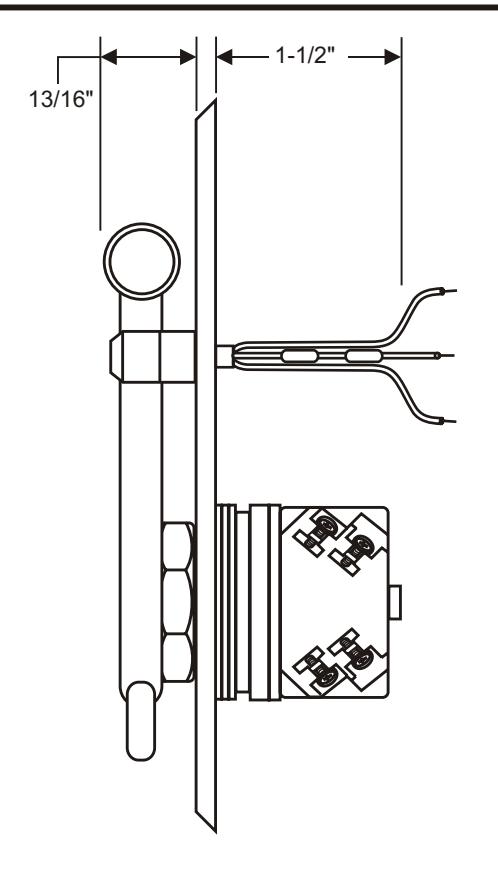

INCLUDES SINGLE BI-COLOR LED INDICATOR FOR 12V OR 24V OPERATION, WITH 63 COLOR-CODED WIRE LEADS.

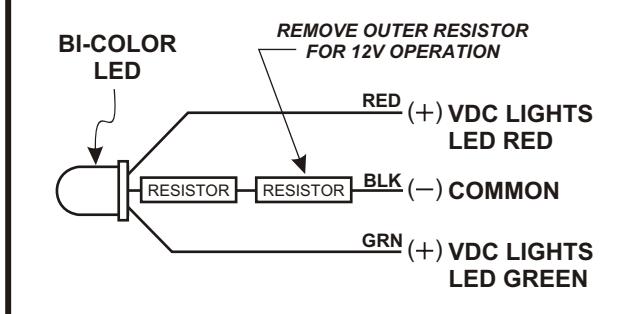

LED WIRING

TITLE

MODEL #7076 EMERGENCY BREAK GLASS LOCK RELEASE STATION

DRN. BY JAS DATE 06/22/98 SCALE ——

DWG. NO. 600197-A

SPECIFICATIONS

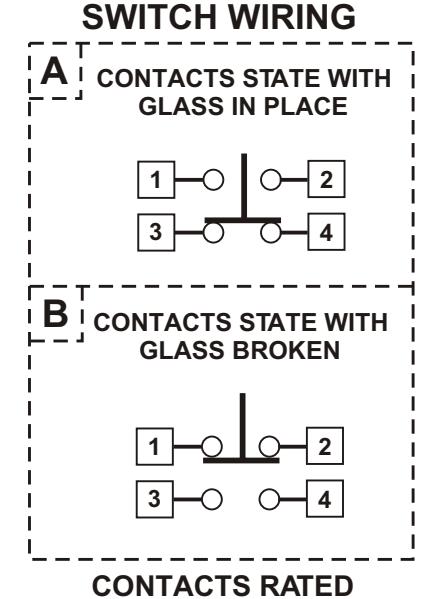

WIRING INFORMATION

DYNALOCK MODEL #7077 EMERGENCY BREAK GLASS RELEASE

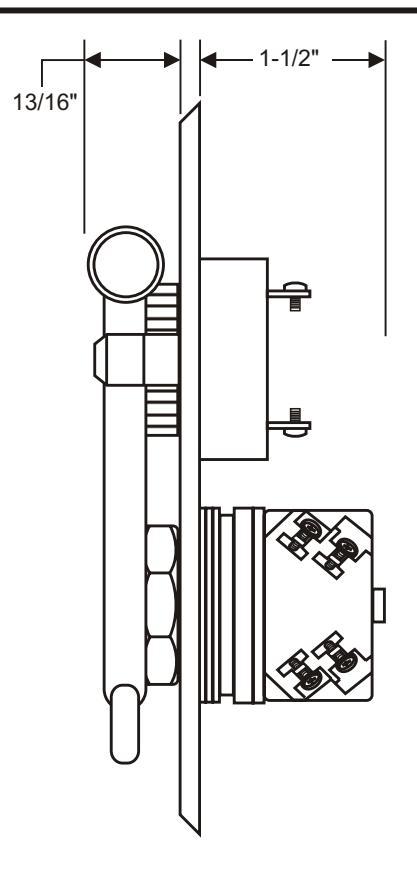

BREAK GLASS SWITCH ASSEMBLY WITH HAMMER MOUNTED ON A THREE-GANG STAINLESS STEEL FACEPLATE. FURNISHED WITH 5 SPARE GLASS LENSES.

NORMALLY-OPEN (NO) AND NORMALLY CLOSED (NO) CONTACTS RATED 6 AMPS @ 120VAC, WITH COMBINATION-HEAD SCREW TERMINAL CONNECTORS.

INCLUDES AUDIBLE ANNUNCIATOR WITH SCREW LUG TERMINAL CONNECTORS. OPERATING VOLTAGE: 1-28VDC; OUTPUT LEVEL: 93 dB @ 12 INCHES.

DynaLock Corp.

705 Emmett Street Forestville, CT 06010

TITLE

MODEL #7077 EMERGENCY BREAK GLASS LOCK RELEASE STATION

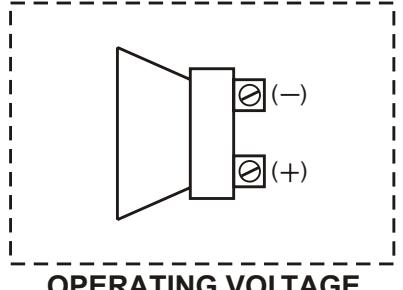

AUDIBLE WIRING

6 AMPS @ 120VAC

OPERATING VOLTAGE 1 - 28VDC @ 15 mA

DRN. BY JAS

DATE 06/22/98 SCALE ____

DWG. NO. 600198
