SPECIFICATIONS

WIRING INFORMATION

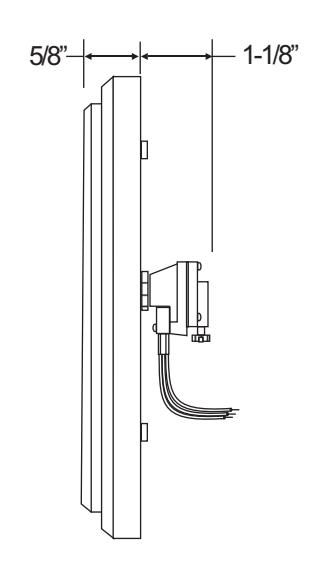

DYNALOCK MODEL #6951 PUSHPLATE FEATURES:

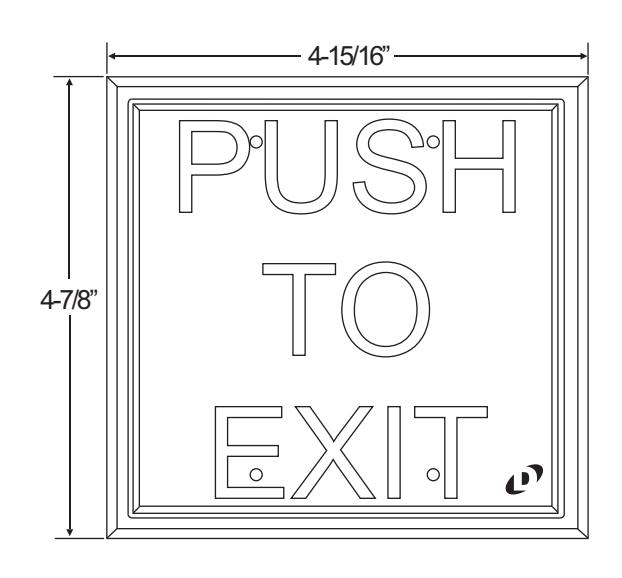

DOUBLE GANG RECESSED STYLE RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

2-60 SECOND TIME DELAYED MOMENTARY CONTACTS

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS

SCHEMATIC

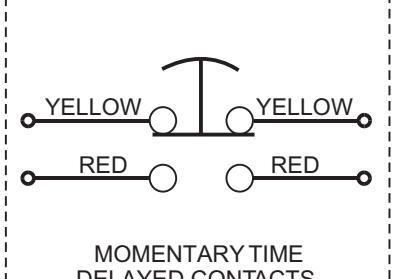

MOMENTARY TIME DELAYED CONTACTS RATED 10 AMPS @ 120VAC PTD / FORM Z

TIME DELAY ADJUSTMENT

TIME DELAY ADJUSTMENT KNOB

TURN CW TO INCREASE TURN CCW TO DECREASE

TIME DELAYADJUSTMENT RANGE = 2 - 60 SECONDS

DynaLock

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

DRWN:	Date:
	MJL	08/28/08
CHK'D:	JAS	Date: 08/29/08
CHK'D:		Date:
APPV'C	):	Date:

Title

6951 PUSHPLATE, DOUBLE GANG

Page 1 Of 1

Size

^{wing #:} 600390

REV:

SPECIFICATIONS

WIRING INFORMATION

DYNALOCK MODEL #6961 / 6971 PUSHPLATE FEATURES:

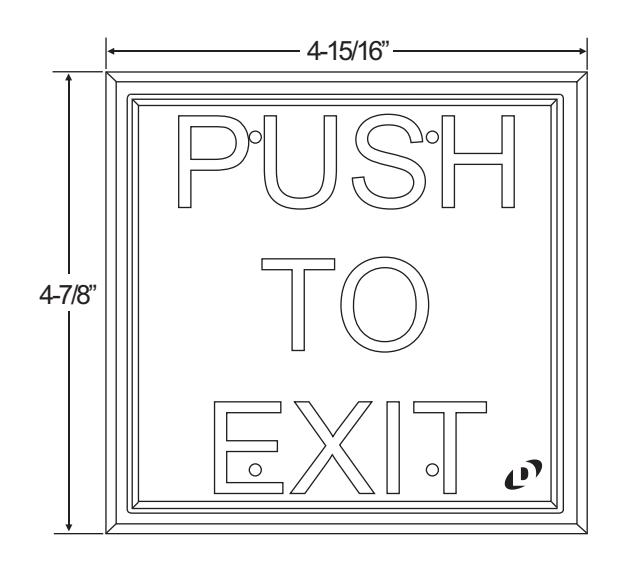

DOUBLE GANG RECESSED STYLE RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS.

6961 - SPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC 6971 - DPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC

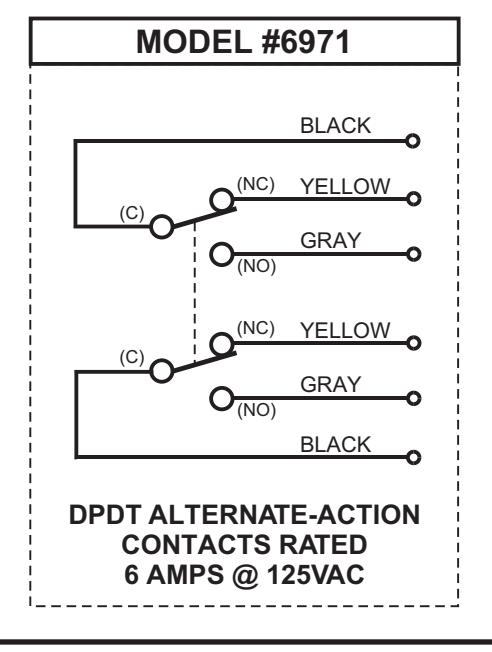

BLACK (C) (NC) YELLOW O(NO) GRAY O(NO) SPDT ALTERNATE-ACTION CONTACTS RATED 6 AMPS @ 125VAC

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

	DRWN:	Date:
		MJL	08/28/08
,	CHK'D:	JAS	Date: 08/29/08
	CHK'D:		Date:
	APPV'D	):	Date:

6961 / 6971 PUSHPLATE DOUBLE GANG

Page 1 Of 1

ale: Size: Drawing #:

⁶⁰⁰³⁹¹

REV:

SPECIFICATIONS

WIRING INFORMATION

MODEL #6981 (SPDT)

MODEL #6991 (DPDT) C O NC O NO C O NC O NO

DYNALOCK MODEL #6981 / 6991 PUSHPLATE FEATURES:

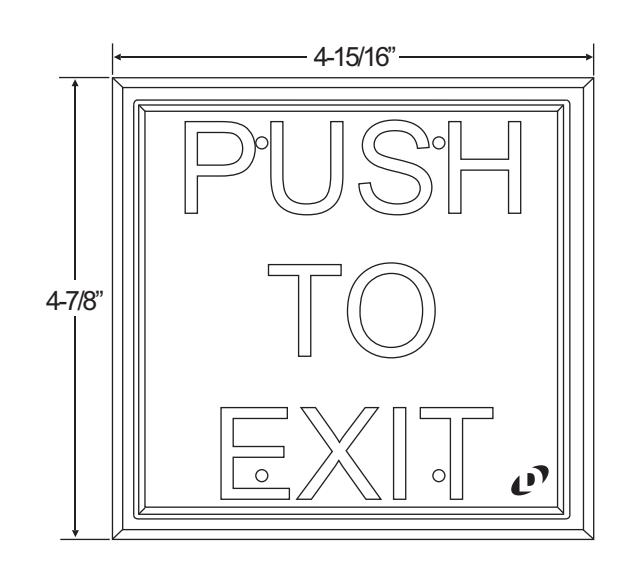

DOUBLE GANG RECESSED STYLE RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

LABELED SCREW TERMINAL CONNECTIONS

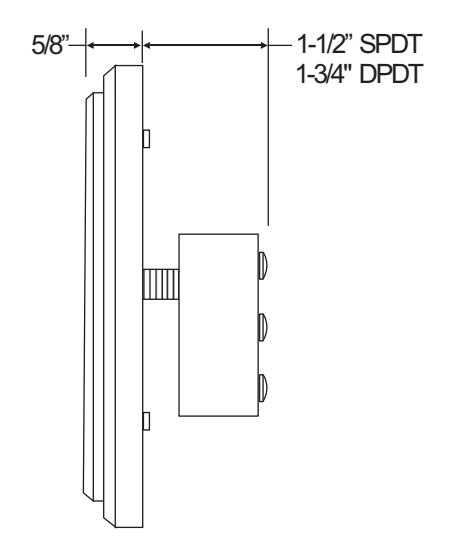

6981 - SPDT / MOMENTARY CONTACTS, RATED 15 AMPS @ 125VAC 6991 - DPDT / MOMENTARY CONTACTS, RATED 10 AMPS @ 125VAC

DynaLock

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

DRWN:	Date:
MJL	08/28/08
CHK'D:	Date:
JAS	08/29/08
CHK'D:	Date:
APPV'D:	Date:

6981 / 6991 PUSHPLATE DOUBLE GANG

Page 1 Of 1

Size: A

Size: Drawing #: 6

600392
