SPECIFICATIONS

WIRING INFORMATION

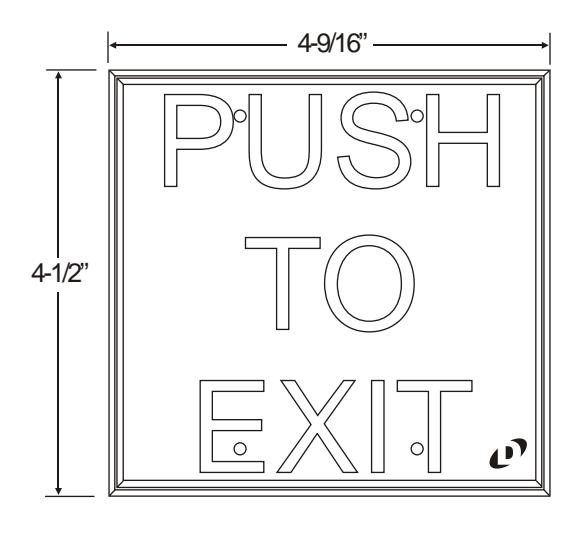

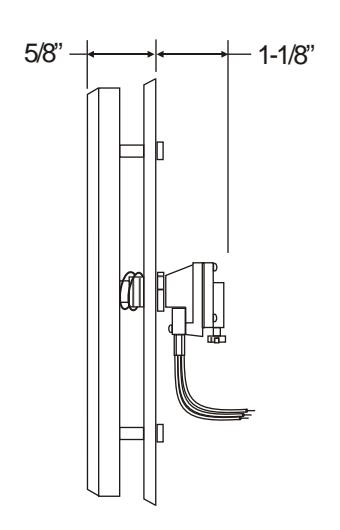

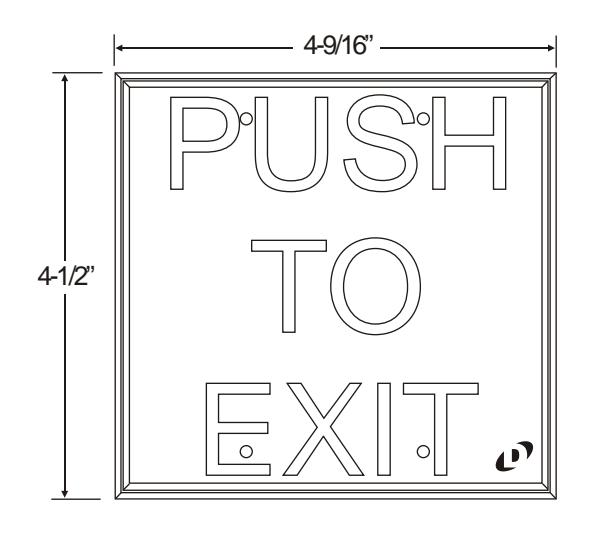

DYNALOCK MODEL #6901 PUSHPLATE FEATURES:

DOUBLE GANG RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

2-60 SECOND TIME DELAYED MOMENTARY CONTACTS

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS

SCHEMATIC

MOMENTARY TIME DELAYED CONTACTS RATED 10 AMPS @ 120VAC PTD / FORM Z

TIME DELAY ADJUSTMENT

TIME DELAY ADJUSTMENT KNOB

TURN CW TO INCREASE TURN CCW TO DECREASE

TIME DELAY ADJUSTMENT RANGE = 2 - 60 SECONDS

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

	DRWN:	MJL	Date: 10/29/07
;	CHK'D:		Date:
	CHK'D:		Date:
	APPV'D	):	Date:

Title

6901 PUSHPLATE, DOUBLE GANG

Page 1 Of 1

e: Size: Drawing #:

^* 600351

REV:

SPECIFICATIONS

WIRING INFORMATION

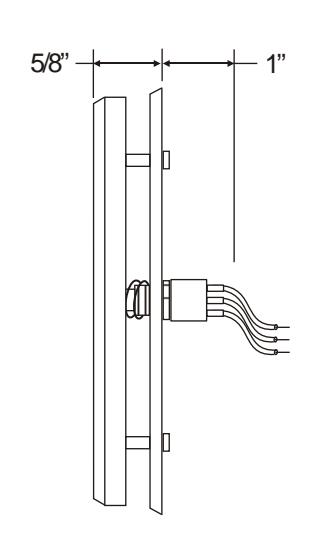

DYNALOCK MODEL #6911 / 6921 PUSHPLATE FEATURES:

DOUBLE GANG RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS.

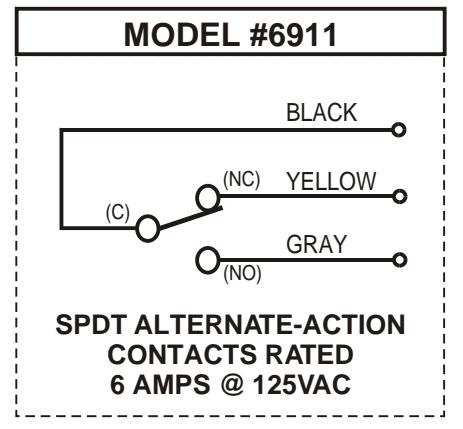

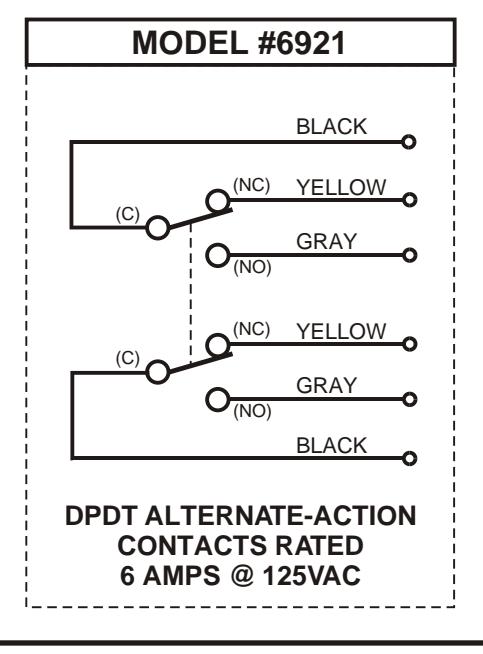

6911 - SPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC 6921 - DPDT / ALTERNATE-ACTION CONTACTS. RATED 6 AMPS @ 125VAC

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

DRWN:	MJL	Date: 10/29/07
CHK'D:		Date:
CHK'D:		Date:
APPV'D	:	Date:
	CHK'D:	MJL CHK'D:

6911 / 6921 PUSHPLATE DOUBLE GANG

Page Scale: Size: Drawing #:

600352

REV:

SPECIFICATIONS

WIRING INFORMATION

MODEL #6941 (DPDT) C O NC O NO C O NC O NC O NC

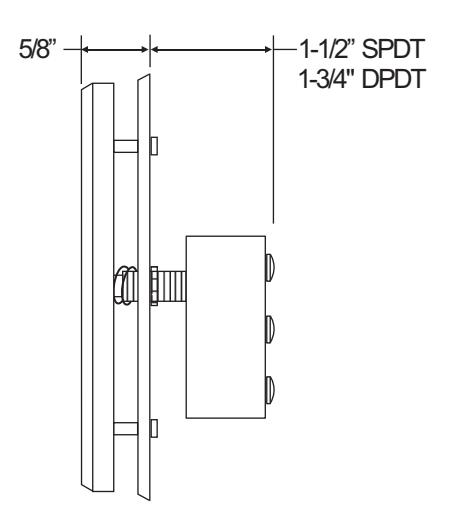

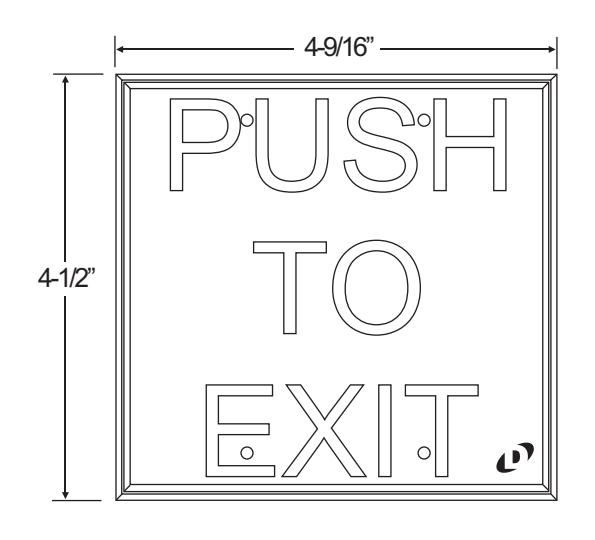

DYNALOCK MODEL #6931 / 6941 PUSHPLATE FEATURES:

DOUBLE GANG RED ANODIZED ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE: WHITE, 1" HEIGHT, 1/8" STROKE

LABELED SCREW TERMINAL CONNECTIONS

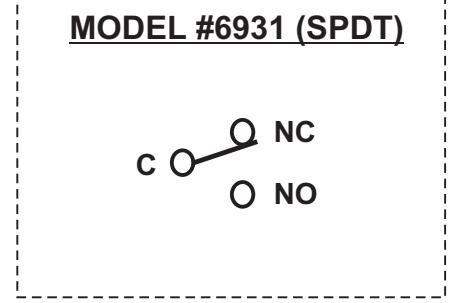

6931 - SPDT / MOMENTARY CONTACTS, RATED 15 AMPS @ 125VAC 6941 - DPDT / MOMENTARY CONTACTS, RATED 10 AMPS @ 125VAC

DynaLock

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

	DRWN:	Date:
		MJL	06/09/08
	CHK'D:		Date:
;		JAS	06/10/08
	CHK'D:		Date:
	APPV'D:		Date:

6931 / 6941 PUSHPLATE DOUBLE GANG

Page Scale: S

Size: Drawing #: 600353

REV:
