SPECIFICATIONS

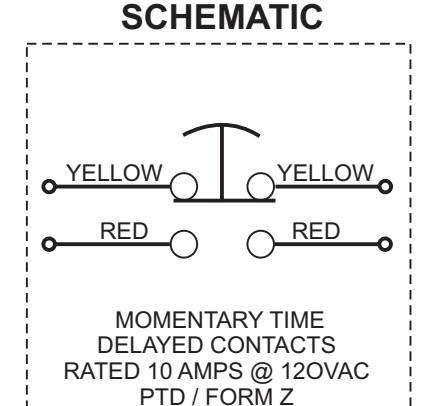

WIRING INFORMATION

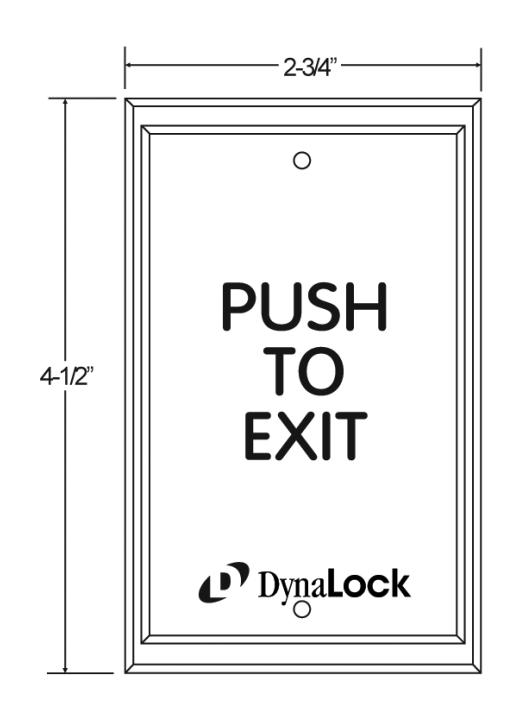

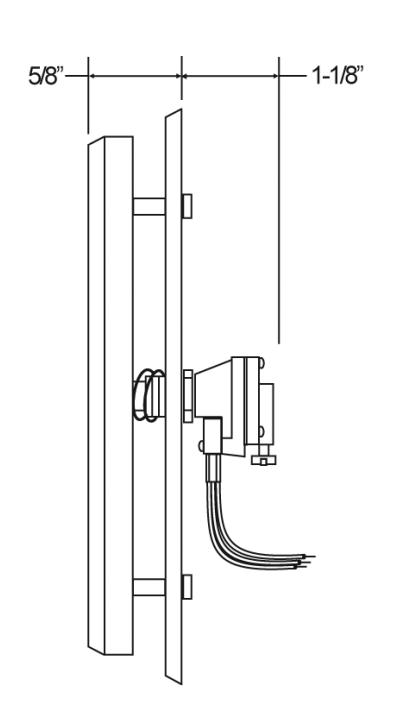

DYNALOCK MODEL #6700 PUSHPLATE FEATURES:

2-5/8" x 4" SOLID ALUMINUM PUSHPLATE WITH 2-60 SECOND TIME DELAYED MOMENTARY CONTACTS AND "PUSH TO EXIT" ENGRAVED SIGNAGE.

SINGLE GANG SOLID ALUMINUM FACEPLATE.

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS.

TIME DELAY ADJUSTMENT

TIME DELAY ADJUSTMENT KNOB

TURN CW TO INCREASE TURN CCW TO DECREASE

TIME DELAY ADJUSTMENT RANGE = 2 - 60 SECONDS

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

DRWN:	Date:
	MJL	02/20/06
CHK'D:		Date:
	JAS	02/20/06
CHK'D:		Date:
APPV'D	):	Date:

Title

6700 PUSHPLATE, SINGLE GANG

Page 0: Date: 1 Of 1 JAS 02/20/06

Scale: Size

600303

REV:

SPECIFICATIONS

WIRING INFORMATION

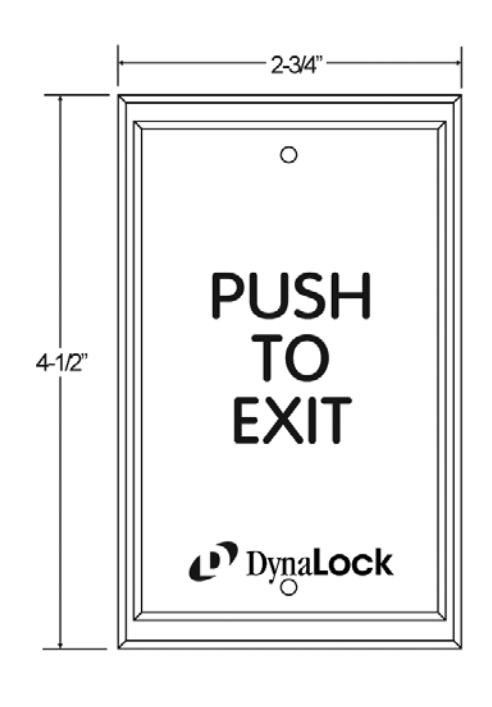

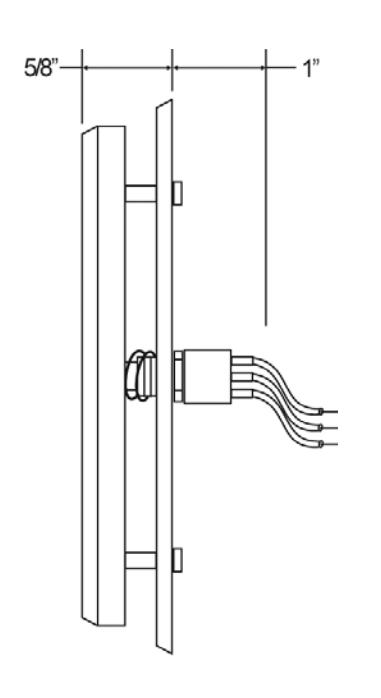

DYNALOCK MODEL #6710 / 6720 PUSHPLATE FEATURES:

2-5/8" x 4" SOLID ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE.

SINGLE GANG SOLID ALUMINUM FACEPLATE.

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS.

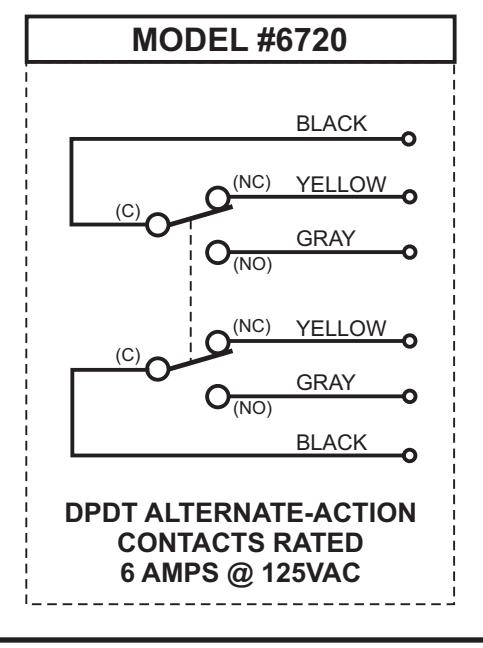

6710 - SPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC 6720 - DPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC

MODEL #6710
BLACK
(C) (NC) YELLOW
O (NO) GRAY
SPDT ALTERNATE-ACTION CONTACTS RATED 6 AMPS @ 125VAC

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

	DRWN:	Date:
		MJL	02/20/06
,	CHK'D:	JAS	Date: 02/20/06
	CHK'D:		Date:
	APPV'D	JAS	Date: 02/20/06

6710 / 6720 PUSHPLATE SINGLE GANG

age 1 Of 1	Scale:	Size:	Drawing #:	600304	REV:

SPECIFICATIONS

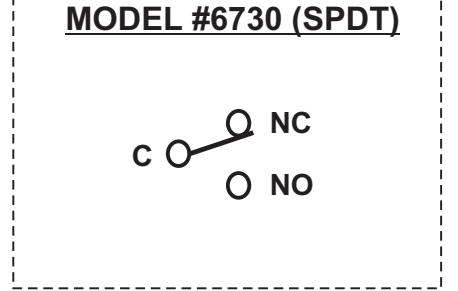

WIRING INFORMATION

MODEL #6740 (DPDT) c O NC O NO c O NC O NC O NC

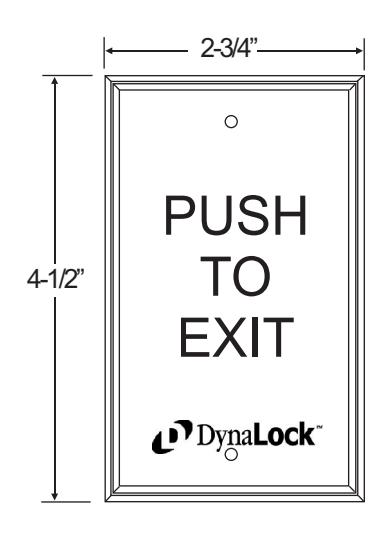

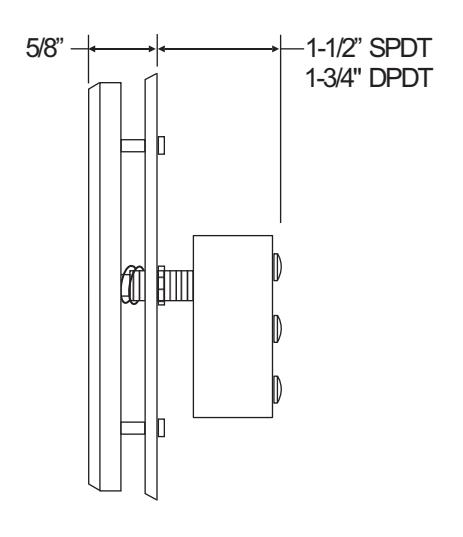

DYNALOCK MODEL #6730 / 6740 PUSHPLATE FEATURES:

SOLID ALUMINUM PUSHPLATE WITH "PUSH TO EXIT" ENGRAVED SIGNAGE

SINGLE GANG SOLID ALUMINUM FACEPLATE.

LABELED SCREW TERMINAL CONNECTIONS

6730 - SPDT / MOMENTARY CONTACTS, RATED 15 AMPS @ 125VAC 6740 - DPDT / MOMENTARY CONTACTS, RATED 10 AMPS @ 125VAC

DynaLock

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Installation Instructions

	DRWN:	Date:
		MJL	06/09/08
	CHK'D:	JAS	Date: 06/10/08
•	CHK'D:	0, 10	Date:
	APPV'D	):	Date:

6730 / 6740 PUSHPLATE SINGLE GANG

Page 1 Of 1

ale: Size:

Size: Drawing #: 600305

REV:
