6 6 0 0 S e r i e s
H a l o - L i g h t e d P i e z o R E X P u s h B u t t o n
Description
DynaLock 6600 Series halo-lighted, request-to-exit (REX) push buttons incorporate a heavy duty, non-sparking, non-magnetic, corrosion resistant, anti-vandal piezoelectric switch, designed for indoor and outdoor use.
Pressing the soft-touch piezoelectric switch generates a timed, dry contact relay pulse, for direct release control of an electronic locking device, or similar application. The SPDT-double-break (Form Z) output relay contacts are rated for 5 Amps @ 125VAC, with a field-adjustable pulse-time of 1-60 seconds. Additionally, a brilliant, external led ring indicator may be set to illuminate red, green or yellow and change state upon relay activation.
Standard models are offered in a choice of single-gang box or narrow mullion mount, with or without "EXIT" signage and are ideal for use wherever high-use, abuse and resistance to moisture and the elements is a concern.
Standard Features
- Advanced Soft Touch Piezoelectric Switch
- Water & Dust Proof (Meets IP65)
- Vandal resistant
- Selectable Input Voltage (10-24VDC)
- Light Ring Status Indicator
- 5 Amp N.C. & N.O. Relay Output
- Encapsulated Circuit Board Assembly
- Chemical Solvent Repellent
- Lifetime Warranty
Halo-Lighted Piezo REX Push Button
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| OPERATING VOLTAGE RANGE | 10-24VDC |
| OUTPUT RELAY | FORM C RELAY: 1 N.O. 1 N.C. RATED 5A @ 125V |
| MAXIMUM CURRENT INPUT | STANDBY: 15mA @ 24VDC |
| MAXIMUM CURRENT INPUT | MAXIMUM: 140mA @ 24VDC |
| SWITCH LIFESPAN | OVER 1 BILLION CYCLES |
| OUTPUT RELAY LIFESPAN | 100,000 CYCLES |
| OUTPUT RELAY LIFESPAN | 500,000 CYCLES |
| ENVIRONMENTAL SPECIFICATIONS | |
| OPERATING ENVIROMENT | INDOOR AND/OR OUTSIDE (MEETS IP-65) |
| OPERATING TEMPERATURE | -40°F TO 145°F (-40°C TO 63°C) |
| OPERATING HUMIDITY | 0% TO 95% (NON-CONDENSING) |
| PHYSICAL SPECIFICATIONS | |
| MATERIAL | STAINLESS STEEL FACEPLATE & BUTTON |

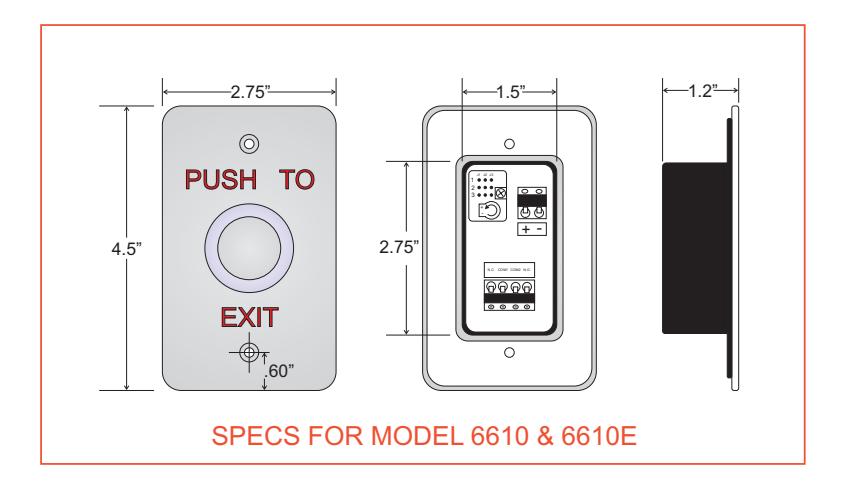

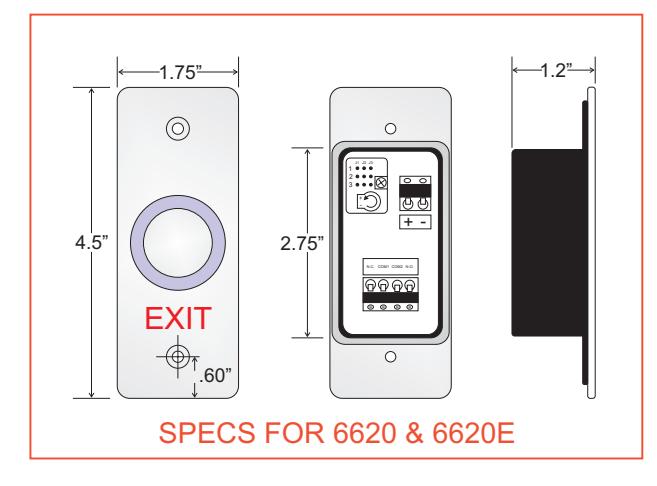

| DIMENSIONS | SEE DIAGRAMS BELOW |
| WEIGHT | 7.2oz (204g) |
| OPERATIONAL SPECIFICATIONS | |
| OUTPUT MODE | FIELD SELECTABLE: TOGGLE OR TIMED PULSE |
| PULSE/LED INDICATION TIME | FIELD SELECTABLE: 1-60 SECONDS |
| LED INDICATOR | OFF, RED, OR GREEN |
Options
66BB-10 Surface Back Box, Single Gang 66BB-20 Surface Back Box, Narrow
