6 4 2 0 S e r i e s

P a s s i v e I n f r a r e d R e q u e s t - T o - E x i t S e n s o r

• • Selectable Input Voltage
• • Single or Double Door Coverage
• • Two Relay Output Contacts
• Adjustable Relay Hold Time

Description

The DynaLock Series 6420 passive infrared Request-To-Exit sensor detects the differential between a human body and the floor. Featuring a dual-pyroelectric design, for increased stability against external light, the 6420's pyramid-shaped detection field is positionable from straight-down vertical to 35° in front of the door and special circuitry provides high immunity to RFI and other electrical noise. Two, built-in SPDT dry relay output contacts are rated for 1 Amp @ 30VDC and an adjustable timer may be set for from 0.25 to 60 seconds of relay hold time. Additionally, the output relay's mode may be set for fail-safe or fail-secure operation and an on-board LED indicator may be set to illuminate during relay hold time.

The 6420 accepts 12 to 24 VAC/VDC input power and is designed for wall, ceiling or door frame mounting. It is ideally suited for access control, lock release, alarm shunting and automatic door operation.

Standard Features

• Adjustable Coverage Area: Angle adjustment from straight-down vertical to 35° in front of door.
• Single or Double Door Coverage: Adjustable, two-position mirror.
• Two SPDT Relay Output Contacts: Rated 1 Amp @30VDC.
• Adjustable Relay Timer: Adjusts for 0.25 to 60 seconds of relay hold time.
• Fail-Safe or Fail-Secure Relay Mode: DIP switch-selectable.
• Paintable, Snap-on Housing Cover: Easy to install and service, with built-in wire trough.
• Selectable Input Voltage: Accepts 12 to 24 VAC/VDC.
• 5 Year Limited Warranty

Specifications

6420 REQUEST TO EXIT SENSOR
DETECTION SYSTEM	PASSIVE INFARED
DETECTION AREA	13' (4m) MAX MOUNTING HEIGHT SINGLE DOOR OR DOUBLE DOOR, SELECTABLE PATTERN ADJUSTABLE RANGE: WALL MOUNT VERTICALLY 35° ADJUSTABLE RANGE: OVERHEAD MOUNT VERTICALLY 20° ADJUSTABLE SENSITIVITY
POWER SUPPLY	12 TO 24VDC (NON PALARITY) OR 12 TO 24VAC (50Hz/60Hz) (WHEN OPERATED AT AC20 TO 24V CONNECT ATTACHED RESISTOR)
POWER CONSUMPTION	40mA OR LESS/DC 70mA OR LESS/AC
OUTPUT	DRY CONTACT RELAY (2) SPDT OPERATION HOLD TIME: ADJUSTABLE 0.25 SEC TO 60 SEC CONTACT CAPACITY: 30V (DC) 1A OR LESS 125V (AC) 0.6A OR LESS SELECTABLE RELAY OPERATION: FAIL SAFE OR FAIL SECURE
LED	GREEN OPERATION: SYNCHRONOUS DRY CONTACT RELAY (LED DISABLED)
WIRING CONNECTION	TERMINALS
TEMP. RANGE	+14°F TO +122°F (-10°C TO +50°C) WITHOUT CONDENSATION
MOUNTING POSITION	WALL, CEILING ON OR UNDER FRAME (INDOOR)
WEIGHT	5.95 oz (170g)
APPEARANCE	WHITE BODY (ABS RESIN) WHITE WINDOW (PE RESIN)
ACCESSORIES	TAPPING SCREW: (2PCS) COVER LOCK SCREW (1PC) RESISTOR: (1PC) CONNECT WHEN OPERATED AT AC20 TO 24V (82 OHMS, 3W)

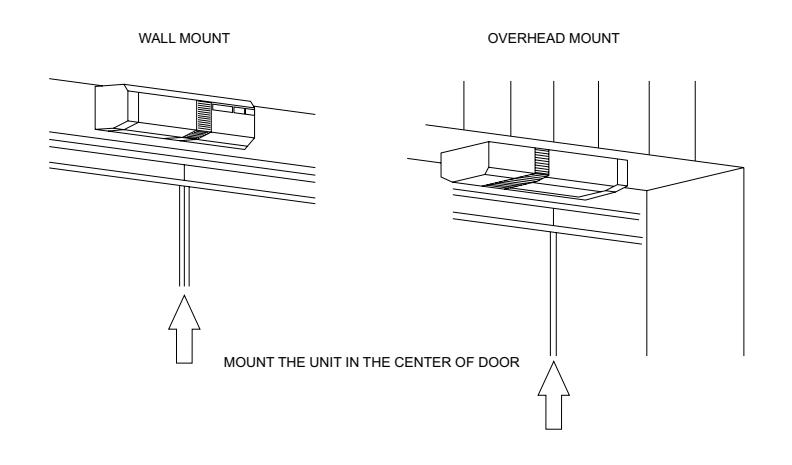

Installation

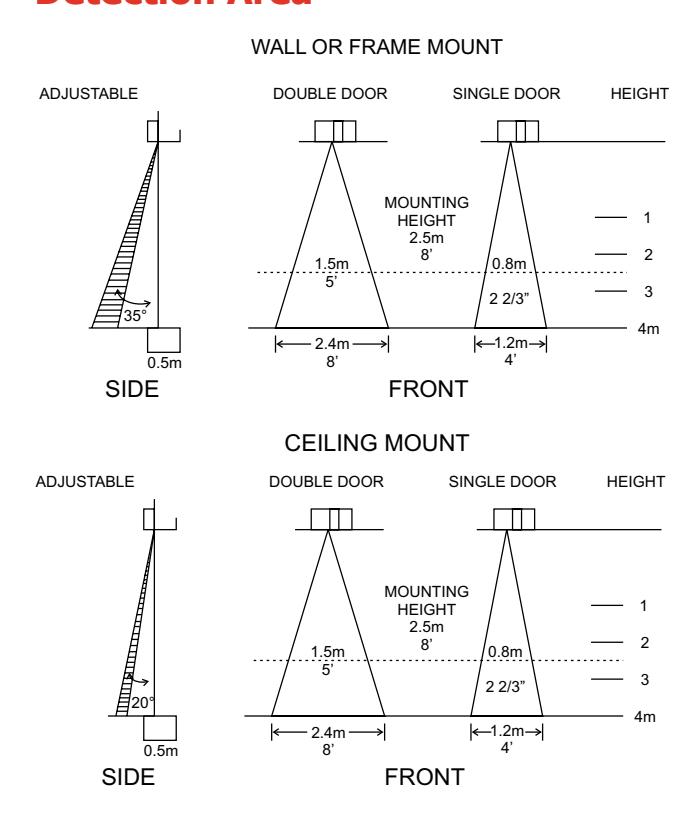

Detection Area

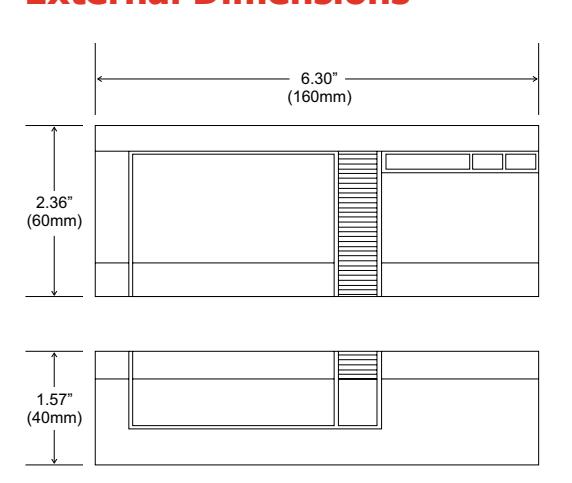

External Dimensions
