DynaLock 6300 Series Audible Anunciator Wiring Information
Open the original PDF document
View PDFSPECIFICATIONS

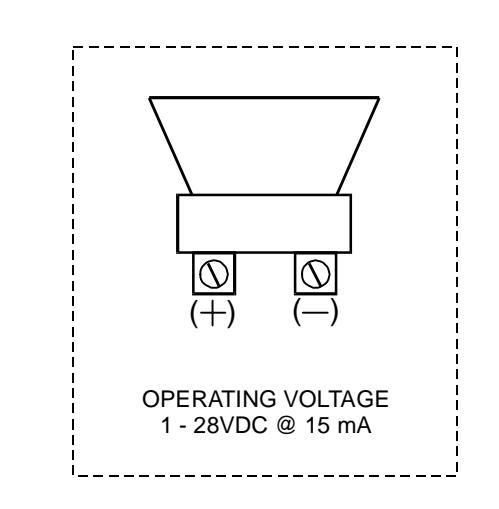

WIRING INFORMATION
DYNALOCK #6300 AUDIBLE ANNUNCIATOR FEATURES:

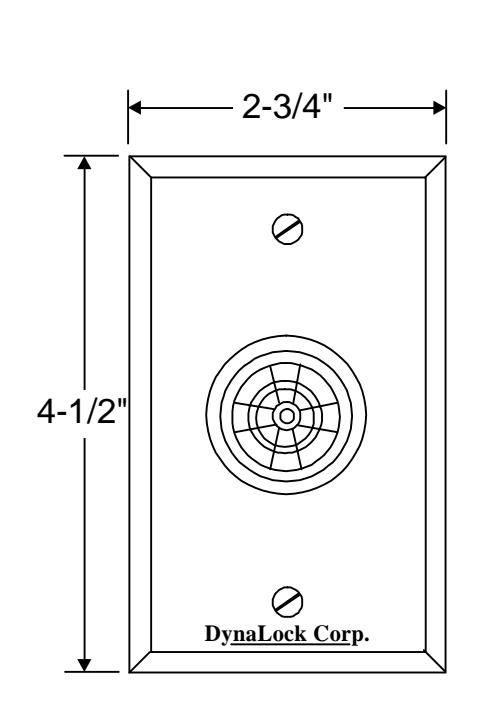

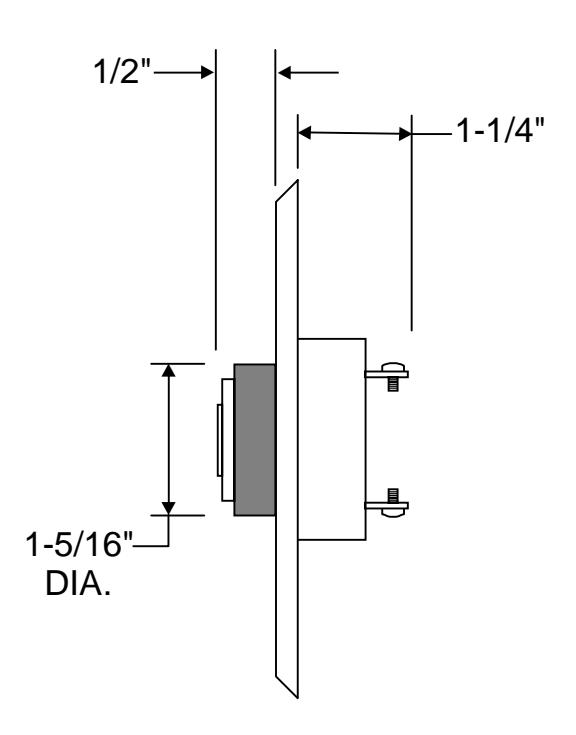

AUDIBLE ANNUNCIATOR ON SINGLE-GANG BRUSHED STAINLESS STEEL FACEPLATE.
SCREW LUG TERMINATIONS.
OPERATING VOLTAGE: 1-28VDC @ 15 mA.
SOUND OUTPUT LEVEL: 90dB @ 30 CENTIMETERS / FREQUENCY 2900Hz
DynaLock Corp.
705 Emmett Street Forestville, CT 06010
TITLE
MODEL #6300 AUDIBLE ANNUNCIATOR
DRN. BY JAS DATE 02/20/98
SCALE
DWG. NO. 600183
