DynaLock 6231 Series Installation Instructions
Open the original PDF document
View PDFSPECIFICATIONS
WIRING INFORMATION
DYNALOCK MODEL #6231 PALM BUTTON FEATURES:

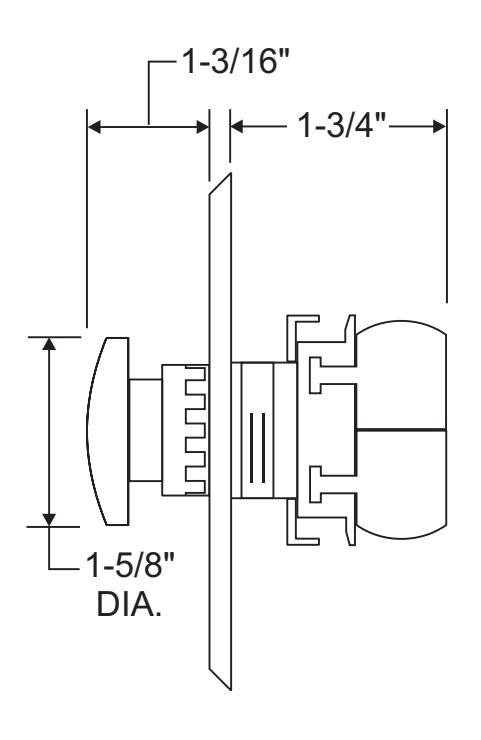

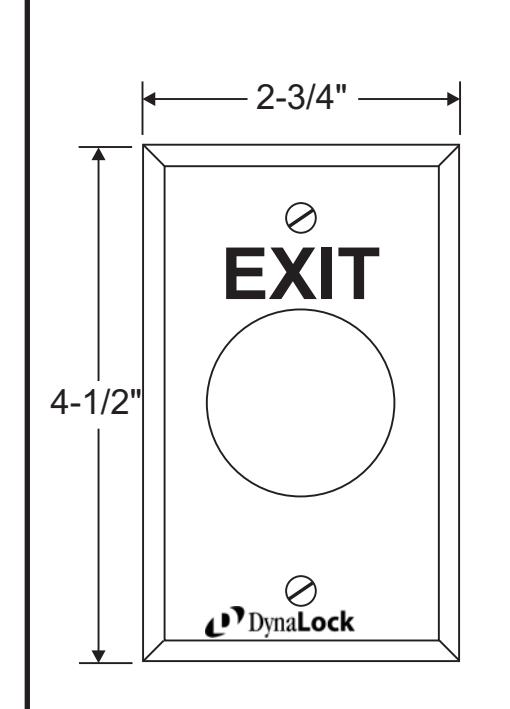

1-5/8" DIA. RED PLASTIC MUSHROOM BUTTON ON SINGLE-GANG BRUSHED STAINLESS STEEL FACEPLATE, WITH "EXIT" SIGNAGE SILKSCREENED IN RED 1/2" LETTERS.
COMBINATION-HEAD SCREW TERMINAL CONNECTORS.

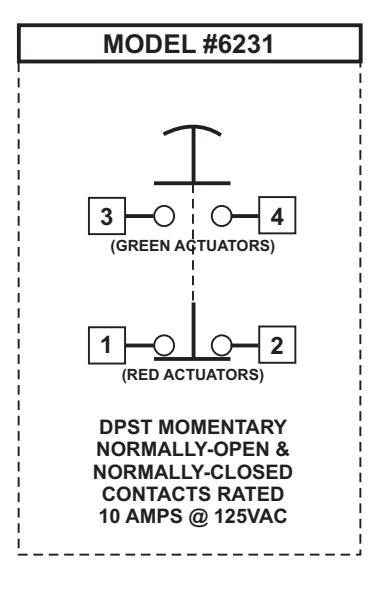

DPST: (1) NORMALLY-OPEN CONTACT & (1) NORMALLY-CLOSED CONTACT
RATED 10 AMPS @ 125VAC
