SPECIFICATIONS

WIRING INFORMATION

MODEL #6210

BLACK

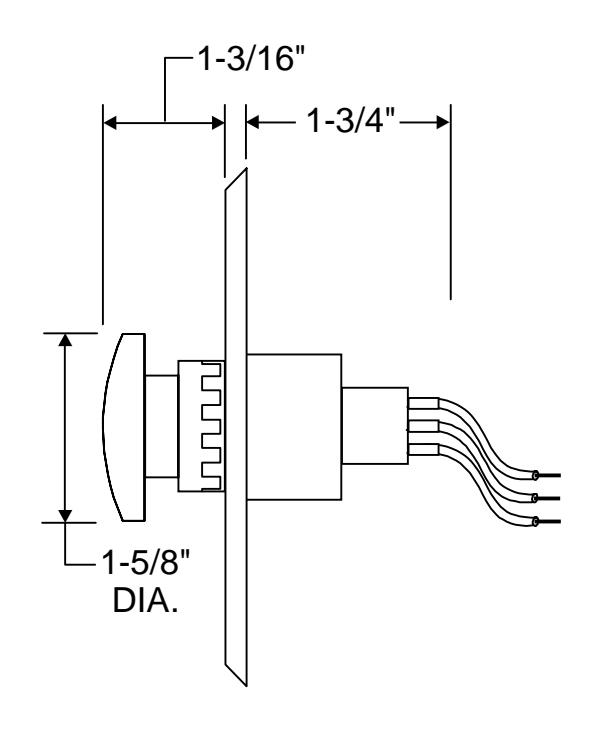

DYNALOCK MODEL #6210, #6220 PALM BUTTONS FEATURES:

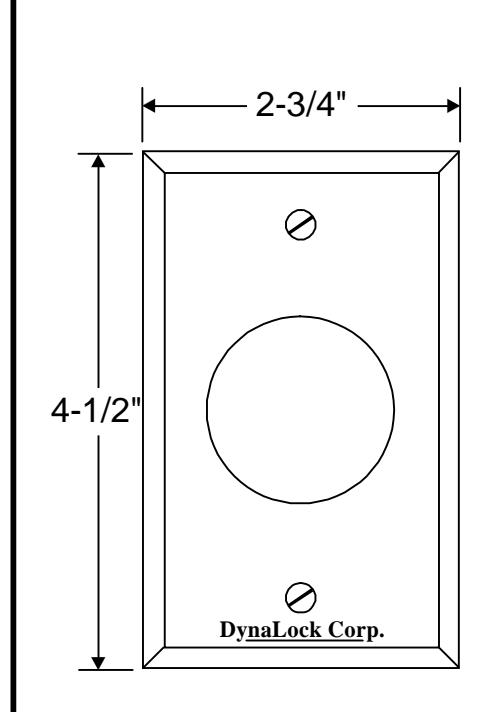

1-5/8" DIA. RED PLASTIC MUSHROOM BUTTON ON SINGLE-GANG BRUSHED STAINLESS STEEL FACEPLATE.

7" COLOR-CODED #18AWG WIRE LEAD TERMINATIONS.

6210 - SPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC 6220 - DPDT / ALTERNATE-ACTION CONTACTS, RATED 6 AMPS @ 125VAC

SPDT ALTERNATE-ACTION CONTACTS RATED 6 AMPS @ 125VAC MODEL #6220

DPDT ALTERNATE-ACTION CONTACTS RATED 6 AMPS @ 125VAC

DynaLock Corp.

705 Emmett Street Forestville, CT 06010

TITLE

MODEL #6210, #6220 PALM BUTTONS

DRN. BY JAS

DATE 06/16/98

SCALE __

DWG. NO.

600161

NC) YELLOW

BLACK
