6170 Series

Weatherproof Pushbutton

• • Commercial Grade
• • Sealed Against Moisture & Dust
• • Variety of Signage Options
• • Green LED Backlight
• • Lifetime Warranty

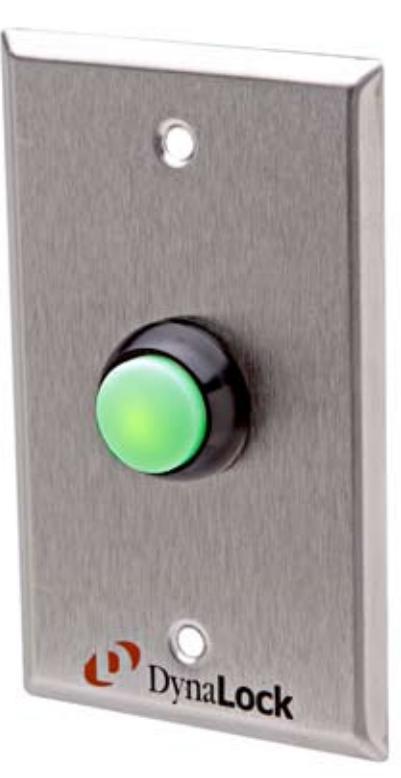

SHOWN WITH LED BACKLIGHT ILLUMINATED

Description

The 6170 Series Weatherproof Pushbutton features a commercial-grade switch assembly, completely sealed against moisture and dust intrusion. It is specifically designed to withstand outdoor exposure to the elements and other harsh environments.

The standard 3/4" diameter white, raised dome pushbutton includes a green LED backlight, selectable for 12 or 24VDC operation. Momentary-action, SPDT doublebreak contacts are standard on all models. The 6170 Series is ideally suited for exposed use as a momentary release or request-toexit control for electric locks on doors and gates, in most commercial, industrial and institutional applications.

Standard Features

• Water-tight to IP68: Button assembly is rated for immersion in water up to 1 meter. •
• Moisture-proof to IP64: Button assembly is rated for exposure to water splashing from any direction. •
• Dust-tight to IP64: Button assembly is rated for protection from dust ingress. •
• Thermoplastic Button integrated with a completely sealed aluminum body. •
• Operates in Extreme Temperatures: -67ºF to +185ºF •
• Tamper Resistant Screws and standard faceplate mounting screws are included. •
• Weatherproof Faceplate Gasket included. All models mount on single-gang box. Specify BBX option to include a weatherproof surface back box. •
• Lifetime Warranty: Made in the USA by DynaLock, with over 20 years experience in the manufacture of electronic security & access control products. •

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

6170 Series Weatherproof Pushbutton

Model Selection

6171

6172

6173

6174

6175

6176

All models are momentary-action and include green LED backlit button (shown illuminated).

Options

BBX Weatherproof Surface Back Box - 25/8" deep

CSF Custom Silkscreened Faceplate - Consult factory for price and delivery

SF Special Finish Faceplate - US32D standard, consult price book for other finishes

Specifications

Output Contacts: Form Z (SPDT-Double Break)

3A @ 115VAC / UL

LED Backlight: Green

10mA @ 12/24VDC (Selectable)

Ratings: Water-tight to IP68

Moisture-proof to IP64 Dust-tight to IP64

Operating Temp: -67°F to +185°F

Terminations: 7" color coded 18 AWG leads
