SPECIFICATIONS

#6010

#6020

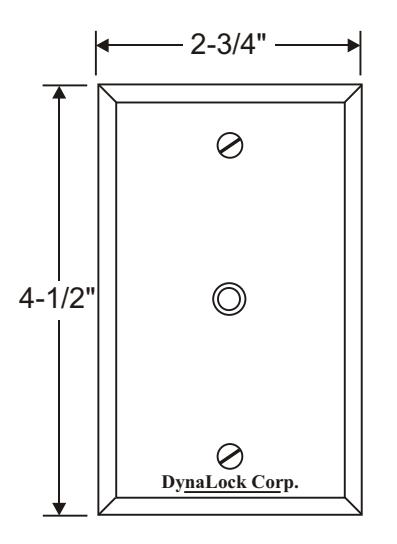

DYNALOCK MODELS #6010, 6020 INDICATOR STATION FEATURES:

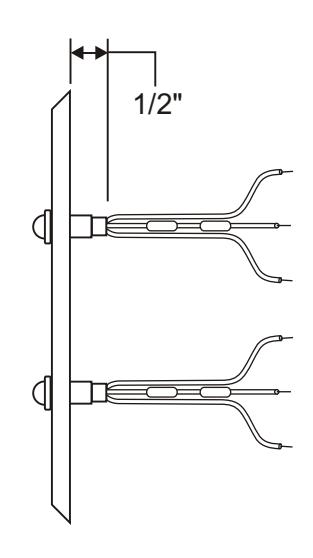

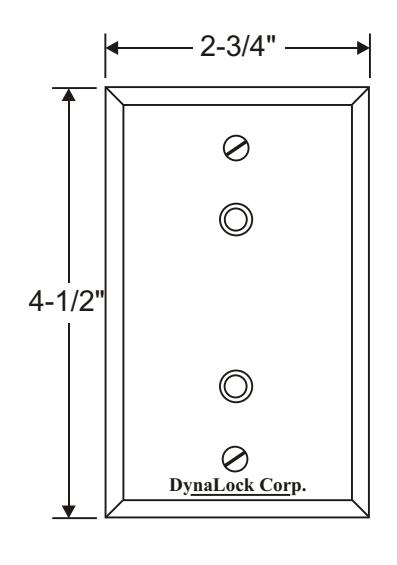

6010 - ONE (1) BI-COLOR LED INDICATOR 6020 - TWO (2) BI-COLOR LED INDICATORS

MOUNTED ON SINGLE-GANG BRUSHED STAINLESS STEEL FACEPLATE.

OPERATING VOLTAGE: FIELD-SELECTABLE 12 OR 24 VDC INPUT.

DESCRIPTION WIRING INFORMATION

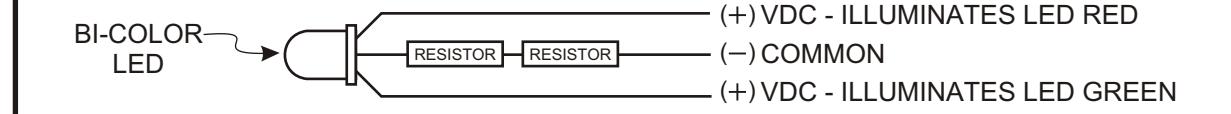

EACH BI-COLOR LED CAN DISPLAY IN TWO COLORS - RED OR GREEN AND IS PRE-CONFIGURED TO OPERATE ON 24VDC. FOR 12VDC OPERATION REMOVE THE OUTER RESISTOR FROM THE BLACK WIRE. THE LED MAY BE WIRED TO OPERATE AS FOLLOWS:

APPLYING ( ) VDC TO RED WIRE AND ( ) TO BLACK WIRE ILLUMINATES LED - RED.

APPLYING ( ) VDC TO GREEN WIRE AND ( ) TO BLACK WIRE ILLUMINATES LED - GREEN.
