6000 SERIES ACCESS/EGRESS CONTROLS MISCELLANEOUS OPTIONS WIRING INFORMATION

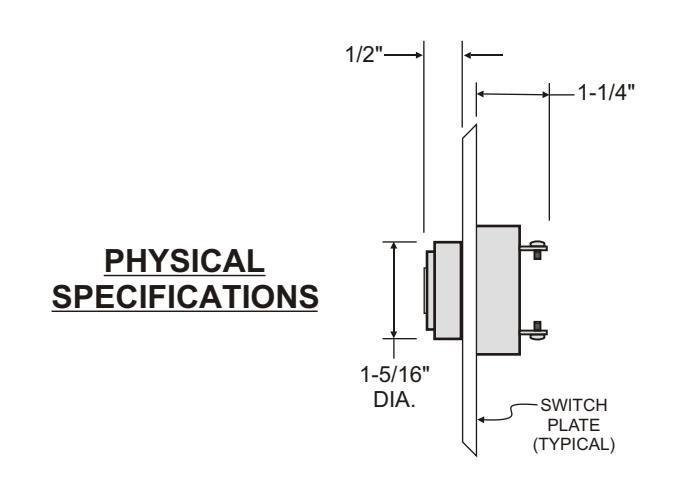

AUD OPTION - AUDIBLE ANNUNCIATOR

WIRING INFORMATION

OPERATING VOLTAGE: 1 - 28VDC @ 15 mA OUTPUT LEVEL: 90dB @ 30 CENTIMETERS

TONE FREQUENCY: 2900Hz

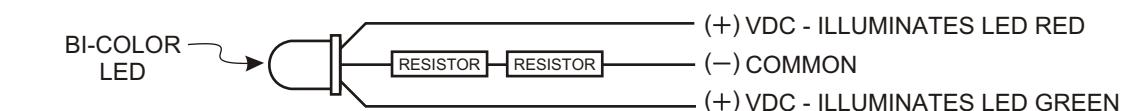

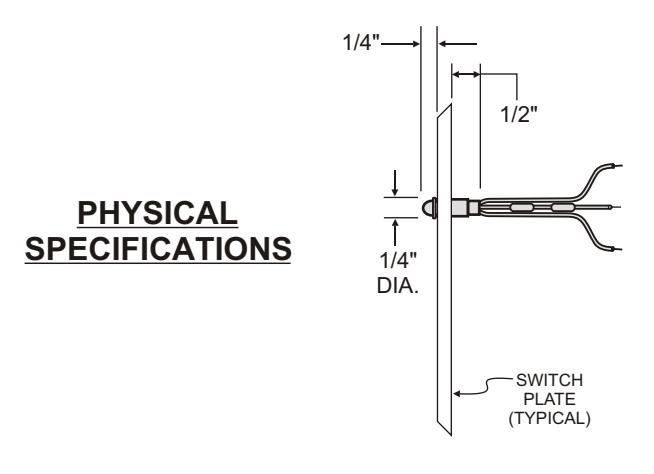

LED OPTION - BI-COLOR LED INDICATOR

WIRING INFORMATION

THE BI-COLOR LED CAN DISPLAY IN TWO COLORS - RED OR GREEN AND IS PRE-CONFIGURED TO OPERATE ON 24VDC. FOR 12VDC OPERATION REMOVE THE OUTER RESISTOR FROM THE BLACK WIRE. THE LED MAY BE WIRED TO OPERATE AS FOLLOWS:

$\{\backslash sf\; APPLYING\}\backslash ,(+)\backslash ,\{\backslash sf\; VDC\}\backslash ,\{\backslash sf\; TO\}\backslash ,\{\backslash sf\; RED\}\backslash ,\{\backslash sf\; WIRE\}\backslash ,\{\backslash sf\; AND\}\backslash ,(-)\backslash ,\{\backslash sf\; TO\}\backslash ,\{\backslash sf\; BLACK\}\backslash ,\{\backslash sf\; WIRE\}\backslash ,\{\backslash sf\; ILLUMINATES\}\backslash ,\{\backslash sf\; LED\}\backslash ,\{\backslash sf\; -RED\}.$

APPLYING(+)VDCTOGREENWIREAND(-)TOBLACKWIREILLUMINATESLED-GREEN.

DynaLock Corp.

705 Emmett Street Forestville, CT 06010

TITLE

6000 SERIES ACCESS/EGRESS CONTROLS "AUD"- AUDIBLE & "LED"- BI-COLOR LED OPTION SUPPLEMENTAL WIRING INSTRUCTIONS

DRN. B	Y JAS
DATE	06/13/01
SCALE

DWG. NO. 600207
