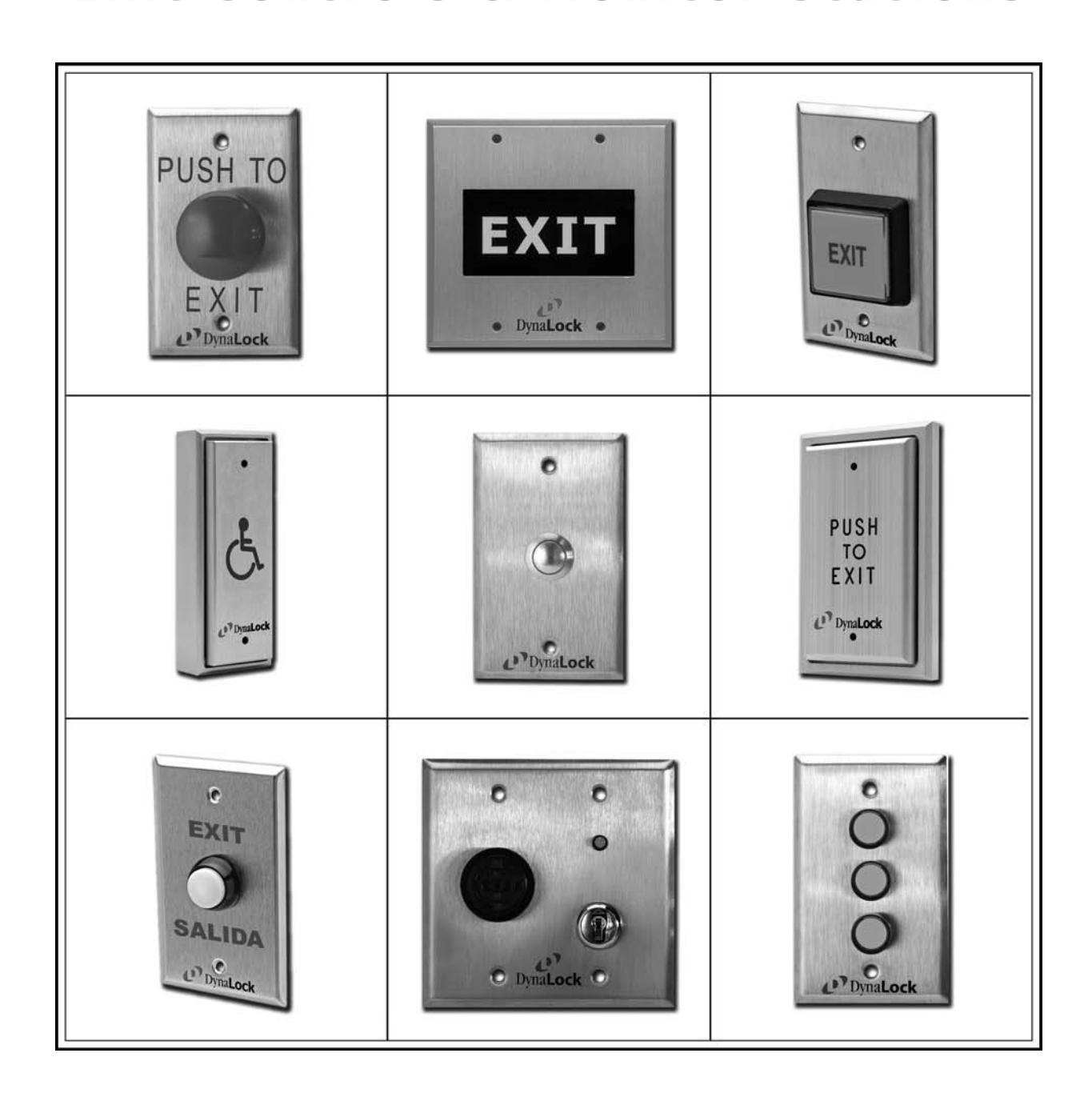

6000 Series

Exit Controls & Monitor Stations

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

1-5/8" Diameter Red Plastic Mushroom Button

Specifications

Contact rating: Terminations: 6 Amps @ 125VAC / UL

6210, 6220: 7" Color-Coded 18AWG Leads

6230: Screw Terminals

Faceplate: Finish: Single-Gang (Narrow & Double Available)

US32D Brushed Stainless Steel

(Others Available)

6210

SPDT A-A Contacts

6220

DPDT A-A Contacts

6230

FORM Z MOM Contacts (SPDT-Double Break)

1-5/8" Diameter Red Plastic Mushroom Button, Marked "EXIT"

Specifications

Contact rating: 6 Amps @ 125VAC / UL

Terminations: 6211, 6221: 7" Color-Coded 18AWG Leads

6231: Screw Terminals

Faceplate: Single-Gang (Narrow & Double Available)

Finish: US32D Brushed Stainless Steel

(Others Available)

Signage: Silkscreened "EXIT" In Red Letters

6211

SPDT A-A Contacts

6221

DPDT A-A Contacts

6231

FORM Z MOM Contacts (SPDT-Double Break)

2" Square Plastic Illuminated Button

6270

SPDT MOM Contacts with Illuminated Green Button

Specifications

Contact Rating: 10 Amps @ 125VAC / UL

Illumination: 12/24 VDC

Terminations: Faceplate: 7" Color-Coded 18AWG Leads Single-Gang (Double Available)

Finish: US32D Brushed Stainless Steel (Others Available)

Signage: "EXIT" in Black Letters

3/8" Diameter Stainless Steel Time Delay Button

6275

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

Specifications

Contact Rating: Terminations: 10 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads

Faceplate: Finish: Single-Gang (Narrow & Double Available) US32D Brushed Stainless Steel (Others Available)

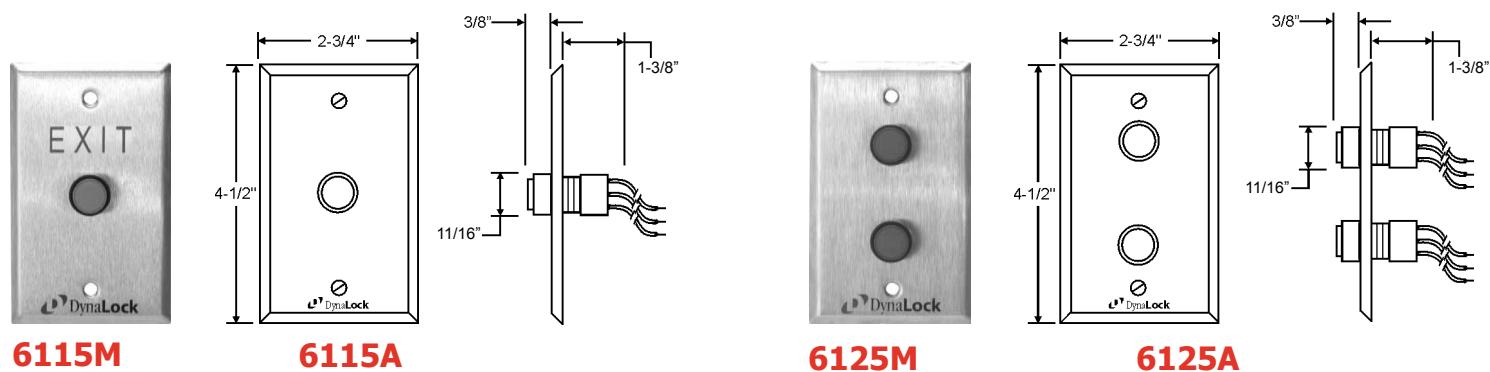

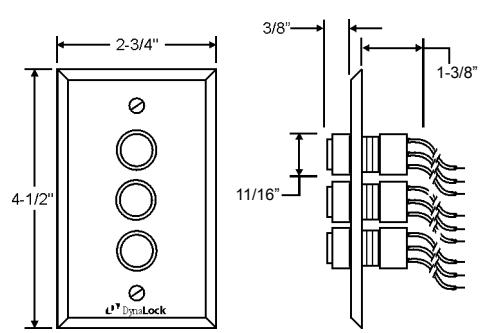

6100 Series 5/8" Diameter Green Plastic Button

SPDT A-A Contacts

6135M SPDT MOM Contacts x 3

6135A SPDT A-A Contacts x 3

SPDT MOM Contacts x 2

6125M

6145M SPDT MOM Contacts x 4

6145A SPDT A-A Contacts x 4

6125A

SPDT A-A Contacts x 2

11/16"

Specifications

Contact Rating: Terminations: Faceplate: 5 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads 6115, 6125 & 6135 Single-Gang (Narrow & Double Available)

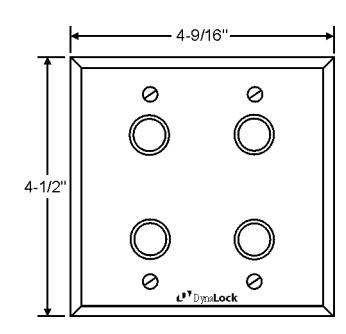

6145 Double-Gang

Illumination: Optional. Current Draw 15mA @ 24VDC /

10mA @12VDC.

Finish: US32D Brushed Stainless Steel

(Other Finishes Available)

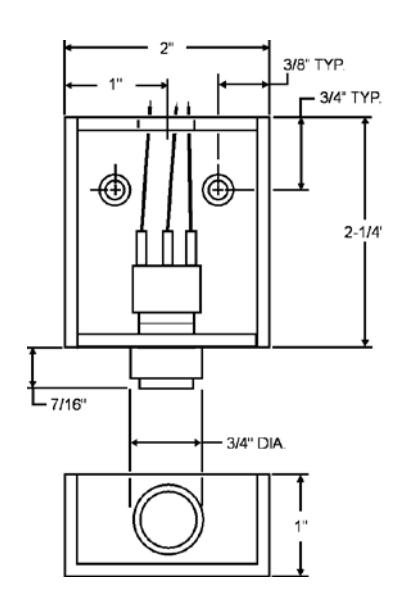

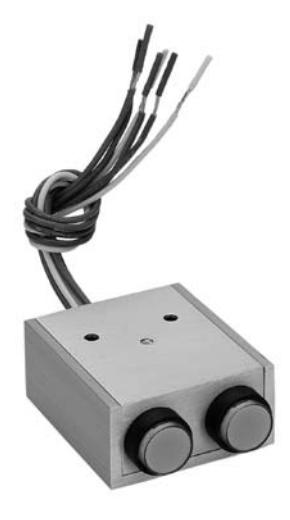

5/8" Diameter Green Plastic Surface Mount Button

6335 SPDT A-A Contacts

6336 SPDT MOM Contacts

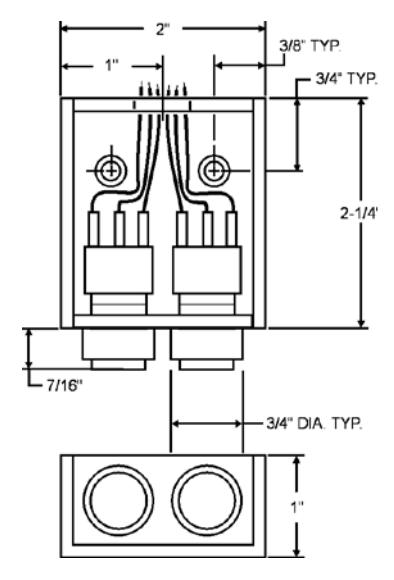

6337 SPDT A-A Contacts x 2

6338 SPDT MOM Contacts x 2

Specifications

Contact Rating: Terminations: 5 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads

Illumination: (optional) Current Draw 15mA @ 24VDC,

10mA @12VDC

Finish: US28 Satin Aluminum Anodized

(Other Finishes Available)

Description

Ideal for under the desk or counter, for control of electronic locks.

See back page for options, available special finishes & switch terminology

Code Compliant Exit Controls

1-5/8" Diameter Red Plastic Time Delay Mushroom Button - NFPA 101

6290

FORM Z Contacts (SPDT-Double Break) with 0-60 second Pneumatic Delay, factory preset to 30 seconds.

Specifications

Contact rating: Terminations: 10 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads

Faceplate: Finish: Single-Gang (Narrow & Double Available) US32D Brushed Stainless Steel (Others Available)

Signage: Silkscreened "PUSH TO EXIT" in Red

Complies With Life Safety Code NFPA 101, 2003 Access Controlled Egress Doors Sec. 7.2.1.6.2

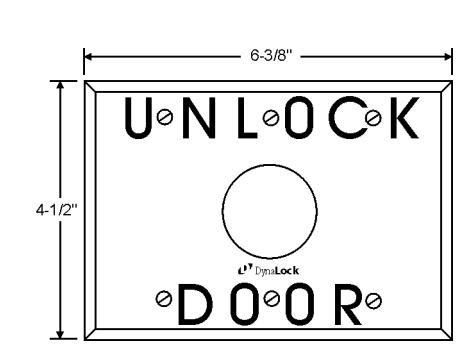

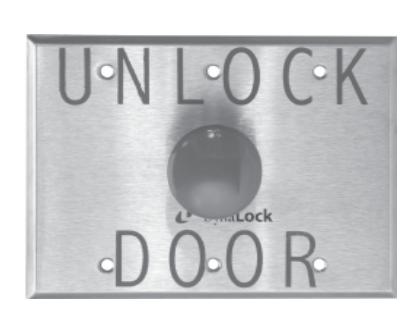

1-5/8" Diameter Red Plastic Time Delay Mushroom Button - City of Denver

6291

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

Specifications

Contact Rating: Terminations: 10 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads

Faceplate: Three-Gang

Finish: US32D Brushed Stainless Steel (Others Available)

Signage: Silkscreened "UNLOCK DOOR" in Red

Complies With City of Denver Access Control Policy Statement 1994, Paragraph 4

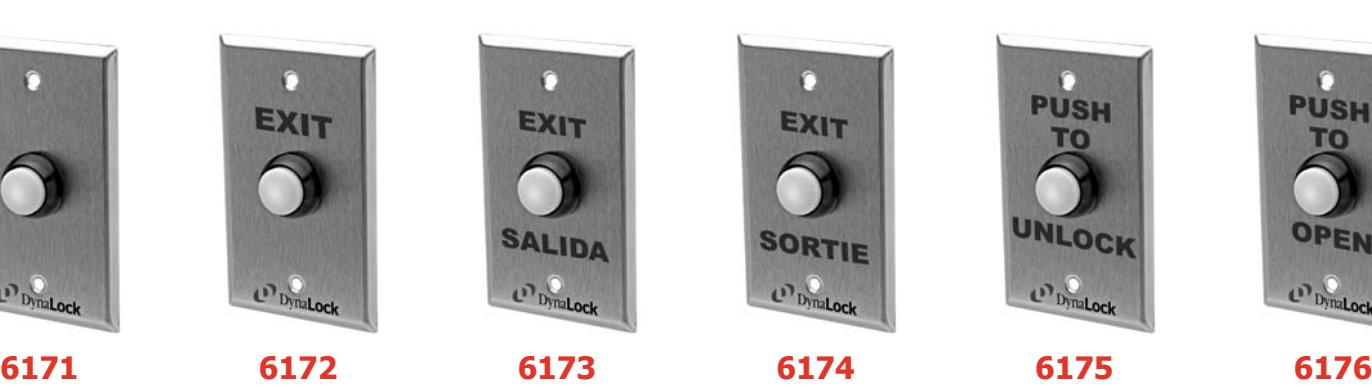

Outdoor Controls

Weatherproof Pushbutton

All models are momentary-action and include green LED backlit button (shown illuminated).

Description

The 6170 Series is specifically designed to withstand outdoor exposure to the elements and other harsh environments, with commercial-grade switch assembly, completely sealed against moisture and dust intrusion.

Specifications

Contacts: Form Z (SPDT-Double Break)

3A @ 115VAC / UL

LED Backlight: Green

10mA @ 12/24VDC (Selectable)

Ratings: Water-tight to IP68

Moisture-proof to IP64 Dust-tight to IP64

Operating Temp: -67ºF to +185ºF

Terminations: 7" color coded 18 AWG leads

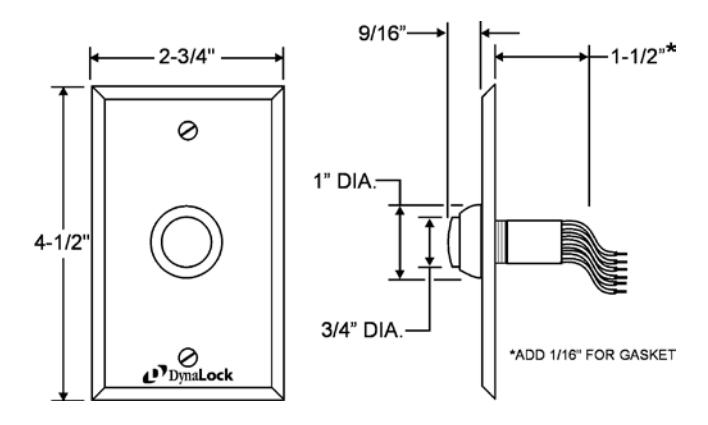

1" Diameter Stainless Steel Vandal/Weather Resistant Button

Specifications

Terminations:

Contact Rating: 6280 1 Amp @ 125VAC / UL

6282 3 Amps @ 125VAC / UL 7" Color-Coded 18AWG Leads

Faceplate: Single-Gang (Narrow & Double Available)

Finish: US32D Brushed Stainless Steel

(Others Available)

6280

SPDT MOM Contacts

6282

SPDT A-A Contacts

See back page for options, available special finishes & switch terminology

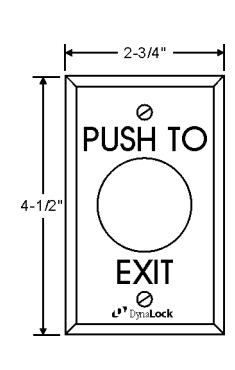

Single Gang - PUSH TO EXIT

Specifications

Contact rating: 6700: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved "PUSH TO EXIT" in black letters US28 Satin Aluminum (others available)

6700

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6710

SPDT A-A Contacts

6720

DPDT A-A Contacts

6730

SPDT MOM Contacts All Active Operation

6740

DPDT MOM Contacts All Active Operation

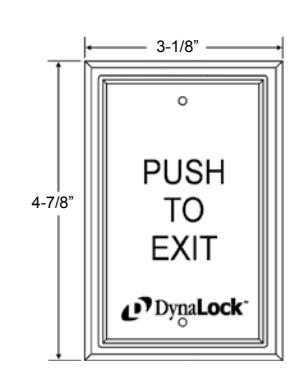

Single Gang - PUSH TO EXIT - Recessed Style

Specifications

Contact rating: 6750: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved "PUSH TO EXIT" in black letters Finish: US28 Satin Aluminum (others available)

6750

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6751 SPDT A-A Contacts

6752

DPDT A-A Contacts

SPDT MOM Contacts All Active Operation

5754

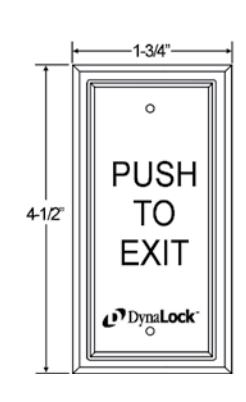

Mullion/Narrow - PUSH TO EXIT

Specifications

Contact rating: 6800: 10 Amps @ 125VAC / UL

All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved "PUSH TO EXIT" in black letters Finish: US28 Satin Aluminum (others available)

6800

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6810

SPDT A-A Contacts

6820

DPDT A-A Contacts

5830

SPDT MOM Contacts All Active Operation

6840

DPDT MOM Contacts All Active Operation

Mullion/Narrow - PUSH TO EXIT - Recessed "Semi-Flush" Style

Specifications

Contact rating: 6850: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved "PUSH TO EXIT" in black letters Finish: US28 Satin Aluminum (others available)

Specifically designed for installation in aluminum store front frame, requiring minimal cut-out/preparation.

6850

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6851 SPDT A-A Contacts

6852

DPDT A-A Contacts

6853

SPDT MOM Contacts All Active Operation

6854

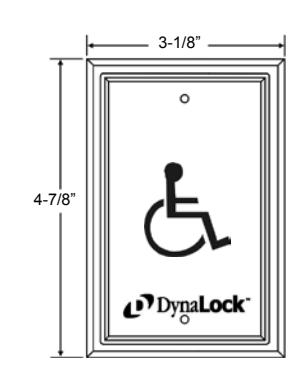

Single Gang - Handicapped Symbol

Specifications

Contact rating: 6705: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved Blue Handicapped Symbol Finish: US28 Satin Aluminum (others available)

6705

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6715 SPDT A-A Contacts

6725

DPDT A-A Contacts

6735

SPDT MOM Contacts All Active Operation

6745

DPDT MOM Contacts All Active Operation

Single Gang - Handicapped Symbol - Recessed Style

Specifications

Contact rating: 6755: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads or screw terminals

Signage: Engraved Blue Handicapped Symbol Finish: US28 Satin Aluminum (others available)

6755

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6765 SPDT A-A Contacts

6775 DPDT A-A Contacts

6785 SPDT MOM Contacts All Active Operation

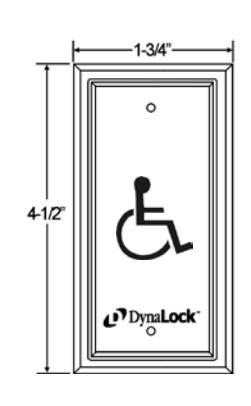

Mullion/Narrow - Handicapped Symbol

Specifications

Contact rating: 6805: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved Blue Handicapped Symbol Finish: US28 Satin Aluminum (others available)

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

SPDT A-A Contacts

6825

DPDT A-A Contacts

6835

SPDT MOM Contacts All Active Operation

6845

DPDT MOM Contacts All Active Operation

Mullion/Narrow - Handicapped Symbol - Recessed "Semi-Flush" Style

Specifications

Contact rating: 6855: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved Blue Handicapped Symbol Finish: US28 Satin Aluminum (others available)

Specifically designed for installation in aluminum store front frame, requiring minimal cut-out/preparation.

6855

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6865 SPDT A-A Contacts

6875 DPDT A-A Contacts

SPDT MOM Contacts All Active Operation

6895

Specialty Exit Controls

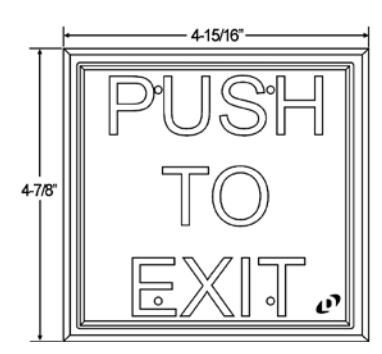

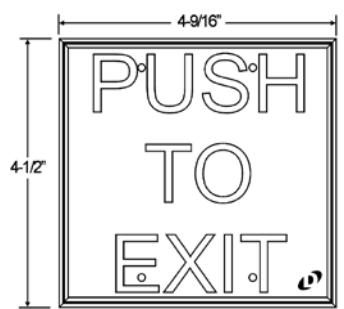

Double Gang Red Pushplate with Engraved White "PUSH TO EXIT"

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

1-1/2" SPDT

6901

SPDT A-A Contacts

6911

6921 DPDT A-A Contacts

6931 SPDT MOM Contacts All Active Operation

6941 DPDT MOM Contacts All Active Operation

Specifications

Contact rating:

6901: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

or screw terminals

Signage: Engraved "PUSH TO EXIT", White, 1/8" Stroke, 1" Height

Finish: Anodized Red

Heavy Duty & Vandal Resistant

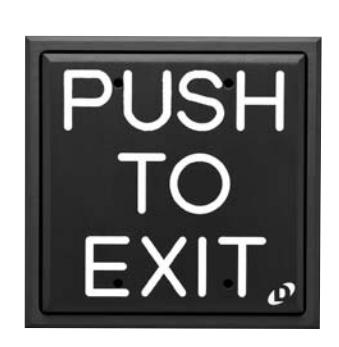

Double Gang Red Recessed-Style Pushplate with Engraved White "PUSH TO EXIT"

Specifications

Contact rating: 6951: 10 Amps @ 125VAC / UL All Others: 6 Amps @ 125VAC / UL

Terminations: 7" Color-Coded 18AWG leads

Signage: or screw terminals Engraved "PUSH TO EXIT",

White, 1/8" Stroke, 1" Height

Finish: Anodized Red Heavy Duty & Vandal Resistant

6951

FORM Z Contacts (SPDT-Double Break) with 0-60 Second Pneumatic Delay

6961 SPDT A-A Contacts

6971 DPDT A-A Contacts

6981 SPDT MOM Contacts All Active Operation

6991

Specialty Exit Controls

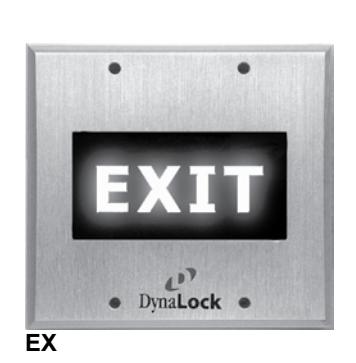

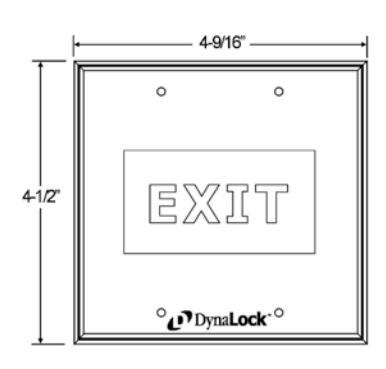

Double Gang Pushplate with "EL" Electroluminescent Illuminated Signage

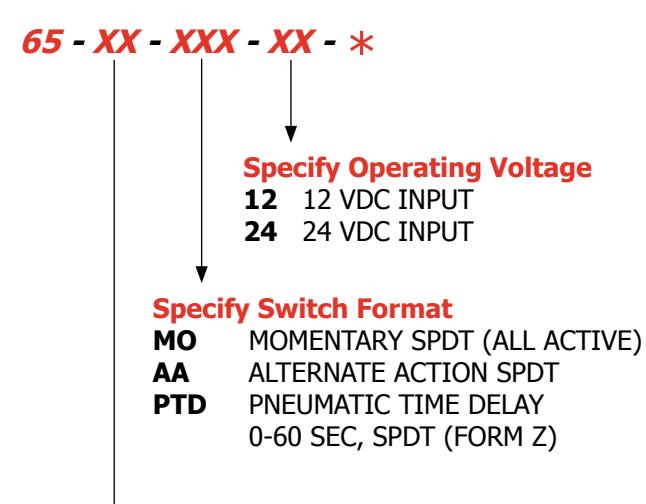

Model Selection:

Specify Signage

EX "EXIT"

PE "PUSH TO EXIT"

OP "OPEN"

PO "PUSH TO OPEN"

SA "SALIDA" SPANISH (EXIT) SO "SORTIE" FRENCH (EXIT)

ES "EXIT/SALIDA" ENGLISH & SPANISH

EF "EXIT/SORTIE" ENGLISH & FRENCH AB "ABRA" SPANISH (OPEN)

OU "OUVREZ" FRENCH (OPEN)

OA "OPEN/ABRA" ENGLISH & SPANISH OZ "OPEN/OUVREZ" ENGLISH & FRENCH

Specifications

Contact rating: PTD: 10 Amps @ 125VAC / UL

All Others: 6 Amps @ 125VAC / UL

Terminations: Current Draw: 7" Color-Coded 18AWG Leads 30mA @ 12 or 24 VDC

Lamp illuminates indefinitely. Optimal brightness up to 10,000 hours (continuous usage). Consult factory for field replacement.

Description

Double gang pushplates utilize electroluminescent "EL" flat light illuminated signage, providing enhanced visibility in smoke and/or darkness. Electroluminescent light is a true field-source emitter, having greater perceived brightness at considerable distances, helping occupants safely find the 6500 exit control, and the adjacent exit door in an emergency.

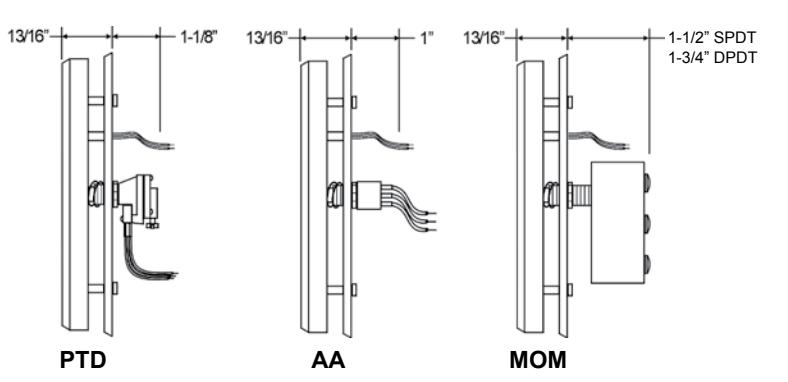

Options *

DP DPDT Switch (Not available with PTD option).

SF SPECIAL FINISH - US28 standard. US3, US4, US10, US13, US10B, US19, US26 available.

CS CUSTOM SIGNAGE - Special order. Consult factory for price and availability.

Example: 65 - PE - MO - 12 - US3 - DP

Monitor & Control Stations

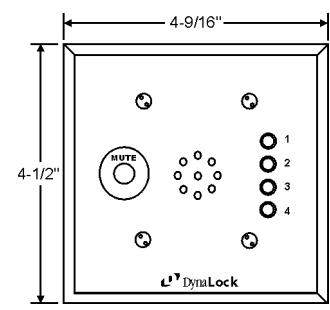

Four-Zone Delay Egress Monitor & Control Station

FITS INTO DOUBLE GANG BOX (INCLUDED) MINIMUM DEPTH 1-3/4"

6350

Four-Zone Delay Egress Monitor Station

Description

Four zone monitor station designed exclusively for use with DynaLock Series 3101B Delay Egress Locks equipped with the Dynastat Force Sensor Option (DYN). The 6350 is mounted on a standard two-gang plate and includes four bi-color LED indicators and one audible sounder, with mute switch, to visually and audibly signal delay egress status at a remote location.

The 6350 includes a two-gang masonry backbox and a Model 5312 12VAC plug-in transformer power supply. A three-conductor wire run is required between each Delay Egress Lock and the 6350, for full functioning.

Specifications

Input Voltage: 12 VDC/VAC / .042A

(12VAC plug-in transformer included)

Faceplate: Double-Gang

Finish: US32D Brushed Stainless Steel

(Others Available)

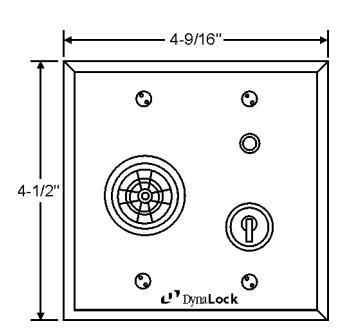

Single-Zone Delay Egress Monitor & Control Station

FITS INTO DOUBLE GANG BOX MINIMUM DEPTH 2"

6370

Single-Zone Delay Egress Monitor & Control Station

Description

Single zone monitor & control station designed exclusively for use with DynaLock Series 3101B Delay Egress Locks equipped with the Dynastat Force Sensor Option (DYN). The 6370 is mounted on a standard two-gang plate and includes one bi-color LED indicator, audible sounder, and a reset/bypass keyswitch for status indication and control of delay egress lock at a remote station. An eightconductor wire run is required between the 6350 and the lock for full functioning.

Specifications

Audible Input Voltage: Audible Output: 1-28V DC / .015 A 90dB at 30 cm

LED Input Voltage: Keyswitch: 12 or 24V DC (Field Selectable) 3101B Style - momentary reset/

maintained bypass

Faceplate: Double-Gang

Finish: US32D Brushed Stainless Steel

(Others Available)

Keyswitch, Audible, and LED have individual connections, and can be connected to the 3101B in a variety of ways. Please visit DynaLock.com for suggested wiring instructions.

Monitor Stations

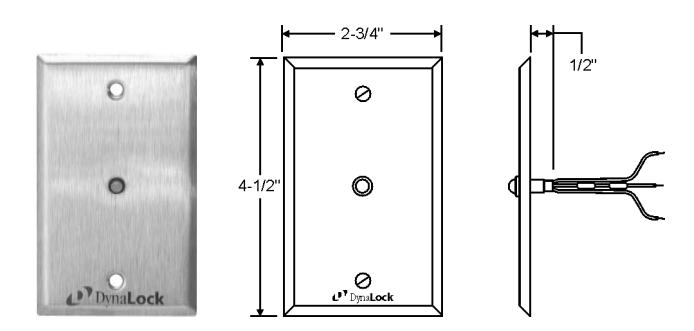

Bi-Color LED Status Indicator

6010

Single Bi-Color LED

6020

Two Bi-Color LED's (not pictured)

Specifications

Input Voltage: Terminations: LED Colors: 12 or 24V DC (Field Selectable) 7" Color-Coded 22AWG Leads Red or Green (Field Selectable)

Faceplate: Finish: Single-Gang (Narrow & Double Available) US32D Brushed Stainless Steel (Others Available)

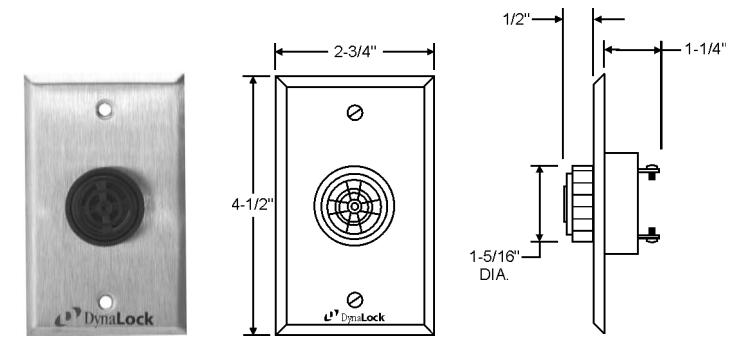

Audible Status Indicator

6300

Audible Station

Specifications

Input Voltage: Terminations: Output: 1-28V DC / .015 A Screw Terminals 90dB at 30 cm

Faceplate: Single-Gang (Double Available)

Finish: US32D Brushed Stainless Steel (Others Available)

Options

6115-6145, 6010, 6020, 6300, 6335-6338 Models

ATS ANTI TAMPER SWITCH - signals removal of faceplate (not available on 6335-6338)

AUD AUDIBLE INDICATOR - 1-28VDC, 90dB, must also specify DBL option (not available on 6145)

DBL TWO GANG FACEPLATE - 4-9/16" wide, provides space for options

ILLUMINATED PUSHBUTTON - specify 12 or 24VDC

LED BI-COLOR LED INDICATOR - 12 or 24VDC field-selectable, red/green indication

NR NARROW FACEPLATE - 1-3/4" wide (not available on 6145 or 6300)

P2 DPDT CONTACTS - upgrade to DPDT contacts

WPC WEATHER PROOF COVER - single gang, flip cover (6115 only)

SF SPECIAL FINISHES - see below

CSF CUSTOM SILKSCREENED FACEPLATE - consult factory

6200 Series

ATS ANTI TAMPER SWITCH - signals removal of faceplate

AUD AUDIBLE INDICATOR - 1-28VDC, 90dB, must also specify DBL option (not available on 6291)

DBL TWO GANG FACEPLATE - 4-9/16" wide, provides space for options (not available on 6291)

LED BI-COLOR LED INDICATOR - 12 or 24VDC field-selectable, red/green indication

NR NARROW FACEPLATE - 1-3/4" wide (not available on 6270 or 6291)

CB CONTACT BLOCK - add one additional SPST contact to 6230/6231 (specify NO or NC) GREN BUTTON - green plastic mushroom button (on any 1-5/8" diameter button models)

SF SPECIAL FINISHES - see below

CSF CUSTOM SILKSCREENED FACEPLATE - consult factory

Accessories

BBX WEATHERPROOF SURFACE BACK BOX - 2 5/8" deep, single gang

Special Finishes

US3 BRIGHT BRASS US4 SATIN BRASS US10B DARK BRONZE US26 BRIGHT CHROME US10 LIGHT BRONZE * US13 MEDIUM BRONZE * US19 BLACK SATIN *

Switch Terminology

A-A ALTERNATE ACTION/MAINTAINED

MOM MOMENTARY ACTION NO NORMALLY OPEN NC NORMALLY CLOSED

FORM Z SINGLE POLE DOUBLE THROW, DOUBLE BREAK -

SPST SINGLE POLE SINGLE THROW SPDT SINGLE POLE DOUBLE THROW DPST DOUBLE POLE SINGLE THROW DPST DOUBLE POLE DOUBLE THROW

PTD PNEUMATIC TIME DELAY (NON-ELECTRONIC,

ADJUSTABLE RELOCK TIME)

DYNALOCK CORPORATION

705 EMMETT STREET / PO BOX 2728 BRISTOL, CT 06011-2728 PHONE: 877-DYNALOCK / FAX: 860-585-0338 E-MAIL: INFO@DYNALOCK.COM

WEBSITE: WWW.DYNALOCK.COM

Featuring DynaLife® Lifetime Warranty

0

^* only available on pushplates
