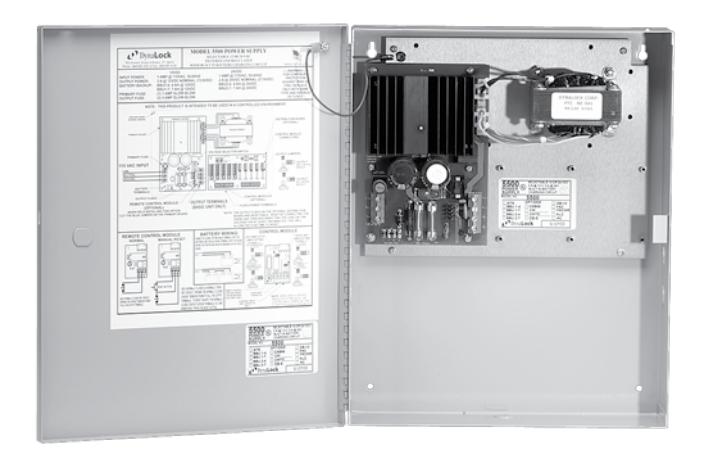

5500 Series

Medium Duty Power Supply

• 3A @ 12VDC / 2A @ 24VDC
• Up To 10 Fused Outputs
• Fire Alarm Tie-In
• Battery Back-Up
• Lifetime Warranty

NYC MEA #23-92-E

Description

DynaLock 5500 Series Power Supply offers the reliability of solid state electronics, versatility of field selectable voltage output, and flexibility of modular design. Use direct power output or choose one of the available expansion boards.

Specify a distribution board (DB5 / DB10) for 5 or 10 individual fused outputs. Add individual control modules for switched outputs, with or without time delay. Specify the interlock logic board (ILB) option for a 4 DPDT relay board. Optional fire alarm control (FAC) relay provides integration with fire or emergency alarm system. A battery charging circuit is standard. Specify 4 or 7 amp hours, and 12 or 24 volts for battery backup.

The DynaLock 5500 Power Supply provides clean, filtered, and regulated DC voltage. Specify for all electronic devices, including access controls, electromagnetic locks, and CCTV.

Standard Features

• Filtered and Regulated Voltage Output
• Field Selectable 12 or 24 VDC.
• Built-in Charging Circuit
• Hinged Cover Enclosure: Off-white finish with conduit knockouts and optional key lock cover. Dimensions 4"x12"x15".
• Lifetime Warranty: Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.

Optional Features

• Anti-Tamper Switch (ATS) indicates unauthorized opening of the enclosure cover.
• Key Lock (KLC) for enclosure cover.
• Fire Alarm Control (FAC) tie point.
• Power Cord (PC) for use with typical wall plug in lieu of hard-wired 120 VAC.
• Individual Fused Outputs: 5 (DB5) or 10 (DB10) output distribution board.
• Controlled Outputs: Individual Control Modules (CM/CMTD) offer the flexibility of selectable inputs (NO/NC), fail-safe or fail-secure outputs, and adjustable time delay.

LIFE SAFETY PRODUCTS

FULLY INTEGRATED SECURITY SYSTEMS Electromagnetic Locks | Controls | Power Supplies

Options

ATS ANTI-TAMPER SWITCH - Signals opening of enclosure cover (SPST, NO contacts)

BBU1-4 BATTERY BACK-UP - 4 AH @ 12VDC, 1 battery BBU1-7 BATTERY BACK-UP - 7 AH @ 12VDC, 1 battery BBU2-4 BATTERY BACK-UP - 4 AH @ 24VDC, 2 batteries BBU2-7 BATTERY BACK-UP - 7 AH @ 24VDC, 2 batteries

CAB CABLE KIT - For third party batteries (included at no charge with all BBU options)

CONTROL MODULE - Plug in allowing control over individual outputs (requires DB5 or DB10) CMTD CONTROL MODULE with TIME DELAY - Plug in, 0-80 second relock delay (requires DB5 or DB10)

DB5 DISTRIBUTION BOARD - 5 zone fused, accepts any combination of up to 5 CMs or CMTDs DISTRIBUTION BOARD - 10 zone fused, accepts any combination of up to 10 CMs or CMTDs

FAC FIRE ALARM CONTROL - Plug in for connection to fire alarm system (One per supply) FACMR FIRE ALARM CONTROL, MANUAL RESET - Latches upon fire alarm (Requires FAC option)

ILB INTERLOCK LOGIC BOARD - Four DPDT relays

KLC KEY LOCKED COVER - Includes 2 keys

PC POWER CORD - Six foot, pre-connected, 3-wire plug-in line cord

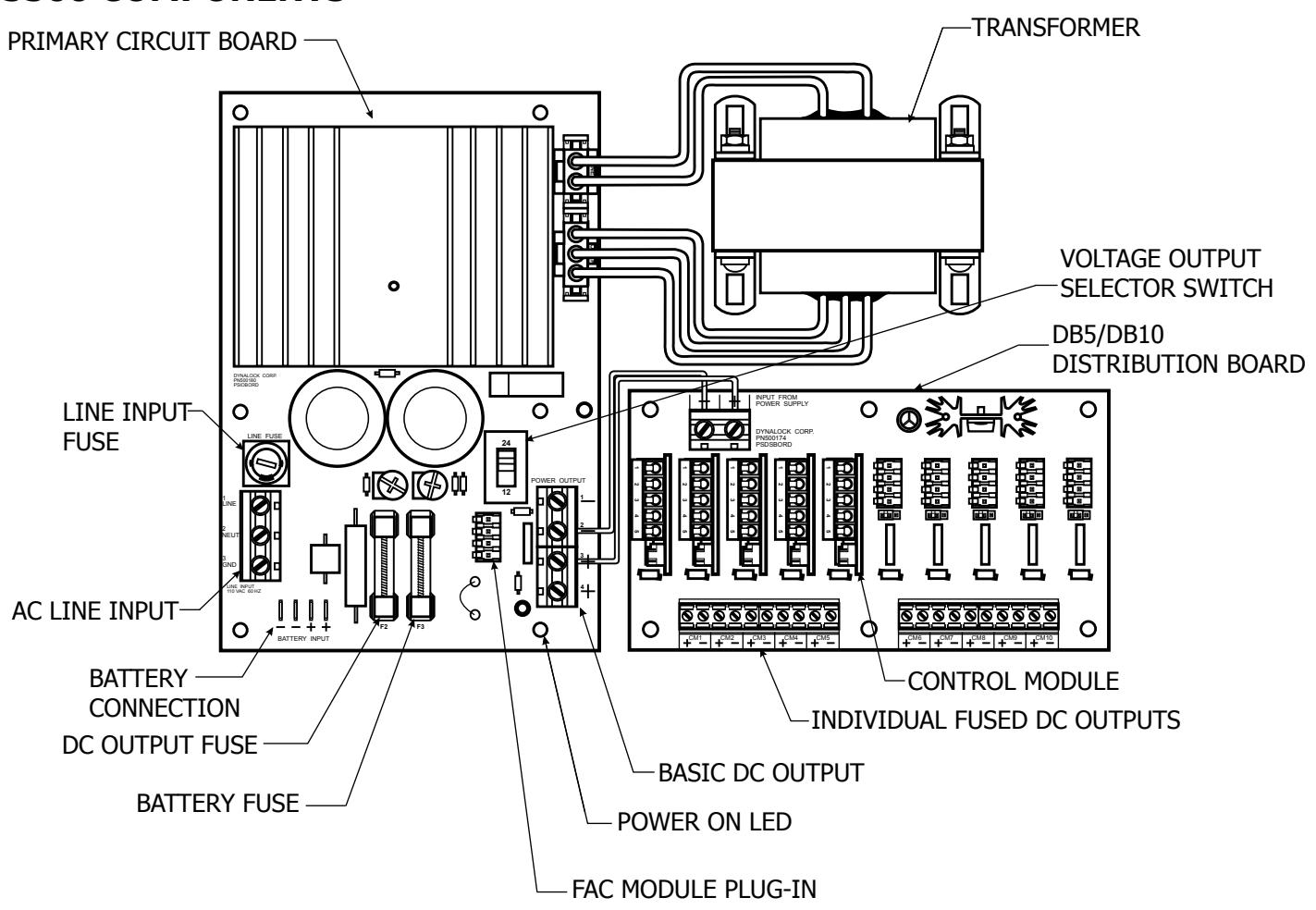

5500 COMPONENTS

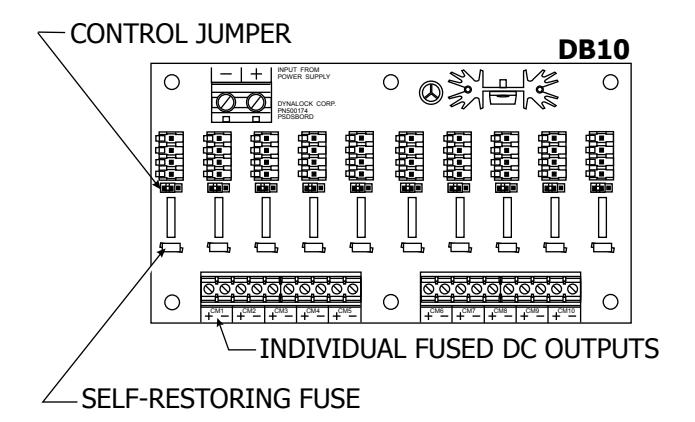

DB5 / DB10 Distribution Board

Two distribution boards, 5 and 10 outputs respectively, are available to provide fused individual tie points, to facilitate lock wiring. The output fuses are self-restoring by correcting the overload and disconnecting the line voltage for 2 minutes. A control jumper at each station selects unswitched voltage or the use of a Control Module.

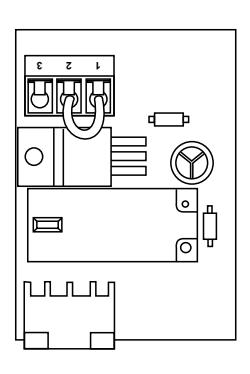

FAC Module

Fire Alarm Control. Plugs into the primary circuit board. When a signal is received from an emergency panel it instantly unlocks all locking devices driven by the 5500 Power Supply. The module will automatically reset when the emergency signal is restored or may be wired to require a manual reset (FACMR).

lФ

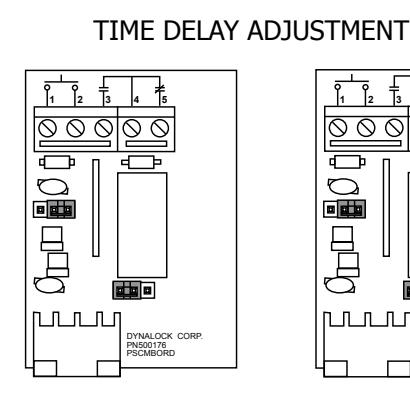

CM & CMTD Modules

Control Module and Control Module with Time Delay. Plug-in isolation relay board to switch lock power. Includes auxiliary relay contacts to signal other devices such as CCTV or interlocks. The CMTD module offers the same features with the addition of an adjustable 0-80 second delay on relock.

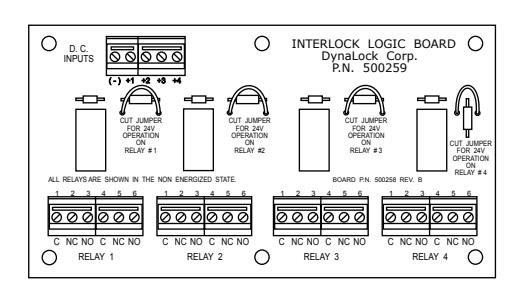

ILB Board

Interlock Logic Board. Four DPDT relays for control of interlocks. Each relay has an individual trigger which can be set for 12 or 24VDC input.

5500 Series Power Supply

Specifications

MECHANICAL

Enclosure: 4" x 12" x 15" Steel

Weight: 14 lbs. (average) add approx. 6 lbs. per battery

Color: Off-white

ELECTRICAL

Input Power: 1A @ 115VAC, 50-60 Hz Output Voltage: 12VDC - nominal 13.8V

24VDC - nominal 27.6V

Output Current: 3A @ 12VDC / 2A @ 24VDC

Input Fuse: 1A 3AG Slo Blo

Output Fuses: Battery/DC Output - 5A 3AG Slo Blo

DB Fuses: Self-resetting when powered down for 2 minutes

Basic Outputs: Capacity 10AWG Module Outputs: Capacity 14 AWG

Accessories

• 6000 Series Exit Controls

Push-buttons in a variety of switching configurations and exit sensor bars.

• 7000 Series Access Controls

Keyswitches accept most mortise cylinders for controlled access. Rugged digital entry keypads.

• 8000 Series Consoles

Desktop, slope front and rack mount fabricated to customer specifications.

Lock Capacity

OUTPUT	MAX	LOCKING DEVICE
VOLTAGE	LOAD	1300	2511	2011/3000	2268-10	3006	3101B
12VDC	3A	3	5	6	4	5	3
24VDC	2A	4	7	8	5	6	3

Recommended Wire Gauge

	Load Current At 12V
WIRE RUN (FT)	0.25A	0.5A	0.75A	1A	1.25A	1.5A	2A
100	18	18	16	14	14	12	12
150	18	16	14	12	12	12	-
200	16	14	12	12	-	-	-
250	16	14	12	-	-	-	-
300	16	12	12	-	-	-	-
400	14	12	-	-	-	-	-
500	14	-	-	-	-	-	-
750	12	-	-	-	-	-	-
1000	-	-	-	-	-	-	-

Load Current At 24V
WIRE RUN (FT)	0.25A	0.5A	0.75A	1A	1.25A	1.5A	2A
100	18	18	18	18	16	16	14
150	18	18	16	16	14	14	12
200	18	18	16	14	14	12	12
250	18	16	14	14	12	12	12
300	18	16	14	12	12	12	-
400	18	14	12	12	-	-	-
500	16	14	12	-	-	-	-
750	14	12	-	-	-	-	-
1000	14	_	-	-	_	-	-
