5025 Series

Light Duty Power Supply

• • 1A @ 12 or 24VDC
• • Emergency Shutdown
• • Battery Back-Up
• • Lifetime Warranty

Description

DynaLock 5025 Series Power Supply offers reliable solid state electronics, convenient emergency shutdown, and battery back-up circuitry as standard equipment. This cost effective package provides clean, filtered and regulated DC voltage for devices totaling up to 1 amp at 12 or 24 volts DC. Field selectable voltage allows design flexibility and simplifies ordering. Specify for all electronic devices, including access controls, electromagnetic locks, and CCTV.

Standard Features

• Filtered and Regulated Voltage Output
• Field Selectable 12 or 24 VDC.
• Emergency Shutdown: De-energizes outputs upon signal from fire/emergency panel.
• Battery Back-Up and built-in charging circuit.

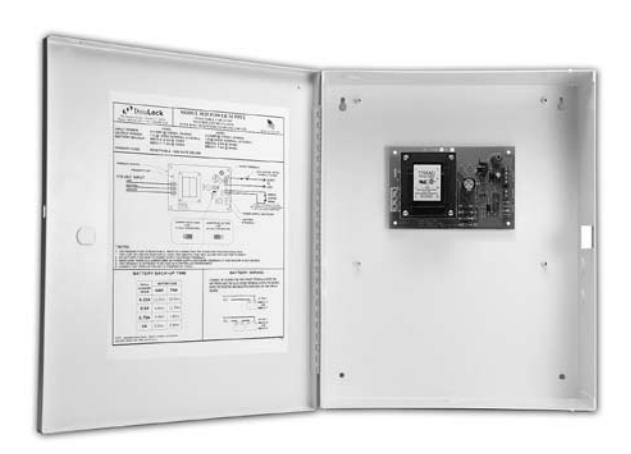

• Hinged Cover Enclosure: Off-white finish with conduit knockouts and optional key lock. Dimensions 4"x12"x15".
• Self Resetting Fuse: Eliminates the need to carry fuses. Simply power down or remove load to reset.
• Lifetime Warranty: Made in the USA by DynaLock, with over 20 years experience in the manufacture of electronic security & access control products.

Options

ATS ANTI-TAMPER SWITCH - Signals opening of enclosure cover. SPST, NO contacts

BBU1-4 BBU1-7 BBU2-4 BBU2-7 BATTERY BACK-UP - 4 AH @ 12VDC, 1 battery BATTERY BACK-UP - 7 AH @ 12VDC, 1 battery BATTERY BACK-UP - 4 AH @ 24VDC, 2 batteries BATTERY BACK-UP - 7 AH @ 24VDC, 2 batteries

CAB CABLE KIT - For third party batteries (included at no charge with all BBU options)

KLC KEY LOCKED COVER - Includes 2 keys

PC POWER CORD - Six foot, pre-connected, 3-wire plug-in line cord

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

5025 Series Power Supply

Specifications

MECHANICAL

Enclosure: 4" x 12" x 15" Steel

Weight: 10 lbs Color: Off-white

ELECTRICAL

Input Power: 0.45A @ 115VAC, 50-60 Hz Output Voltage: 12VDC - nominal 13.8V

24VDC - nominal 27.6V

Output Current: 1A @ 12VDC

1A @ 24VDC

Fuse: Self Resetting

(remove load or input power)

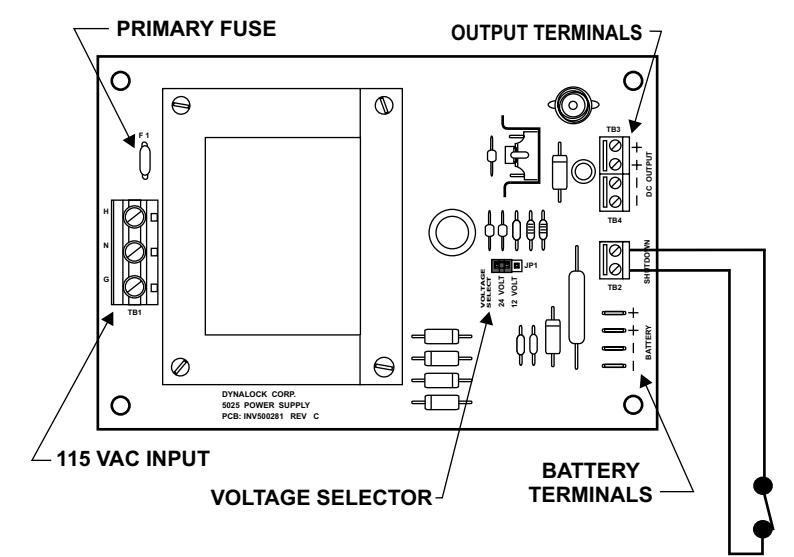

REMOTE CONTROL WIRING

CONNECT TO NORMALLY CLOSED DRY CONTACTS TO SHUT DOWN POWER SUPPLY IN CASE OF EMERGENCY

Accessories

• 6000 Series Exit Controls

Push-buttons in a variety of switching configurations and exit sensor bars.

• 7000 Series Access Controls

Keyswitches accept most mortise cylinders for controlled access. Rugged digital entry keypads.

8000 Series Consoles

Desktop, slope front and rack mount fabricated to customer specifications.

Lock Capacity

OUTPUT VOLTAGE	MAX LOAD	LOCKING DEVICE
		1300	2511	2011/3000	2268-10	3006	3101B
12VDC	1A	1	1	2	1	1	1
24VDC	1A	2	3	4	2	3	1

Recommended Wire Gauge

Lo	Load Current At 12V
WIRE RUN (FT)	0.25A	0.5A	0.75A	1A
100	18	18	16	14
150	18	16	14	12
200	16	14	12	12
250	16	14	12	-
300	16	12	12	-
400	14	12	-	-
500	14	-	-	-
750	12	-	-	-
1000	-	-	-	-

Load Current At 24V
WIRE RUN (FT)	0.25A	0.5A	0.75A	1A
100	18	18	18	18
150	18	18	16	16
200	18	18	16	14
250	18	16	14	14
300	18	16	14	12
400	18	14	12	12
500	16	14	12	-
750	14	12	-	-
1000	14	-	-	-
