5000 Series

Open Power Supplies

LIFE SAFETY PRODUCTS

Electromagnetic Locks | Controls | Power Supplies

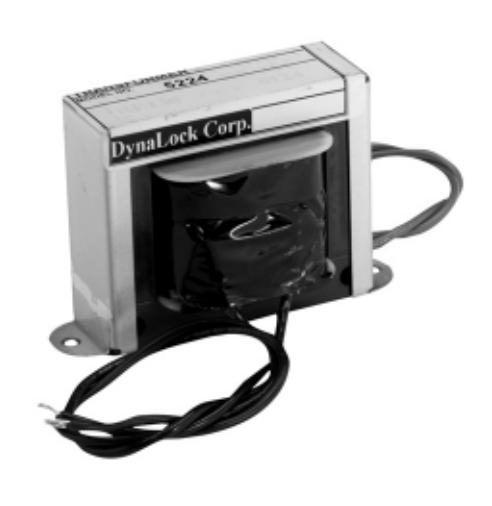

5200 Series Open Transformers 5300 Series Plug-In Transformers

Description

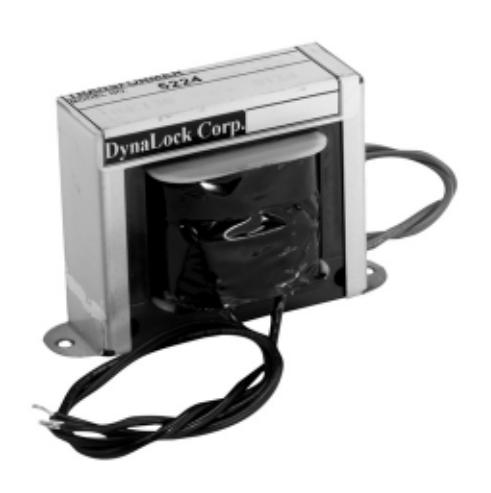

5200 Series Open Transformers are specified where an economical source of low voltage power is required.

All models feature 120VAC/60Hz input primaries and are furnished with 10" color-coded flying leads. Individual models are available with secondary outputs in 12 or 24 volts AC or DC (with built-in rectifier bridge) and are rated at 2 Amps maximum.

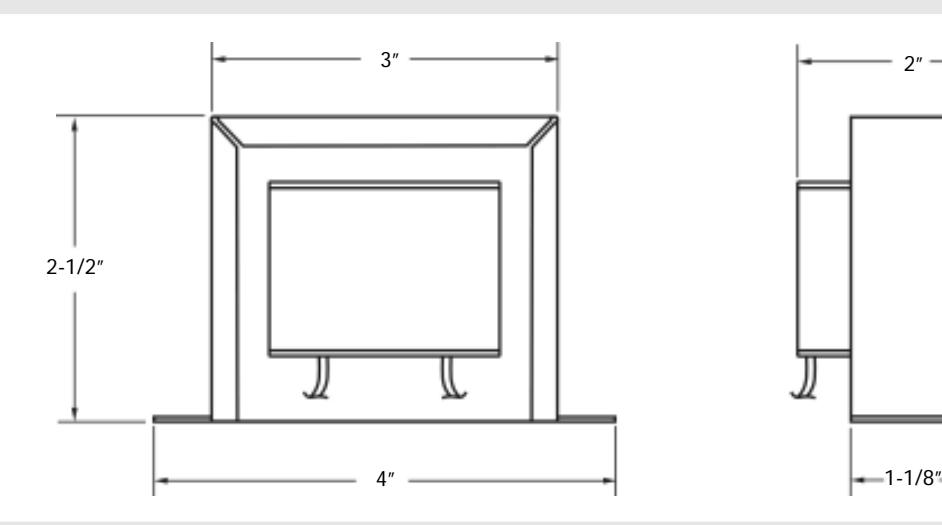

Dimensions

Specifications

M O D EL	O U T PU T V O LT A G E	M A X LO A D	S G O O LO C G IC PO C C IN LE D R K IN D EV E W ER A PA IT Y
			13 00	25 11	/3 20 11 00 0	2 26 8- 10	1/ 3 10 31 0 1B
52 12	12 V A C	2 A m ps	2	3	4	2	2
52 13	C 12 V D	2 A m ps	2	3	4	2	2
52 24	24 V A C	2 A m ps	4	7	7	5	3
52 25	24 V D C	2 A m ps	4	7	7	5	3

5200 Series Open Transformers 5300 Series Plug-In Transformers

Description

5300 Series Open Transformers are specified where an economical source of low voltage power is required, when a standard 120 VAC convenience outlet is in close proximity to the device to be powered.

Individual models are available with secondary outputs in 12 or 24 volts AC or DC (with builtin rectifier bridge) and are rated at 3 Amps maximum. Screw terminals are provided for field hook-up.

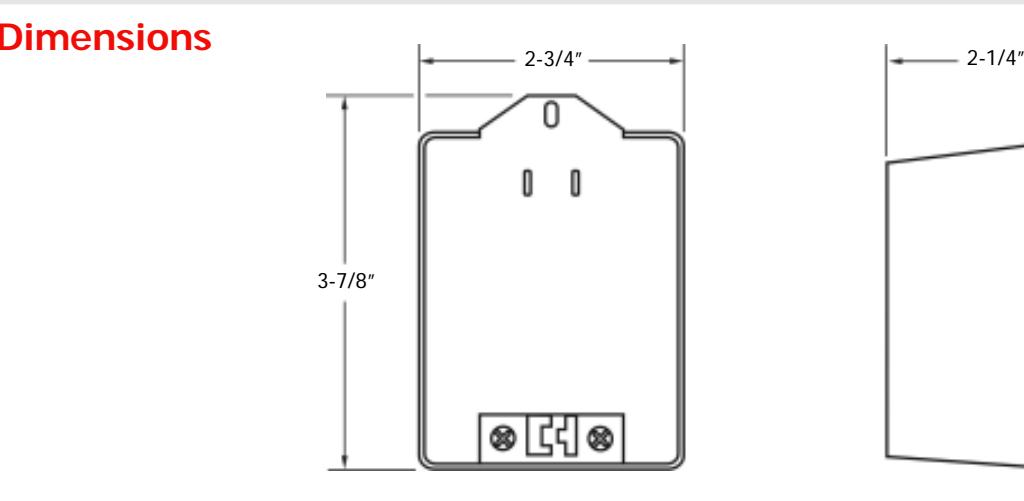

Specifications

M O D EL	O U T PU T V O LT A G E	M A X LO A D	S G O O LO C G IC PO C C IN LE D R K IN D EV E W ER A PA IT Y
			13 00	2 51 1	/3 2 0 11 00 0	2 26 8- 10	1/ 3 10 31 0 1B
53 12	12 V A C	3 A m ps	3	5	6	4	3
53 13	12 V D C	3 A m ps	3	5	6	4	3
53 24	24 V A C	1. 5 A m ps	3	5	6	4	2
53 25	24 V D C	1. 5 A m ps	3	5	6	4	2

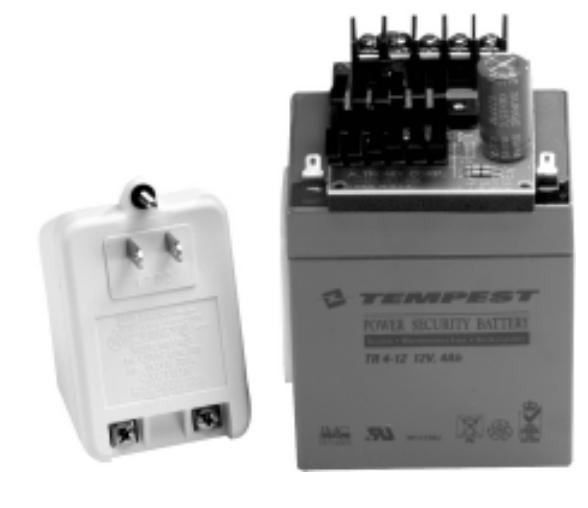

5400 Series Battery Back-Up Supply

Description

The 5400 Power Supply is a self-contained, 12VDC/1 Amp power system for a single electric lock equipped door, featuring standard battery back-up. The 5400 is comprised of three components - a plug-in transformer, battery charger module and 12V/4AH rechargeable battery.

The 5400 provides a 1 Amp continuous output at 12VDC with automatic switchover to battery upon loss of AC input power. A built-in charging circuit maintains and recharges the battery for uninterrupted security during temporary line power outages.

Specifications

CHARGER MODULE

Dimensions: 3.6"L x 2.1"W x 1.5"H

Output Capacity: 1 Amp @ 12VDC

Battery Fuse: 5 Amp / 250VAC

TRANSFORMER

Dimensions: 3.5"H x 2.2"W x 2"D

Input: 120VAC / 60Hz @ 0.23 Amps

Output: 16VAC / 20VA Class 2 Plugs into any standard duplex outlet.

BATTERY

Dimensions: 4"L x 3.5"W x 3"D

Size Rating: 12VDC / 4 AH

Type: Sealed Lead Acid

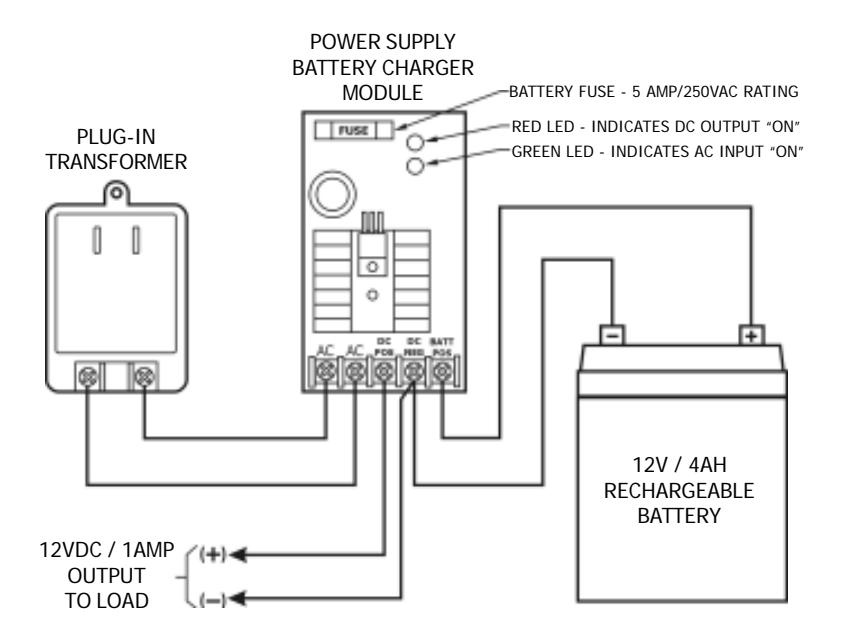

Wiring Information
