4000 Series

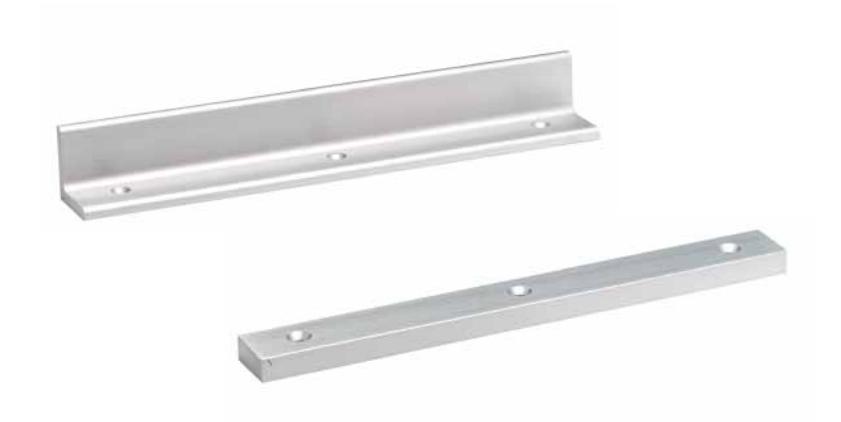

Mounting Accessories
- Angle Brackets
- Filler Plates
- Spacer Plates
- Special Finishes
- Custom Lengths

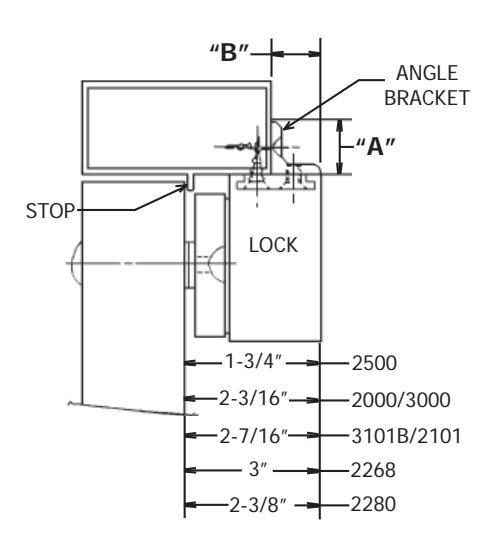

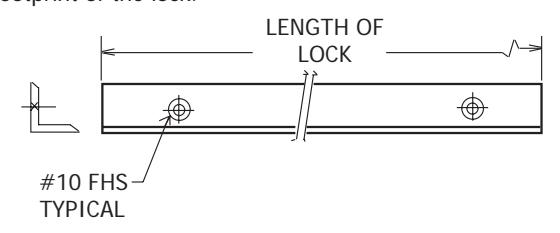

Angle Brackets
Angle Brackets facilitate the mounting of electromagnetic locks by extending the frame header area to provide an adequate mounting surface. Where required, select an Angle Bracket appropriate to accommodate the mounting footprint of the lock.
| SIZE A x B |
2000/3000/3101B
(11") |
2022/3002/3121B
(22") |
2268-10/15
(14") |
2268-20
(25") |
2511
(10-1/2") |
2522
(21") |
2585
(8-1/2") |
2280
(12-3/4") |
2282
(25-1/2") |
|---|---|---|---|---|---|---|---|---|---|
| 1 x 1 | #4511 | #4522 | #4514 | #4525 | #4510 | #4520 | #4585 | #4580 | #4582 |
| 1-1/2 x 1-1/2 | #4611 | #4622 | #4614 | #4625 | #4610 | #4620 | #4685 | #4680 | #4682 |
| 1-1/2 x 2 | #4711 | #4722 | #4714 | #4725 | #4710 | #4720 | #4785 | #4780 | #4782 |
E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s
4000 Series Mounting Accessories

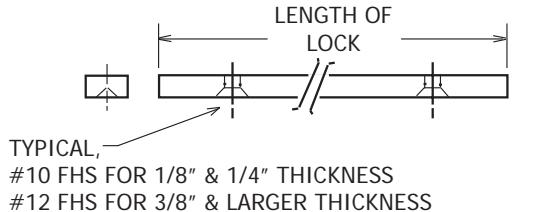

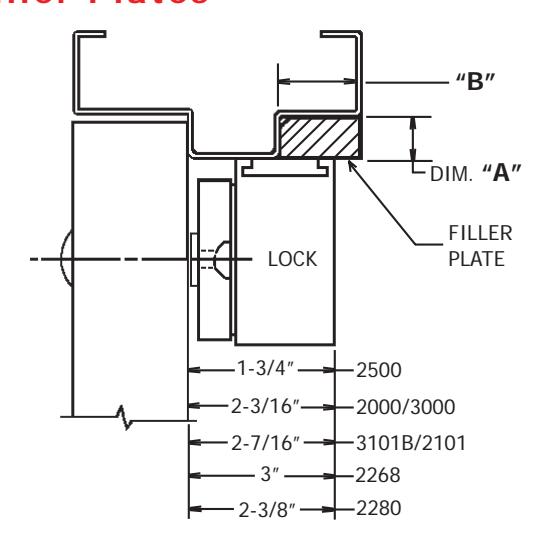

Filler Plates
Filler plates facilitate the mounting of electromagnetic locks by extending the width of the door stop to provide an adequate mounting surface. Where required, select a Filler Plate equal in thickness to the height of the door stop (i.e. Dim. "A").
| SIZE A x B |
2000/3000/3101B
(11") |
2022/3002/3121B (22") | 2268-10/15 (14") | 2268-20 (25") | 2511 (10-1/2") | 2522 (21") | 2585 (8-1/2") | 2280 (12-3/4") | 2282 (25-1/2") |
|---|---|---|---|---|---|---|---|---|---|
| 1/8 x 1-1/4 | #4011 | #4022 | #4014 | #4025 | #4010 | #4020 | #4085 | #4080 | #4082 |
| 1/4 x 1-1/4 | #4111 | #4122 | #4114 | #4125 | #4110 | #4120 | #4185 | #4180 | #4182 |
| 3/8 x 1-1/4 | #4211 | #4222 | #4214 | #4225 | #4210 | #4220 | #4285 | #4280 | #4282 |
| 1/2 x 1-1/4 | #4311 | #4322 | #4314 | #4325 | #4310 | #4320 | #4385 | #4380 | #4382 |
| 5/8 x 1-1/4 | #4411 | #4422 | #4414 | #4425 | #4410 | #4420 | #4485 | #4480 | #4482 |
| 3/4 x 1-1/4 | #4441 | #4442 | #4415 | #4426 | #4430 | #4450 | #4486 | #4448 | #4449 |

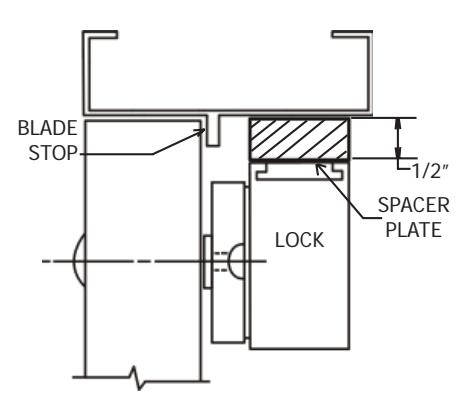

Spacer Plates
Spacer plates facilitate the mounting of electromagnetic locks by lowering the entire assembly 1/2", to clear a blade stop. All plates are pre-drilled for the corresponding lock series.
COMES WITH CORRESPONDING MOUNTING HARDWARE. HOUSING SCREWS MOUNT THROUGH SPACER PLATE INTO FRAME.
| 2000/3000/3101B | 2511 | 2522 | 2585 | 2268-10/15 | 2268-20 | 2280 | 2282 |
|---|---|---|---|---|---|---|---|
| #4301 | #4302 | #4303 | #4304 | #4305 | #4306 | #4307 | #4308 |
NOTE: For 2022, 3002, & 3121B order 2 Spacer Plates for each lock. All Spacer Plates are 1/2" thick and the same depth and length as the lock. Proper hardware packs included.
