INSTALLATION DESCRIPTION
The Series 3001xTJ31 is a 700 pound holding force top jamb-mounted electromagnetic lock designed to secure a double-inswinging pair of doors. The lock requires both installation procedures as described herein and in the separate wiring instructions included.

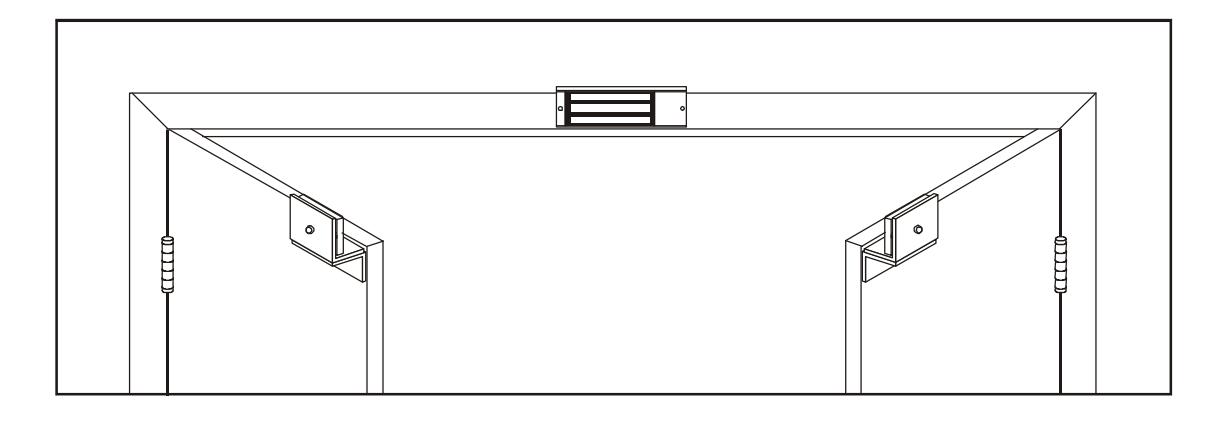

Typical installations of the lock on double-inswing doors:
HANDLING
Care must be taken that the lock face and armature face are kept free of dirt, rust, paint, or any other obstruction which may interfere with the lock and armature making good contact. These faces may be cleaned with a nonabrasive pad and wiped with an oil dampened cloth.
MECHANICAL INSTALLATION
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame header. The door mounted armature is supplied with an adjustable mounting bracket and hardware that allows it to pivot slightly to compensate for reasonable misalignment.
ELECTRICAL INSTALLATION
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate wiring instructions included for further information.
705 Emmett Street ? Bristol, CT 06010 Ph/ 860.582.4761 ? Fx/ 860.585.0338
SERIES 3001xTJ31 ELECTROMAGNETIC LOCK INSTALLATION INSTRUCTIONS

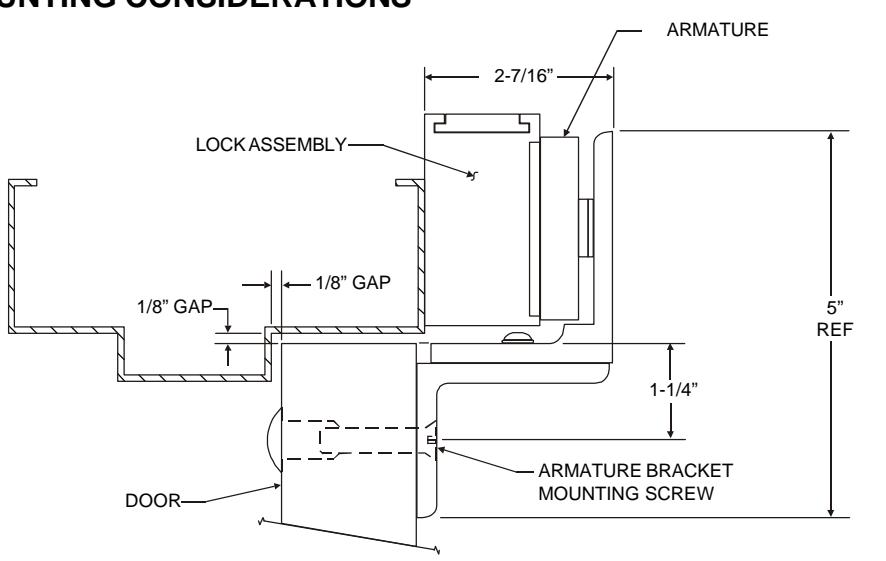

MOUNTING CONSIDERATIONS
- Individual door and frame conditions may vary. Dimensions shown at right are for a typical hollow metal door and frame. 1.
- The lock assembly should be mounted to the center of the frame header for maximum performance. Verify that there is proper clearance for the lock assembly at the planned mounting location. 2.
INSTALL THE LOCK ASSEMBLY

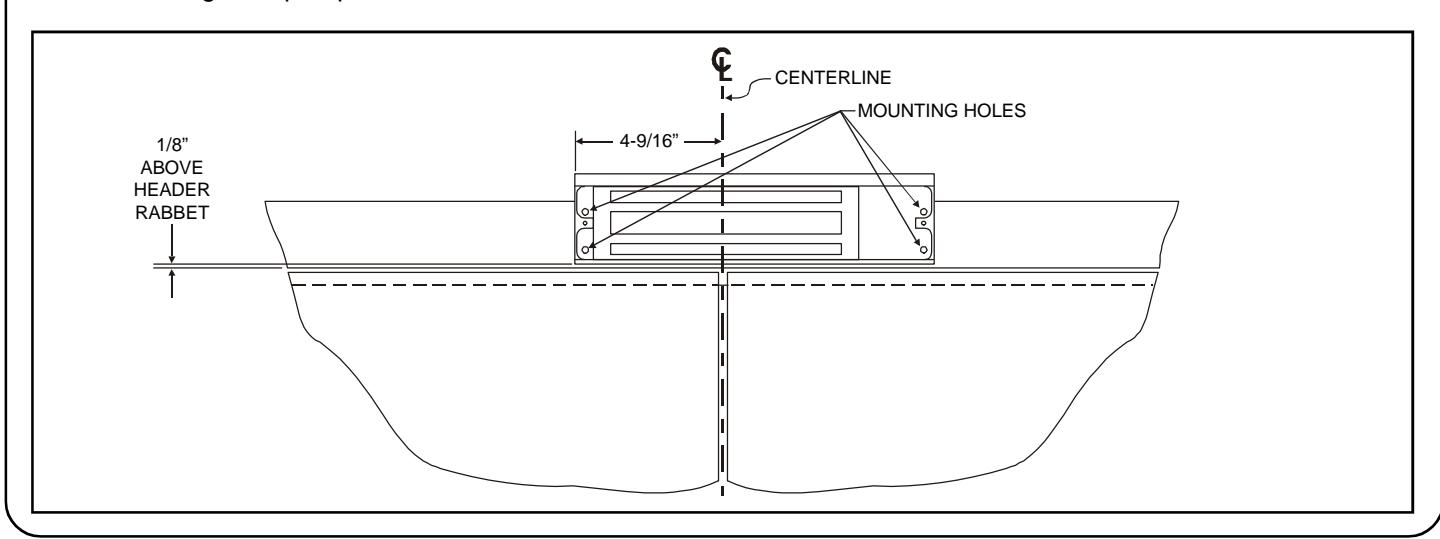

- Drill out the four dimpled mounting hole locations inside the back of the lock housing using a 3/16" drill. Position the lock assembly on the face of the frame header, on the pull side of the door, as shown. Locate and mark the centers of the four mounting holes. 1.
- Drill the marked holes in the face of the frame header: a. Four (4) 1/8" dia. slotted mounting holes, 1" deep. 2.

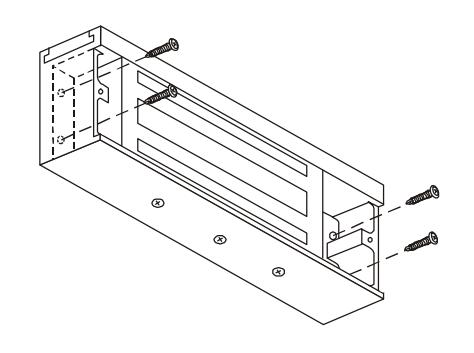

Attach the lock mounting bracket to the frame header using
four (4) #10 x 1" pan head Tek screws. Firmly tighten the screws using a #2 phillips screwdriver. 3.

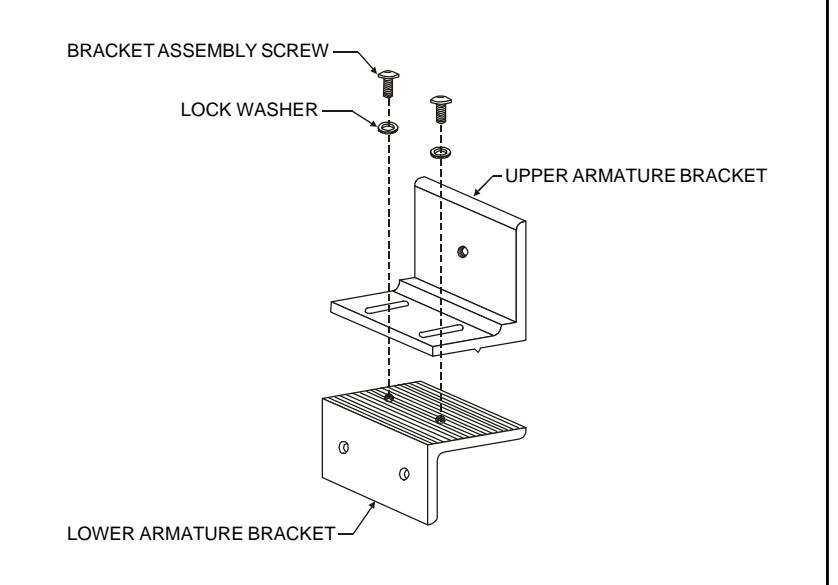

ASSEMBLE THE ARMATURE MOUNTING BRACKET
Using the two lock mounting screws and brass spacers attach the lock assembly to the lock mounting bracket as shown. The lock assembly will need to be removed later to add the remaining bracket mounting screws, after all hardware adjustments have been made.
Firmly tighten the mounting screws with a 3/16" hex wrench.

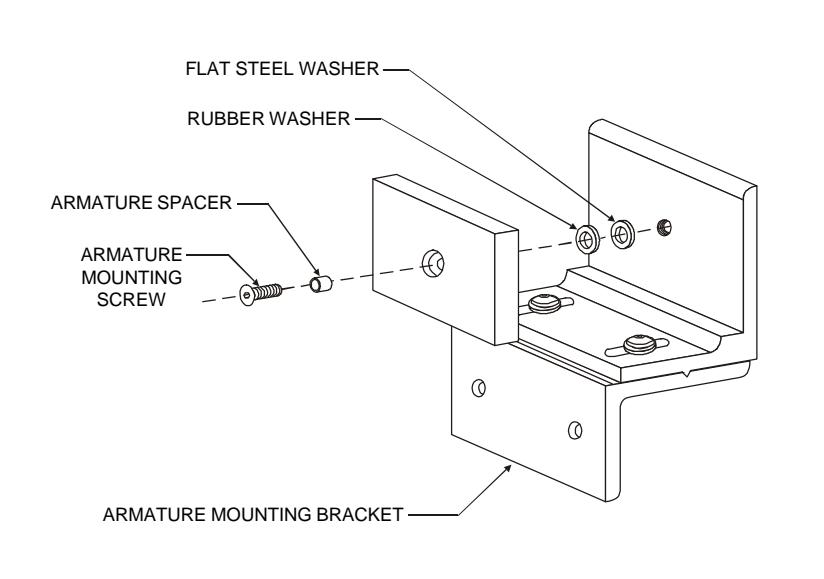

ATTACH THE ARMATURES TO THE ARMATURE MOUNTING BRACKETS
Locate the armature mounting hardware from the hardware kit and attach the armatures to the armature mounting bracket as shown. Firmly tighten the mounting screws with a 3/16" hex wrench.
Failure to properly secure the armatures to the brackets could result in serious injury or possible security breach.
INSTALL THE ARMATURE MOUNTING BRACKETS

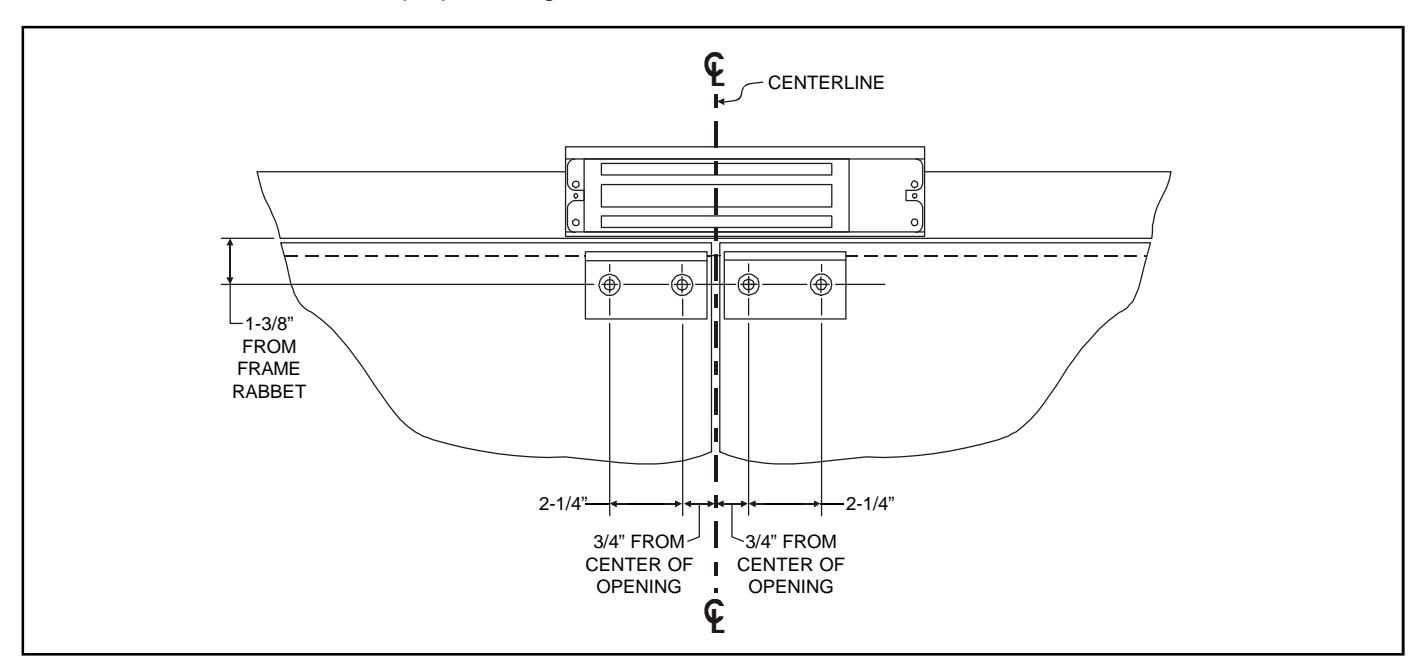

Use the figure below to identify and mark the locations of the armature mounting bracket screw holes on each door leaf. Refer to door and frame prep drawing #301095 for further information. 1.

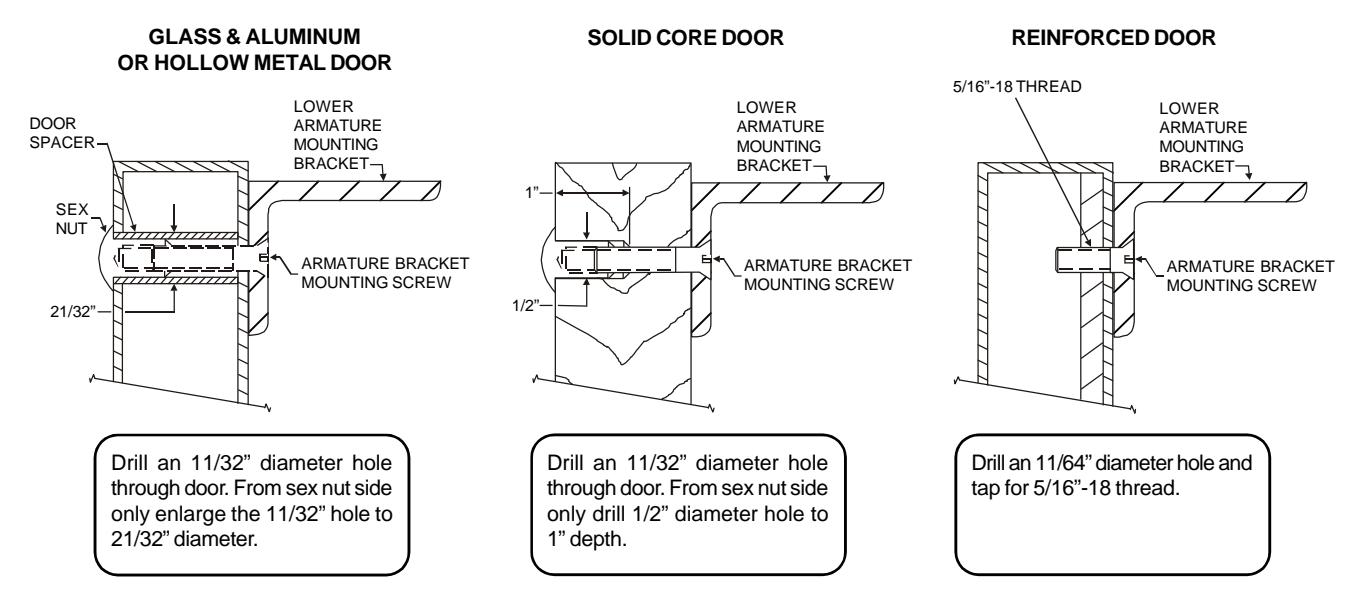

From the illustrations below select the one that resembles your door type and follow the instructions for drilling the two (2) armature mounting bracket screw holes on each door leaf. 2.
Mount the armature and mounting bracket assemblies to each door leaf using the appropriate hardware for you door type. Frimly tighten the mounting screws with a 3/16" hex wrench. 3.

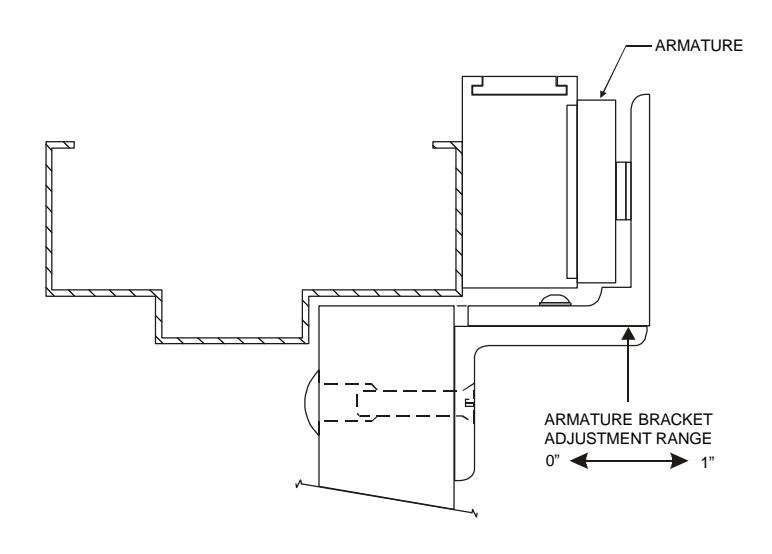

ARMATURE ADJUSTMENT

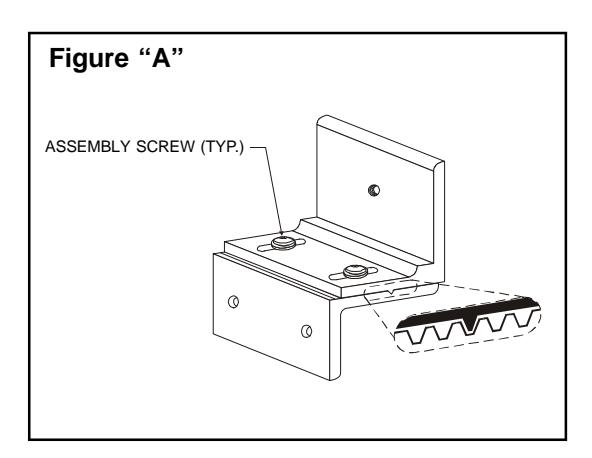

- Using a 5/32" hex wrench temporarily loosen the armature bracket assembly screws roughly 1-1/2 turns to allow the upper armature bracket to move in and out freely (Ref. Figure "A"). 1.
- Close and latch the door. The mating surfaces of the lock and armatures should fully contact each other. If necesssary slide each armature in or out to ensure full contact is made with the lock while still allowing the door to properly close and latch. 2.
- When the desired adjustment is acheived slowly open each door, taking care to maintain the position of the armature. Firmly tighten the armature bracket assembly screws with a 5/32" hex wrench, making sure that the locking ribs on the upper and lower bracket halves properly mesh (Ref. Figure "A"). 3.
EXPLODED PARTS VIEW LEGEND
| ITEM | DESCRIPTION | PART NO. |
|---|---|---|
| 1 | Lock Assembly | Consult Factory |
| 2 | Armature | 300013 |
| 3 | Upper Armature Bracket | 300783 |
| 4 | Lower Armature Bracket | 300782 |
| 5 | Access Cover / Board Assy. | 300906 |
| 6 | Access Cover Screw | 300608 |
| 7 | End Cover | 300010 |
| ITEM | DESCRIPTION | PART NO. |
|---|---|---|
| 8 | Armature Bracket Assy. Screw |
Hardware Kit
P/N 301096 |
| 9 | Lock Washer | |
| 10 | Lock Mounting Screw | |
| 11 | Armature Mounting Screw | |
| 12 | Armature Spacer | |
| 13 | Rubber Washer | |
| 14 | Flat Steel Washer | |
| 15 | Sex Nut | |
| 16 | Door Spacer | |
| 17 | Armature Bracket Mtg. Screw |
Note: Refer to Page 7 for parts locations.
Note: Refer to Page 6 for parts legend.
