DynaLock 3000xTJ30 Series – Templates

REVISED TEMPLA T E FOR USE WITH NEW PLASTIC ARMATURE HOUSINGS ONLY

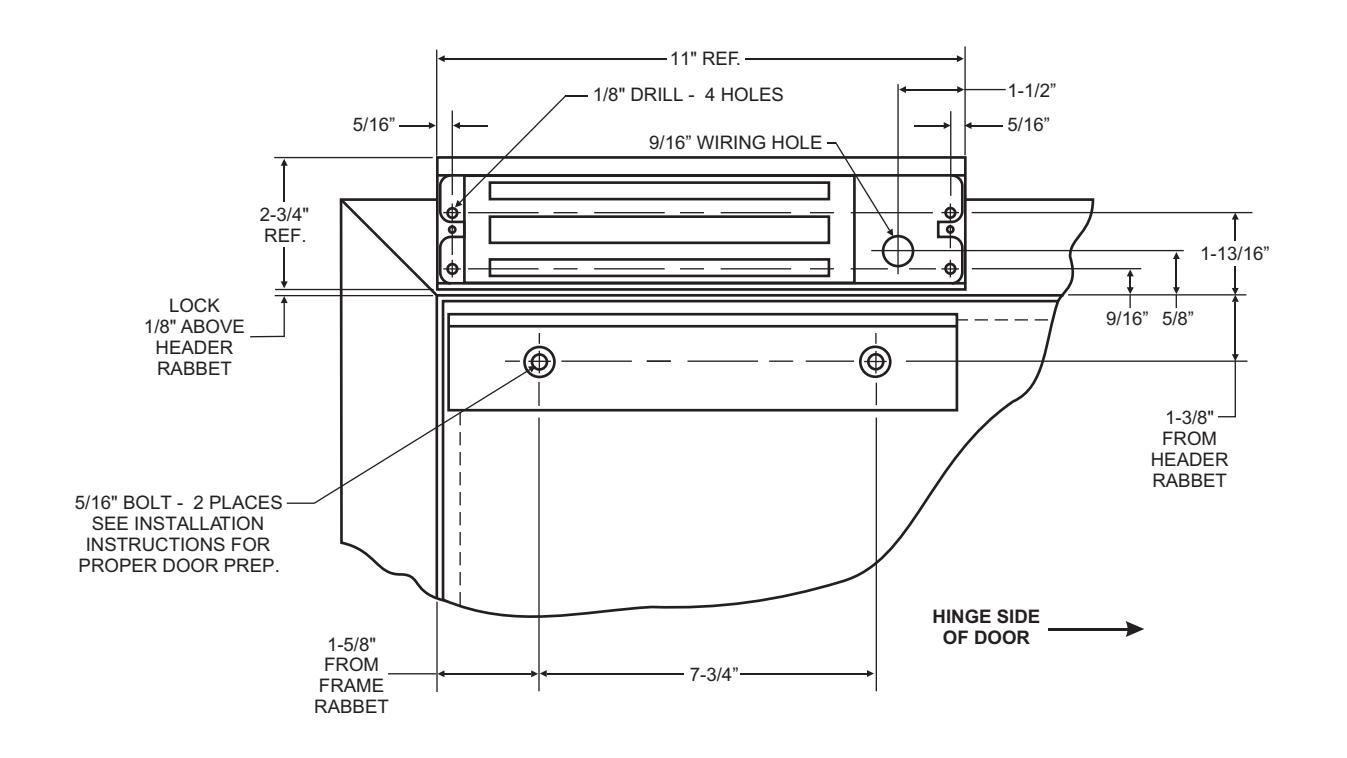

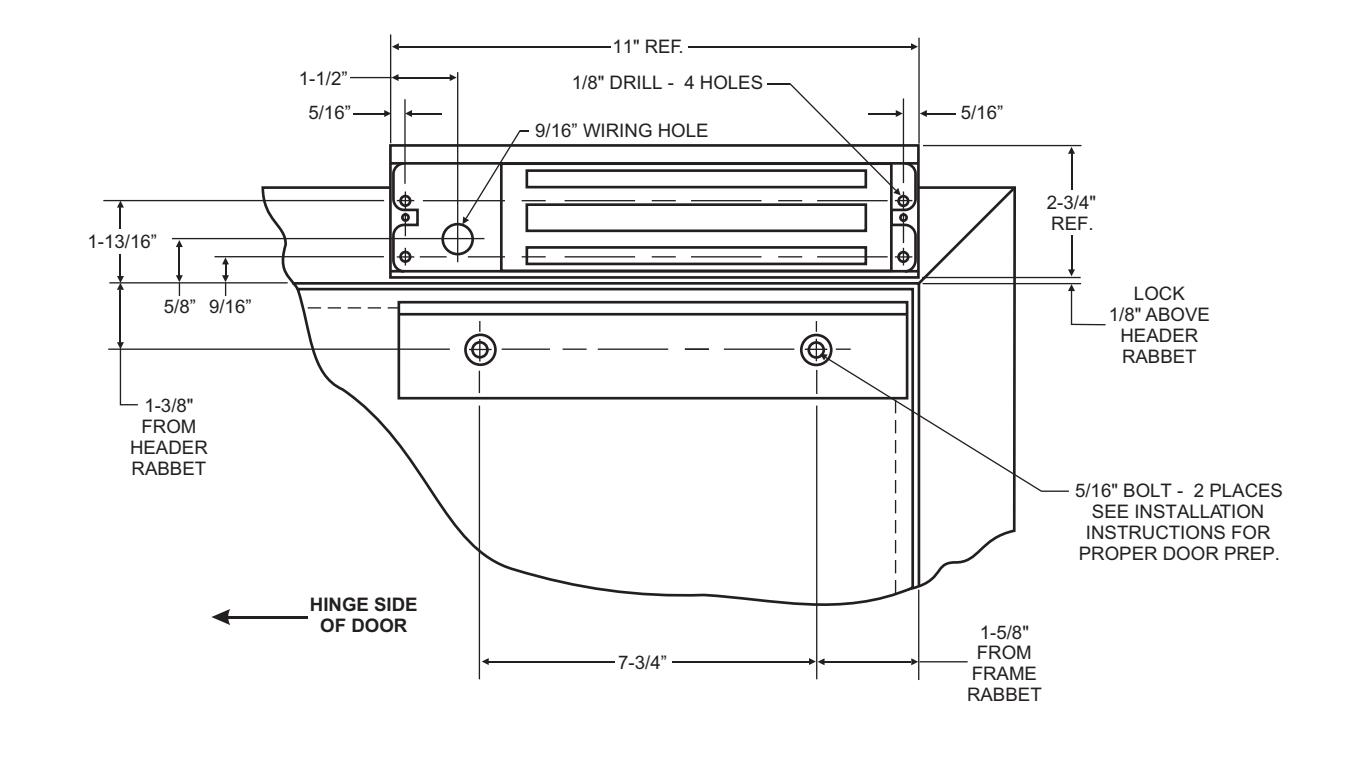

LEFT HAND DOOR PREP RIGHT HAND DOOR PREP

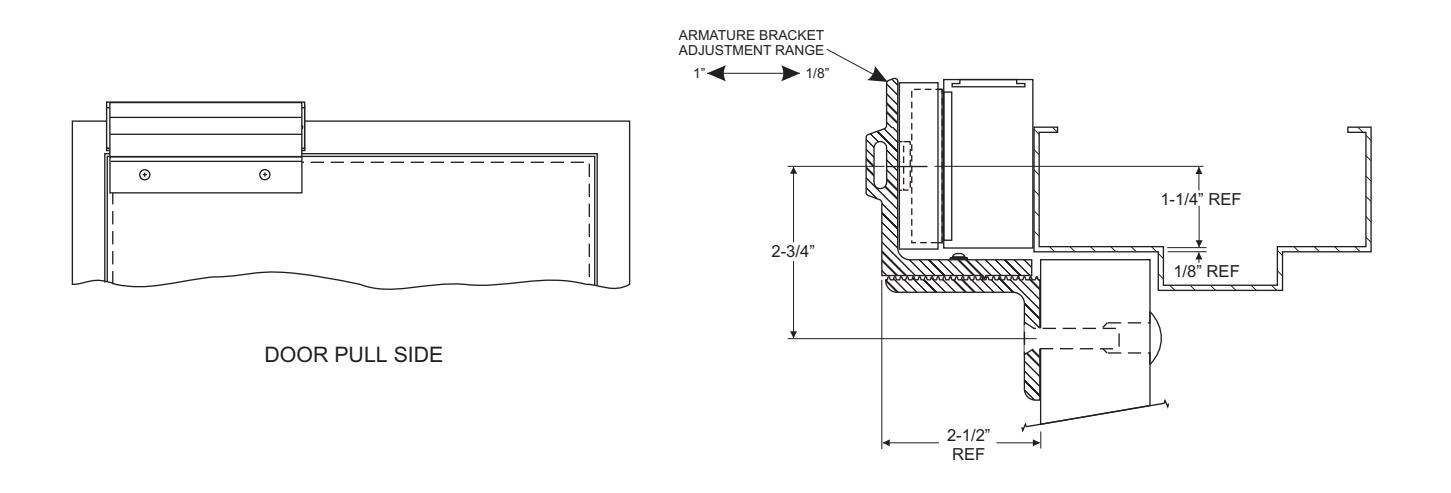

DOOR PULL SIDE ARMATURE BRACKET ADJUSTMENT RANGE 1/8" 1" 2-3/4" 2-1/2" REF 1-1/4" REF 1/8" REF

NOTE:

ABOVE INFORMATION IS FURNISHED TO IDENTIFY HOLE LOCATIONS. SEE INSTALLATION INSTRUCTIONS FOR DOOR AND FRAME PREPARATION.

Dyna Lock

DynaLock Corporation 705 Emmett Street Bristol, CT 06010 Tel: (860) 582-4761 Fax: (860) 585-0338

Template Drawing

DRWN: Date: CHK'D: APPV'D: Date: Date: Date: Title: MJL 02/13/07 JAS 02/27/07 CHK'D:

3000xTJ30 SINGLE INSWING ELECTROMAGNETIC LOCK TEMPLATE DRAWING

Page Of ^{1 1} B

Scale: Size: Drawing #: 301093

REV: D
